Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R76QF082050H0JCAP FILM 820PF 5% 1KVDC RADIAL |
1,552 | - |
|
Datasheet | Radial | 820 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.329 Ohms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R463I26805001KCAP FILM 0.068UF 10% 630VDC RAD |
1,150 | - |
|
Datasheet | Radial | 0.068 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R75PF156050H0JCAP FILM 5600PF 5% 630VDC RADIAL |
5,352 | - |
|
Datasheet | Radial | 5600 pF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 142.1 mOhms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R76MF22705050JFILM, RADIAL, PULSE, DOUBLE META |
5,017 | - |
|
Datasheet | Radial | 0.027 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 24 mOhms | -55°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R76QF122050H0JCAP FILM 2200PF 5% 1KVDC RADIAL |
2,563 | - |
|
Datasheet | Radial | 2200 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 289 mOhms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R46KI21005001KCAP FILM 10000PF 10% 560VDC RAD |
1,980 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R46KI21000001K1CAP FILM 10000PF 10% 560VDC RAD |
1,702 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R82MC2470DQ50JCAP FILM 0.047UF 5% 400VDC RAD |
6,956 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
MMK5224J63J01L4BULKCAP FILM 0.22UF 5% 63VDC RADIAL |
5,501 | - |
|
Datasheet | Radial | 0.22 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|

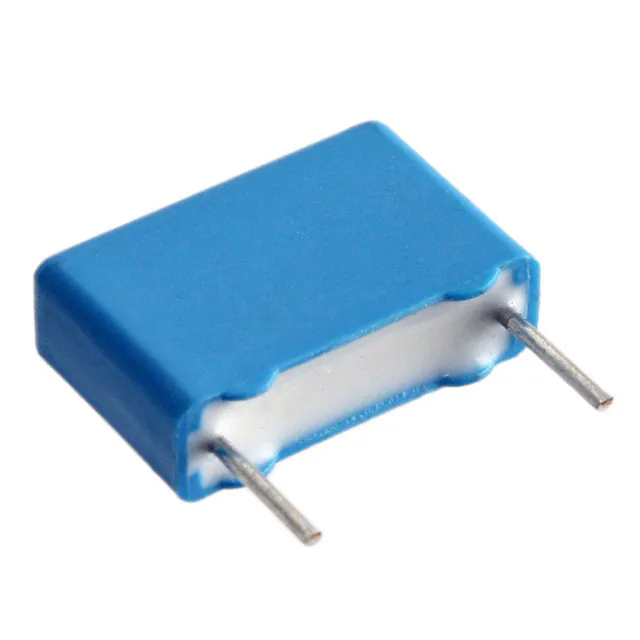

PHE450PA4100JR05CAP FILM 1000PF 5% 1KVDC RADIAL |
5,473 | - |
|
Datasheet | Radial | 410 pF | ±5% | 375V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
