Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CB047D0474JBCCAP FILM 0.47UF 5% 63VDC 2220 |
7,022 | - |
|
Datasheet | 2220 (5750 Metric) | 0.47 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.228" L x 0.197" W (5.80mm x 5.00mm) | 0.157" (4.00mm) | Solder Pads | - | General Purpose | - | - |
|
CB057D0105JBCCAP FILM 1UF 5% 63VDC 2824 |
1,389 | - |
|
Datasheet | 2824 (7260 Metric) | 1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.185" (4.70mm) | - | - | General Purpose | - | Low ESR, Low ESL |
|
CB162D0225JBCCAP FILM 2.2UF 5% 63VDC 4030 |
1,901 | - |
|
Datasheet | 4030 (10276 Metric) | 2.2 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.413" L x 0.299" W (10.50mm x 7.60mm) | 0.177" (4.50mm) | Solder Pads | - | General Purpose | - | High Temperature |
|

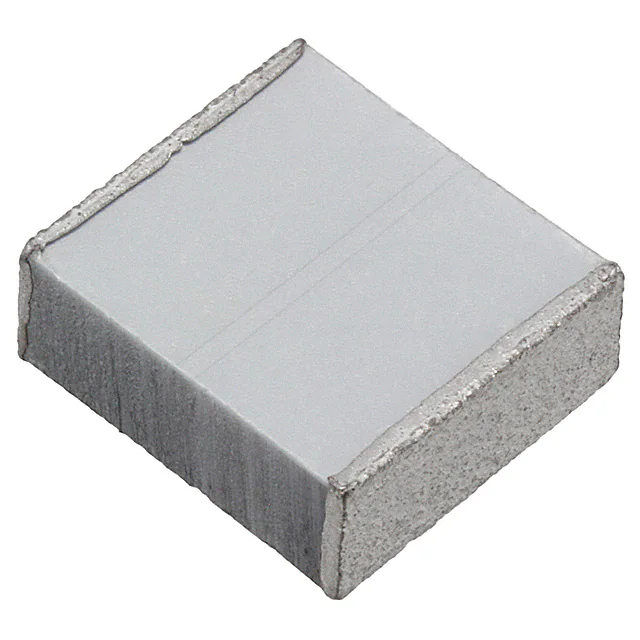

CB182G0105JBCCAP FILM 1UF 5% 250VDC 6054 |
698 | - |
|
Datasheet | 6054 (153137 Metric) | 1 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.602" L x 0.539" W (15.30mm x 13.70mm) | 0.236" (6.00mm) | Solder Pads | - | General Purpose | - | - |
|

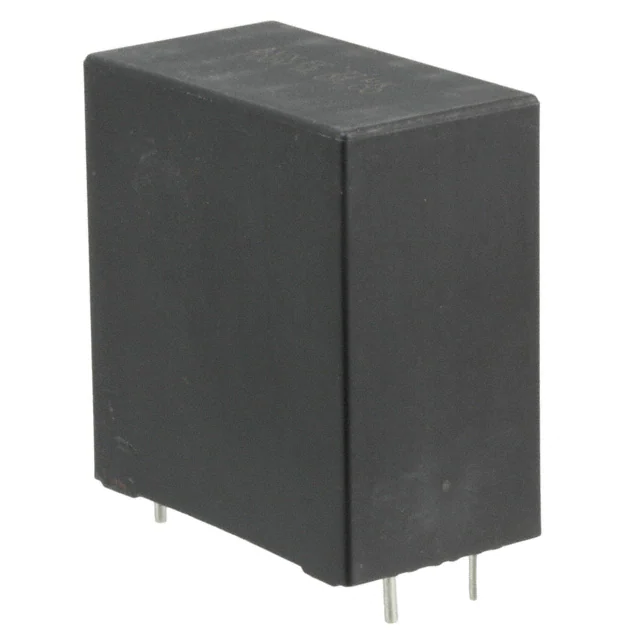

FE37L6L0106KACAP FILM 10UF 10% 1.1KVDC RADIAL |
169 | - |
|
Datasheet | Radial | 10 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 8.5 mOhms | -40°C ~ 100°C | Through Hole | 1.673" L x 0.945" W (42.50mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
|
CB182K0224KBCCAP FILM 0.22UF 10% 630VDC 6054 |
2,230 | - |
|
Datasheet | 6054 (153137 Metric) | 0.22 µF | ±10% | 250V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.602" L x 0.539" W (15.30mm x 13.70mm) | 0.200" (5.08mm) | - | - | General Purpose | - | Low ESR, Low ESL |
|
FFB26C0275K--CAP FILM 2.7UF 10% 900VDC RADIAL |
260 | - |
|
Datasheet | Radial | 2.7 µF | ±10% | 150V | 900V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.575" W (31.10mm x 14.60mm) | 1.012" (25.70mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
FFB46J0106K--CAP FILM 10UF 10% 525VDC RADIAL |
280 | - |
|
Datasheet | Radial | 10 µF | ±10% | 105V | 525V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.819" W (31.10mm x 20.80mm) | 1.232" (31.30mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
FFB56C0685K--CAP FILM 6.8UF 10% 900VDC RADIAL |
3,159 | - |
|
Datasheet | Radial | 6.8 µF | ±10% | 150V | 900V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
FFV34E0107K--CAP FILM 100UF 10% 100VDC RADIAL |
164 | - |
|
Datasheet | Radial - 4 Leads | 100 µF | ±10% | 60V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 1.575" (40.00mm) | PC Pins | 0.984" (25.00mm) | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
