Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CB052D0105JBCCAP FILM 1UF 5% 63VDC 2824 |
4,205 | - |
|
Datasheet | 2824 (7260 Metric) | 1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.146" (3.70mm) | Solder Pads | - | General Purpose | - | - |
|
FE37F68A0156KAFILM CAPACITORS 700V 15UF 10% ES |
112 | - |
|
Datasheet | Radial - 4 Leads | 15 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 7.6 mOhms | -40°C ~ 125°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.606" (40.80mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|

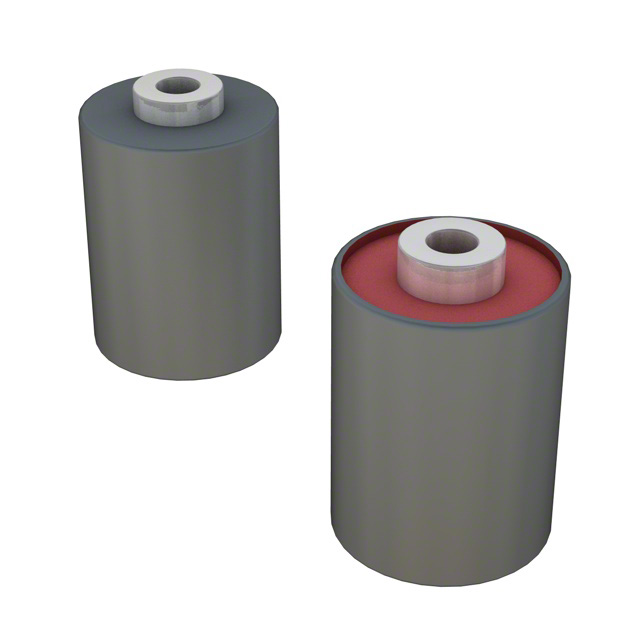

FPG66Y0124J--CAP FILM 0.12UF 5% 3KVDC AXIAL |
48 | - |
|
Datasheet | Axial, Can - Screw Terminals | 0.12 µF | ±5% | 1400V (1.4kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis Mount | 1.575" Dia (40.00mm) | 2.461" (62.50mm) | Threaded, Female | - | General Purpose | - | - |
|
CB017D0102JBACAP FILM 1000PF 5% 63VDC 1206 |
7,000 | - |
|
Datasheet | 1206 (3216 Metric) | 1000 pF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.045" (1.15mm) | Solder Pads | - | General Purpose | - | - |
|
|
CB172K0104KBCCAP FILM |
700 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

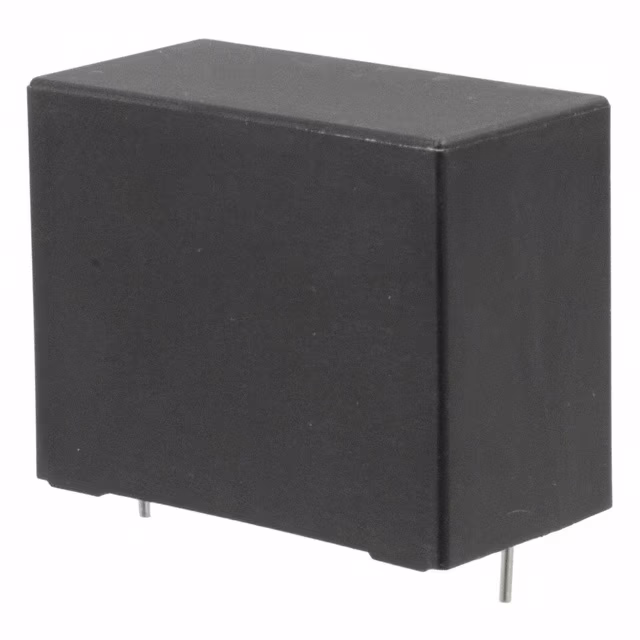

FB37H6C0106KCCAP FILM 10UF 10% 900VDC RADIAL |
9,957 | - |
|
Datasheet | Radial | 10 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 100°C | Through Hole | 1.673" L x 0.866" W (42.50mm x 22.00mm) | 1.319" (33.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
FE37L6A0226KACAP FILM 22UF 10% 700VDC RADIAL |
5,722 | - |
|
Datasheet | Radial - 4 Leads | 22 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 5.5 mOhms | -40°C ~ 100°C | Through Hole | 1.673" L x 0.945" W (42.50mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
|
FFVS6N0146KJECAP 2000V 10% 14UF |
55 | - |
|
Datasheet | Radial, Can | 14 µF | ±10% | - | 1900V (1.9kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Chassis Mount | 3.327" Dia (84.50mm) | 1.614" (41.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
|
FSB16U0154J--FSB16U0154J-- |
196 | - |
|
Datasheet | Radial | 0.15 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | Snubber | - | - |
|

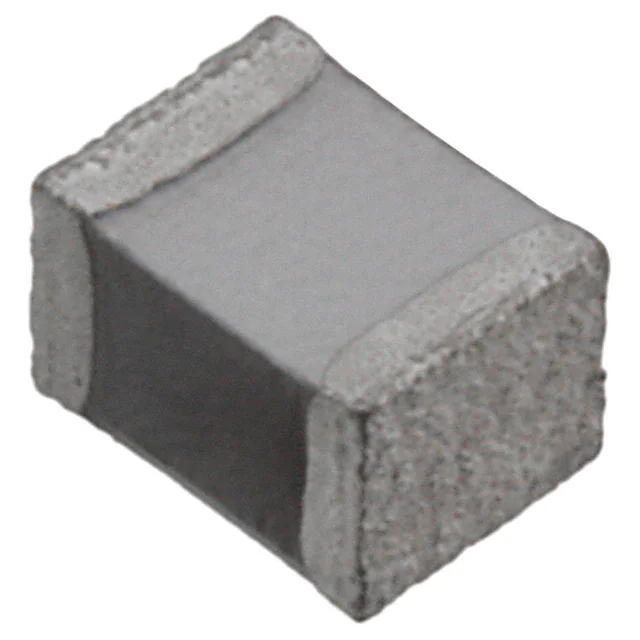

CB182E0475KBCCAP FILM 4.7UF 10% 100VDC 6054 |
45 | - |
|
Datasheet | 6054 (153137 Metric) | 4.7 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.602" L x 0.539" W (15.30mm x 13.70mm) | - | Solder Pads | - | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
