Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-UAAF684S1CAP FILM 0.68UF 20% 275VAC RAD |
996 | - |
|
Datasheet | Radial | 0.68 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.689" (17.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
ECW-FE2J155QDCAP FILM 1.5UF 10% 630VDC RADIAL |
400 | - |
|
Datasheet | Radial | 1.5 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECH-U1H392GB5CAP FILM 3900PF 2% 50VDC 1206 |
581 | - |
|
Datasheet | 1206 (3216 Metric) | 3900 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
 Series.jpg "ECW-FE2J155J")
|
ECW-FE2J155JCAP FILM 1.5UF 5% 630VDC RADIAL |
284 | - |
|
Datasheet | Radial | 1.5 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-UAAV274T1CAP FILM 0.27UF 10% 310VAC RAD |
700 | - |
|
Datasheet | Radial | 0.27 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
ECQ-UAAV394R1CAP FILM 0.39UF 20% 310VAC RAD |
2,396 | - |
|
Datasheet | Radial | 0.39 µF | ±20% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|

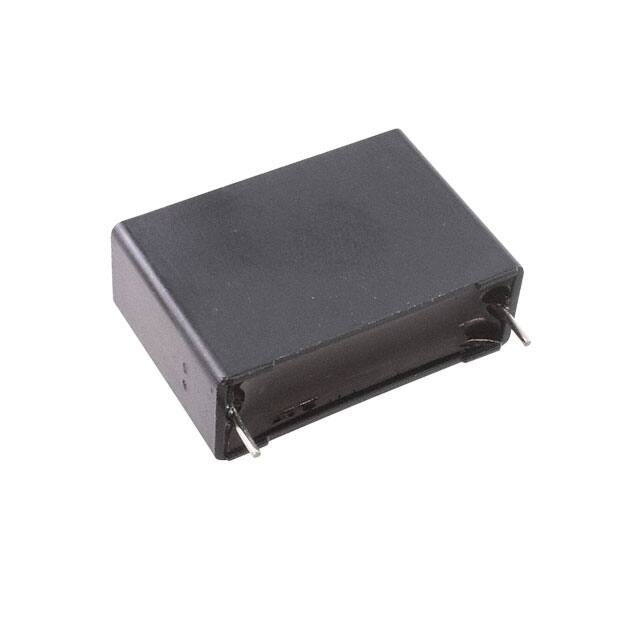

ECW-FE2W225QLCAP FILM 2.2UF 10% 450VDC RADIAL |
399 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-FE2J155P5CAP FILM 1.5UF 5% 630VDC RADIAL |
375 | - |
|
Datasheet | Radial | 1.5 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-UAAF684KACAP FILM 0.68UF 10% 275VAC RAD |
986 | - |
|
Datasheet | Radial | 0.68 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.689" (17.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
ECW-FG2J155KACAP FILM 1.5UF 10% 630VDC RADIAL |
559 | - |
|
Datasheet | Radial | 1.5 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
