Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-FG1B205JACAP FILM 2UF 5% 1.1KVDC RADIAL |
26 | - |
|
Datasheet | Radial | 2 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.472" W (31.50mm x 12.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
ECW-FG80305JCAP FILM 3.0UF 800VDC RADIAL |
63 | - |
|
Datasheet | Radial | 3 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.472" W (31.50mm x 12.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
|
ECW-FG1B305JACAP FILM 3UF 5% 1.1KVDC RADIAL |
89 | - |
|
Datasheet | Radial | 3 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.630" W (31.50mm x 16.00mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
|
ECW-FG1B405JCAP FILM 4UF 5% 1.1KVDC RADIAL |
88 | - |
|
Datasheet | Radial | 4 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
|
ECW-FG1B505JCAP FILM 5UF 5% 1.1KVDC RADIAL |
38 | - |
|
Datasheet | Radial | 5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.728" W (31.50mm x 18.50mm) | 1.398" (35.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
EZP-V60106LTBCAP FILM 10UF 10% 600V RADIAL |
31 | - |
|
Datasheet | Radial | 10 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 16.9 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.181" (30.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
DS441505-BACAP FILM 5UF 10% 440VAC CHAS MT |
55 | - |
|
Datasheet | Rectangular Box | 5 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.969" L x 1.051" W (50.00mm x 26.70mm) | 1.516" (38.50mm) | Quick Connect - 0.187" (4.7mm) | - | Motor Run | - | - |
|
|
EZP-V1B905MTBCAP FILM 9UF 10% 1100V RADIAL |
100 | - |
|
Datasheet | Radial - 4 Leads | 9 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 12.4 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.866" W (41.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|

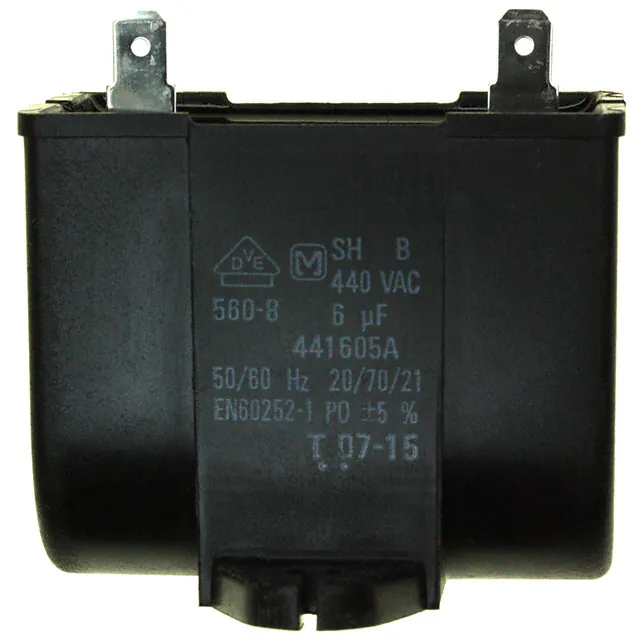

DS441605-BACAP FILM 6UF 10% 440VAC CHAS MT |
70 | - |
|
Datasheet | Rectangular Box | 6 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.969" L x 1.201" W (50.00mm x 30.50mm) | 1.654" (42.00mm) | Quick Connect - 0.187" (4.7mm) | - | Motor Run | - | - |
|
EZP-Q33146LTACAP FILM 14UF 5% 330VAC RADIAL |
63 | - |
|
Datasheet | Radial | 14 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | 7.1 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 1.398" W (42.50mm x 35.50mm) | 1.988" (50.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
