Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "ECH-U1H562GX5")
|
ECH-U1H562GX5CAP FILM 5600PF 2% 50VDC 1206 |
4,742 | - |
|
Datasheet | 1206 (3216 Metric) | 5600 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E2224JBCAP FILM 0.22UF 5% 250VDC RADIAL |
2,875 | - |
|
Datasheet | Radial | 0.22 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406" L x 0.213" W (10.30mm x 5.40mm) | 0.437" (11.10mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
ECW-HA3C472HCAP FILM 4700PF 3% 1.6KVDC RAD |
1,976 | - |
|
Datasheet | Radial | 4700 pF | ±3% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701" L x 0.252" W (17.80mm x 6.40mm) | 0.358" (9.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|

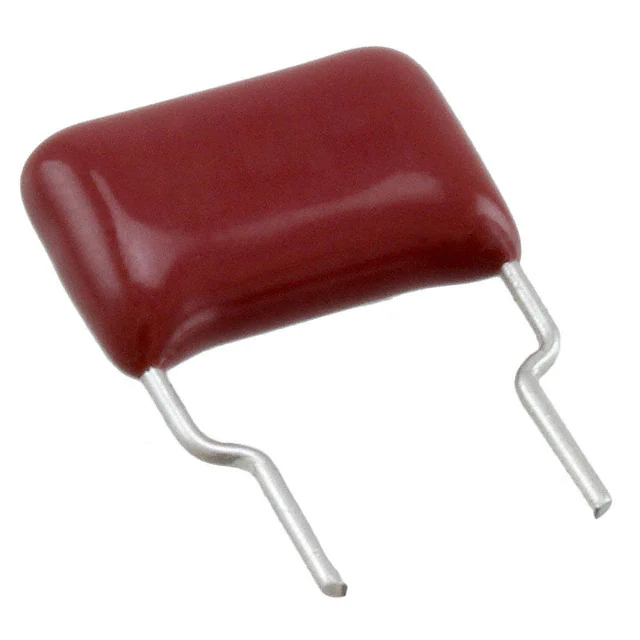

ECW-FD2W104J4CAP FILM 0.1UF 5% 450VDC RADIAL |
2,774 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496" L x 0.177" W (12.60mm x 4.50mm) | 0.547" (13.90mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
 Series Style Straight.jpg "ECW-FA2J104J")
|
ECW-FA2J104JCAP FILM 0.1UF 5% 630VDC RADIAL |
2,756 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.205" W (18.20mm x 5.20mm) | 0.409" (10.40mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECQ-UAAF103KCAP FILM 0.01UF 10% 275VAC RADIA |
1,987 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.472" (12.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E2684KFCAP FILM 0.68UF 10% 250VDC RAD |
1,401 | - |
|
Datasheet | Radial | 0.68 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECQ-UAAF224KCAP FILM 0.22UF 10% 275VAC RAD |
6,279 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.295" W (17.50mm x 7.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E6103JFCAP FILM 10000PF 5% 630VDC RAD |
2,225 | - |
|
Datasheet | Radial | 10000 pF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" L x 0.177" W (12.00mm x 4.50mm) | 0.335" (8.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
ECH-U1C183GX5CAP FILM 0.018UF 2% 16VDC 1206 |
107,351 | - |
|
Datasheet | 1206 (3216 Metric) | 0.018 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
