Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

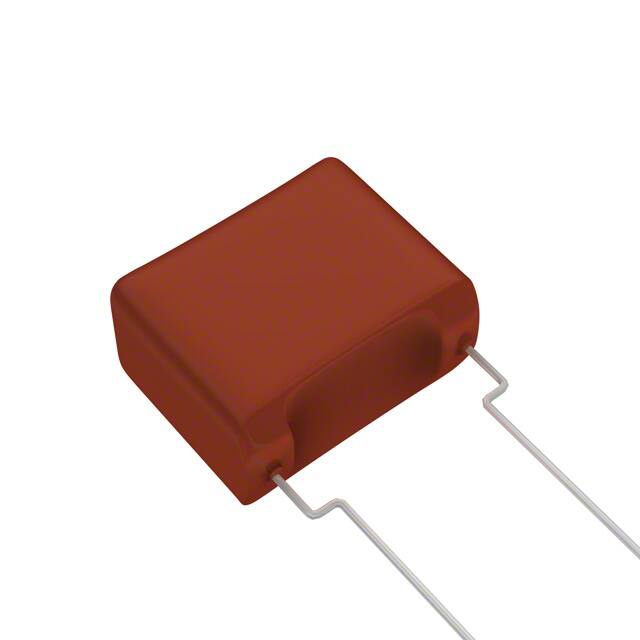

 Series Style B 18x12.jpg "ECW-FA2J684JB")
|
ECW-FA2J684JBCAP FILM 0.68UF 5% 630VDC RADIAL |
3,545 | - |
|
Datasheet | Radial | 0.68 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.472" W (18.20mm x 12.00mm) | 0.870" (22.10mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
ECH-U1H473JC9CAP FILM 0.047UF 5% 50VDC 1913 |
8,779 | - |
|
Datasheet | 1913 (4833 Metric) | 0.047 µF | ±5% | - | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-UBAF334MACAP FILM 0.33UF 20% 300VAC RADIA |
3,618 | - |
|
Datasheet | Radial | 0.33 µF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
|
ECW-H12122HVCAP FILM 1200PF 3% 1.25KVDC RAD |
5,701 | - |
|
Datasheet | Radial | 1200 pF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H12112HVCAP FILM 1100PF 3% 1.25KVDC RAD |
7,543 | - |
|
Datasheet | Radial | 1100 pF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H12132HVCAP FILM 1300PF 3% 1.25KVDC RAD |
2,612 | - |
|
Datasheet | Radial | 1300 pF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H12102HVCAP FILM 1000PF 3% 1.25KVDC RAD |
4,433 | - |
|
Datasheet | Radial | 1000 pF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H12242JVBCAP FILM 2400PF 5% 1.25KVDC RAD |
6,111 | - |
|
Datasheet | Radial | 2400 pF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.728" (18.50mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H12222JVBCAP FILM 2200PF 5% 1.25KVDC RAD |
5,875 | - |
|
Datasheet | Radial | 2200 pF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.728" (18.50mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
|
ECW-FD2J125KBCAP FILM 1.2UF 10% 630VDC RADIAL |
6,763 | - |
|
Datasheet | Radial | 1.2 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996" L x 0.362" W (25.30mm x 9.20mm) | 0.760" (19.30mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
