Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-H-1.jpg "ECW-U1392JX5")
|
ECW-U1392JX5CAP FILM 3900PF 5% 100VDC 1206 |
2,763 | - |
|
Datasheet | 1206 (3216 Metric) | 3900 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-UBAF272MCAP FILM 0.0027UF 20% 300VAC RAD |
1,494 | - |
|
Datasheet | Radial | 2700 pF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.472" (12.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X1, Y2 | - |
|
|
ECQ-UBAF332MCAP FILM 0.0033UF 20% 300VAC RAD |
1,420 | - |
|
Datasheet | Radial | 3300 pF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.472" (12.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X1, Y2 | - |
|
ECQ-UAAF334MCAP FILM 0.33UF 20% 275VAC RAD |
8,854 | - |
|
Datasheet | Radial | 0.33 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.354" W (17.50mm x 9.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
ECW-U1332JX5CAP FILM 3300PF 5% 100VDC 1206 |
7,755 | - |
|
Datasheet | 1206 (3216 Metric) | 3300 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECW-U1152JX5CAP FILM 1500PF 5% 100VDC 1206 |
7,618 | - |
|
Datasheet | 1206 (3216 Metric) | 1500 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
.jpg "ECH-U1H124JX9")
|
ECH-U1H124JX9CAP FILM 0.12UF 5% 50VDC 2416 |
7,323 | - |
|
Datasheet | 2416 (6041 Metric) | 0.12 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.083" (2.10mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-HA3C103JCAP FILM 10000PF 5% 1.6KVDC RAD |
2,331 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.799" L x 0.252" W (20.30mm x 6.40mm) | 0.484" (12.30mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
ECQ-UAAF104S1CAP FILM 0.1UF 20% 275VAC RAD |
1,289 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |

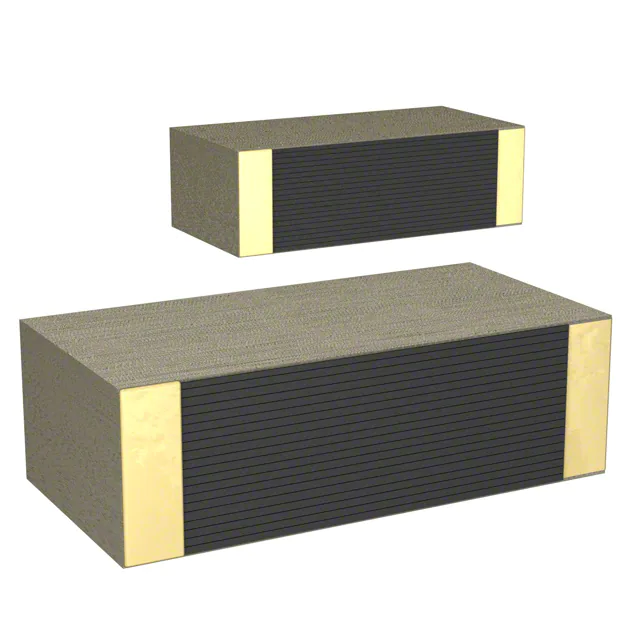

 H1.jpg "ECH-U1C123JB5")
|
ECH-U1C123JB5CAP FILM 0.012UF 5% 16VDC 1206 |
5,690 | - |
|
Datasheet | 1206 (3216 Metric) | 0.012 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
