Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

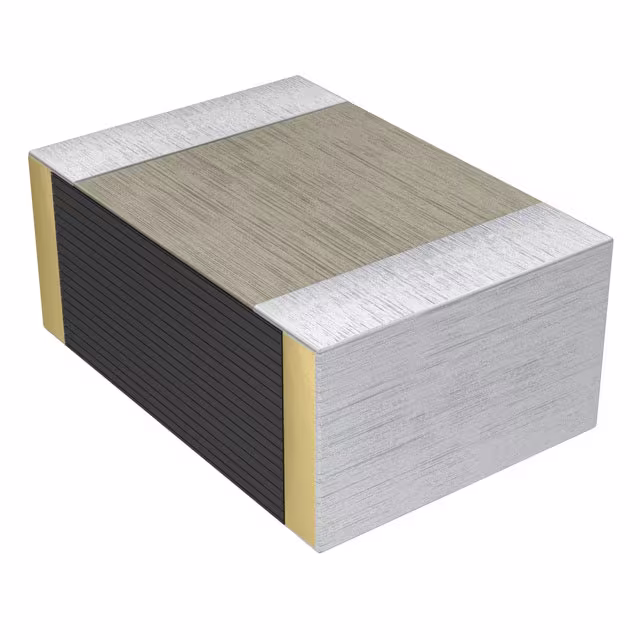

.jpg "ECH-U1H184GX9")
|
ECH-U1H184GX9CAP FILM 0.18UF 2% 50VDC 2416 |
6,823 | - |
|
Datasheet | 2416 (6041 Metric) | 0.18 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.106" (2.70mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-U2563JC9CAP FILM 0.056UF 5% 250VDC 2416 |
1,214 | - |
|
Datasheet | 2416 (6041 Metric) | 0.056 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-F4244JLCAP FILM 0.24UF 5% 400VDC RADIAL |
978 | - |
|
Datasheet | Radial | 0.24 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.327" W (18.00mm x 8.30mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-U1C394JC9CAP FILM 0.39UF 5% 16VDC 2416 |
3,755 | - |
|
Datasheet | 2416 (6041 Metric) | 0.39 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.102" (2.60mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-F4753HLCAP FILM 0.075UF 3% 400VDC RAD |
194 | - |
|
Datasheet | Radial | 0.075 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.287" W (13.00mm x 7.30mm) | 0.457" (11.60mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
|
ECW-F4364HLCAP FILM 0.36UF 3% 400VDC RADIAL |
758 | - |
|
Datasheet | Radial | 0.36 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.390" W (18.00mm x 9.90mm) | 0.638" (16.20mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECW-FG1B155JCAP FILM 1.5UF 5% 1.1KVDC RAD |
703 | - |
|
Datasheet | Radial | 1.5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.472" W (31.50mm x 12.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
ECW-H12333JVCAP FILM 0.033UF 5% 1.25KVDC RAD |
627 | - |
|
Datasheet | Radial | 0.033 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.394" W (23.00mm x 10.00mm) | 0.787" (20.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
|
ECW-F4154JBCAP FILM 0.15UF 5% 400VDC RADIAL |
989 | - |
|
Datasheet | Radial | 0.15 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECQ-UAAF335KCAP FILM 3.3UF 10% 275VAC RADIAL |
183 | - |
|
Datasheet | Radial | 3.3 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.161" (29.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
