Film Capacitors
Browse available Film Capacitors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "ECH-U1H103JX5")
|
ECH-U1H103JX5CAP FILM 10000PF 5% 50VDC 1206 |
27,629 | - |
|
Datasheet | 1206 (3216 Metric) | 10000 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
B32922C3104K289CAP FILM 0.1UF 10% 630VDC RADIAL |
21,075 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
ECH-U1H103GX5CAP FILM 10000PF 2% 50VDC 1206 |
16,476 | - |
|
Datasheet | 1206 (3216 Metric) | 10000 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
B32921C3104M289CAP FILM 0.1UF 20% 630VDC RADIAL |
114,372 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
.jpg "ECH-U1C103GX5")
|
ECH-U1C103GX5CAP FILM 10000PF 2% 16VDC 0805 |
3,247 | - |
|
Datasheet | 0805 (2012 Metric) | 10000 pF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
.jpg "ECH-U1C223JX5")
|
ECH-U1C223JX5CAP FILM 0.022UF 5% 16VDC 1206 |
8,151 | - |
|
Datasheet | 1206 (3216 Metric) | 0.022 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
 Series.jpg "ECW-FE2W105K")
|
ECW-FE2W105KCAP FILM 1UF 10% 450VDC RADIAL |
168,943 | - |
|
Datasheet | Radial | 1 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.512" (13.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R46KI368045P1MCAP FILM 0.68UF 20% 560VDC RAD |
17,029 | - |
|
Datasheet | Radial | 0.68 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|

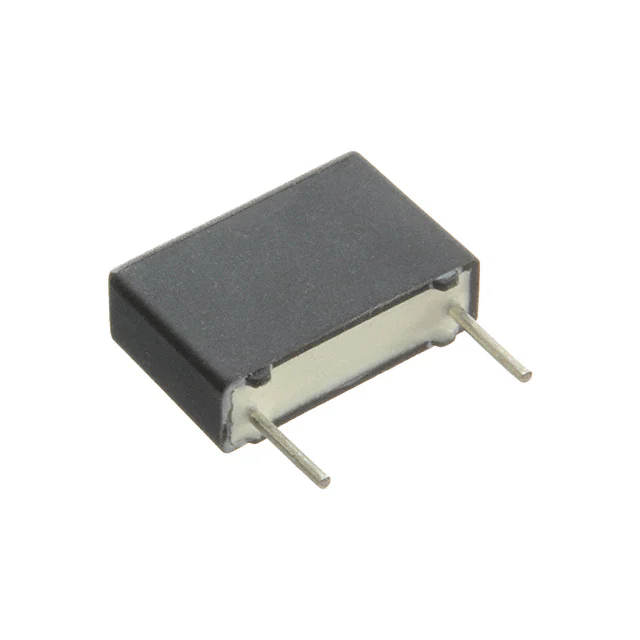

224MKP275KBCAP FILM 0.22UF 10% 310VAC RAD |
47,558 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.465" (11.80mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
ECH-U1C333GX5CAP FILM 0.033UF 2% 16VDC 1206 |
39,480 | - |
|
Datasheet | 1206 (3216 Metric) | 0.033 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECH-U1C273GX5CAP FILM 0.027UF 2% 16VDC 1206 |
8,414 | - |
|
Datasheet | 1206 (3216 Metric) | 0.027 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
B32529C0105K189CAP FILM 1UF 10% 63VDC RADIAL |
108,606 | - |
|
Datasheet | Radial | 1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.177" W (7.30mm x 4.50mm) | 0.374" (9.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
ECW-FD2W105JCAP FILM 1UF 5% 450VDC RADIAL |
106,726 | - |
|
Datasheet | Radial | 1 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.307" W (17.50mm x 7.80mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-E6104KFCAP FILM 0.1UF 10% 630VDC RADIAL |
84,749 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.248" W (18.50mm x 6.30mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECH-U1H223JX5CAP FILM 0.022UF 5% 50VDC 1210 |
8,015 | - |
|
Datasheet | 1210 (3225 Metric) | 0.022 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
 J1.jpg "ECP-U1C104MA5")
|
ECP-U1C104MA5CAP FILM 0.1UF 20% 16VDC 0805 |
51,639 | - |
|
Datasheet | 0805 (2012 Metric) | 0.1 µF | ±20% | 12V | 16V | Acrylic, Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.047" (1.20mm) | Solder Pads | - | EMI, RFI Suppression | - | Low ESR |
-H-1.jpg "ECW-U1102JX5")
|
ECW-U1102JX5CAP FILM 1000PF 5% 100VDC 1206 |
16,870 | - |
|
Datasheet | 1206 (3216 Metric) | 1000 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
ECH-U1C473GX5CAP FILM 0.047UF 2% 16VDC 1206 |
26,013 | - |
|
Datasheet | 1206 (3216 Metric) | 0.047 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E2105KFCAP FILM 1UF 10% 250VDC RADIAL |
17,159 | - |
|
Datasheet | Radial | 1 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.291" W (18.50mm x 7.40mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
.jpg "ECH-U1C473JX5")
|
ECH-U1C473JX5CAP FILM 0.047UF 5% 16VDC 1206 |
5,808 | - |
|
Datasheet | 1206 (3216 Metric) | 0.047 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
Film Capacitors FAQ
What Film Capacitors components can I source from EGOO?
You can browse available Film Capacitors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Film Capacitors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
