Film Capacitors
Browse available Film Capacitors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDECC3100MA5N00CAP FILM 0.1UF 20% 50VDC 1812 |
4,079 | - |
|
Datasheet | 1812 (4532 Metric) | 0.1 µF | ±20% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
R60PF2220JH30KCAP FILM AUTOMOTIVE |
9,498 | - |
|
Datasheet | Radial | 0.022 µF | ±10% | 220V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
|
R745I2150AA00KCAP FILM METAL RAD POLYPROP |
9,256 | - |
|
Datasheet | Radial | 0.015 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 42 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R745I2150JE00KCAP FILM METAL RAD POLYPROP |
7,784 | - |
|
Datasheet | Radial | 0.015 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 42 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76MF23905030KCAP FILM AUTO POLYPROP RAD |
9,154 | - |
|
Datasheet | Radial | 0.039 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R747I1330DQ00JCAP FILM METAL RAD POLYPROP |
4,419 | - |
|
Datasheet | Radial | 3300 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 193 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R60PF24705030JCAP FILM AUTOMOTIVE |
8,635 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 220V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
|
R76MF2390JH30KCAP FILM AUTO POLYPROP RAD |
3,915 | - |
|
Datasheet | Radial | 0.039 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R71MI3100GY00JCAP FILM METAL RAD POLYPROP |
7,673 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 220V | 420V | Polypropylene (PP), Metallized | 398 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
|
R60PF2470CK6AKCAP FILM AUTOMOTIVE |
8,618 | - |
|
Datasheet | Radial | 0.047 µF | ±10% | 220V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
|
R60PF2470AA30JCAP FILM AUTOMOTIVE |
2,073 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 220V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
|
R76MF2390SE30KCAP FILM AUTO POLYPROP RAD |
6,510 | - |
|
Datasheet | Radial | 0.039 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76PD1100JH00JCAP FILM AUTO POLYPROP RAD |
8,334 | - |
|
Datasheet | Radial | 1000 pF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 637 mOhms | -55°C ~ 110°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.319" (8.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76MF2390JE30KCAP FILM AUTO POLYPROP RAD |
4,138 | - |
|
Datasheet | Radial | 0.039 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76PD1150JE00JCAP FILM AUTO POLYPROP RAD |
9,689 | - |
|
Datasheet | Radial | 1500 pF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 424 mOhms | -55°C ~ 110°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.319" (8.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76PD1100JE00JCAP FILM AUTO POLYPROP RAD |
2,031 | - |
|
Datasheet | Radial | 1000 pF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 637 mOhms | -55°C ~ 110°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.319" (8.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

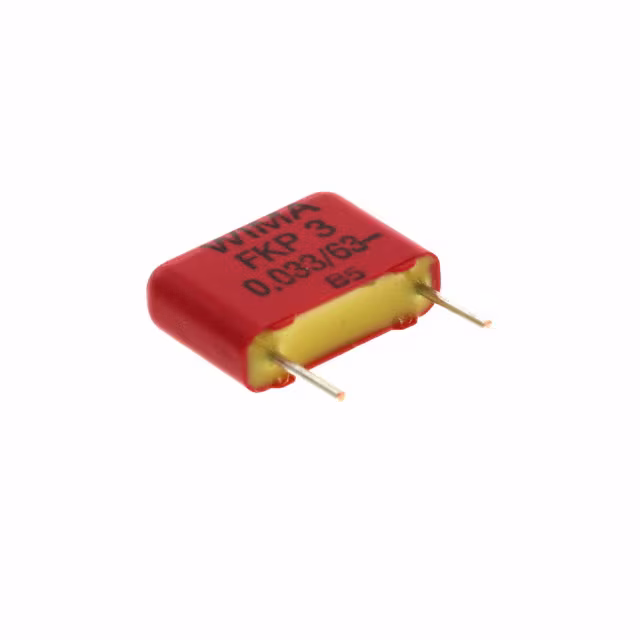

FKP3C023303D00KSSDCAP FILM 0.033UF 10% 63VDC RAD |
3,087 | - |
|
Datasheet | Radial | 0.033 µF | ±10% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.374" (9.50mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

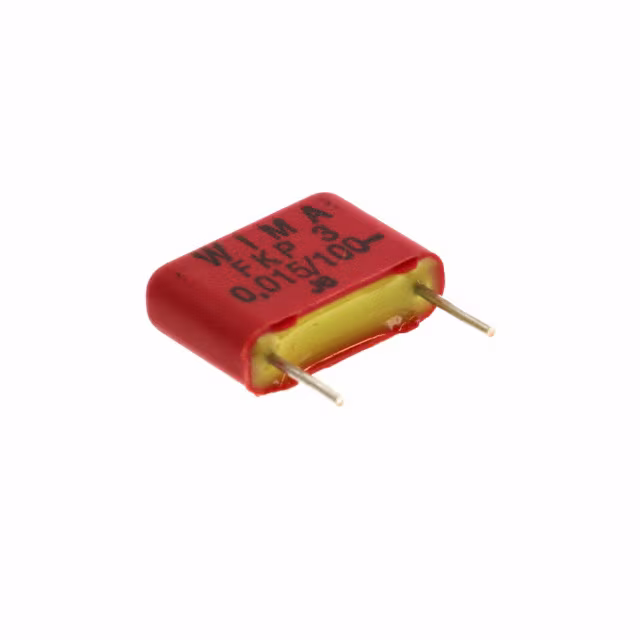

FKP3D021503D00KSSDCAP FILM 0.015UF 10% 100VDC RAD |
7,346 | - |
|
Datasheet | Radial | 0.015 µF | ±10% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.374" (9.50mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R82DC4150JH60KCAP FILM 1.5UF 10% 63VDC RADIAL |
9,467 | - |
|
Datasheet | Radial | 1.5 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
R82DC4150JE60JCAP FILM 1.5UF 5% 63VDC RADIAL |
7,296 | - |
|
Datasheet | Radial | 1.5 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
