Film Capacitors
Browse available Film Capacitors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QXL2E334KTPTCAP FILM 0.33UF 10% 250VAC RAD |
188 | - |
|
Datasheet | Radial | 0.33 µF | ±10% | 250V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.004" L x 0.311" W (25.50mm x 7.90mm) | 0.717" (18.20mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|

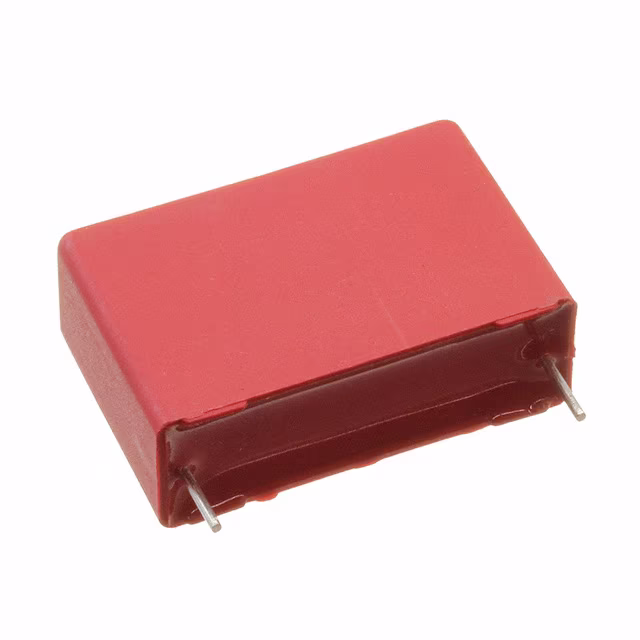

MKP1O131506B00KSSDCAP FILM 0.15UF 10% 1KVDC RAD |
3,161 | - |
|
Datasheet | Radial | 0.15 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
DME2P56K-FCAP FILM 0.56UF 10% 250VDC RAD |
2,961 | - |
|
Datasheet | Radial | 0.56 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.512" (13.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
335MMR250KCAP FILM 3.3UF 10% 250VDC RADIAL |
2,406 | - |
|
Datasheet | Radial | 3.3 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.413" W (26.00mm x 10.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
ECQ-E1395KFCAP FILM 3.9UF 10% 100VDC RADIAL |
812 | - |
|
Datasheet | Radial | 3.9 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.685" (17.40mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
ECW-F4224JBCAP FILM 0.22UF 5% 400VDC RADIAL |
650 | - |
|
Datasheet | Radial | 0.22 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.787" L x 0.374" W (20.00mm x 9.50mm) | 0.709" (18.00mm) | PC Pins | 0.669" (17.00mm) | High Frequency, Switching | - | - |
|

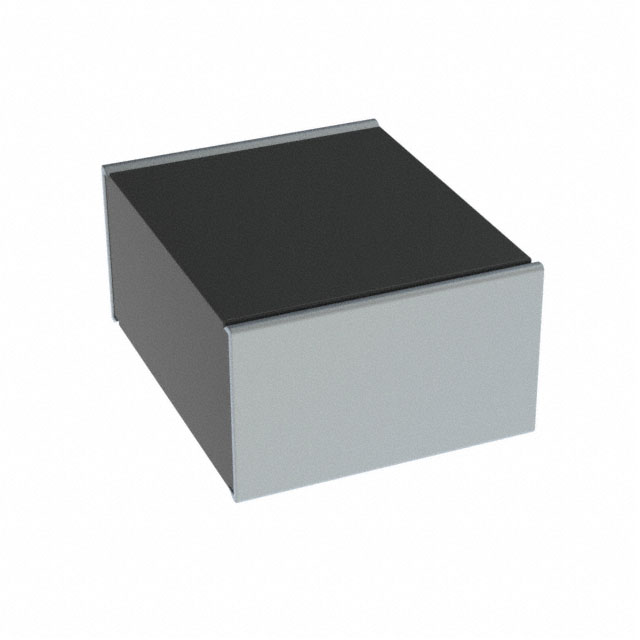

SMDTC04470XA00KT00CAP FILM 4.7UF 10% 40VAC 5040 |
612 | - |
|
Datasheet | 5040 (127102 Metric) | 4.7 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.500" L x 0.402" W (12.70mm x 10.20mm) | 0.248" (6.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
R76PN3220SE30JCAP FILM 0.22UF 5% 630VDC RADIAL |
492 | - |
|
Datasheet | Radial | 0.22 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32524R6225J000CAP FILM 2.2UF 5% 400VDC RADIAL |
471 | - |
|
Datasheet | Radial | 2.2 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
B32524Q6155K000CAP FILM 1.5UF 10% 400VDC RADIAL |
221 | - |
|
Datasheet | Radial | 1.5 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
R46KN415000P0MCAP FILM 1.5UF 20% 560VDC RADIAL |
218 | - |
|
Datasheet | Radial | 1.5 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECW-F6164JLCAP FILM 0.16UF 5% 630VDC RADIAL |
164 | - |
|
Datasheet | Radial | 0.16 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.366" W (18.00mm x 9.30mm) | 0.602" (15.30mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
890334026030CAP FILM 1.5UF 10% 310VAC RADIAL |
150 | - |
|
Datasheet | Radial | 1.5 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC233660473CAP FILM 0.047UF 20% 1KVDC RAD |
4,352 | - |
|
Datasheet | Radial | 0.047 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
F339X141048KI02W0CAP FILM 0.1UF 10% 1KVDC RADIAL |
3,672 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
CB052D0105KBCCAP FILM 1UF 10% 63VDC 2824 |
2,251 | - |
|
Datasheet | 2824 (7260 Metric) | 1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.146" (3.70mm) | Solder Pads | - | General Purpose | - | - |
|
DME4P33K-FCAP FILM 0.33UF 10% 400VDC RAD |
1,287 | - |
|
Datasheet | Radial | 0.33 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" L x 0.295" W (18.50mm x 7.50mm) | 0.646" (16.40mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
150472J630BBCAP FILM 4700PF 5% 630VDC AXIAL |
1,000 | - |
|
Datasheet | Axial | 4700 pF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236" Dia x 0.650" L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
|
R46KN415040P0MCAP FILM 1.5UF 20% 560VDC RADIAL |
247 | - |
|
Datasheet | Radial | 1.5 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
B32524Q3225K000CAP FILM 2.2UF 10% 250VDC RADIAL |
1,647 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
