Film Capacitors
Browse available Film Capacitors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R76UR26804030JCAP FILM 0.068UF 5% 2KVDC RADIAL |
803 | - |
|
Datasheet | Radial | 0.068 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32024B3474K000CAP FILM 0.47UF 10% 1.5KVDC RAD |
581 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
|
DME4P47K-FCAP FILM 0.47UF 10% 400VDC RAD |
1,011 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" L x 0.327" W (18.50mm x 8.30mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
B32934A3684K189CAP FILM 0.68UF 10% 305VAC RAD |
4,045 | - |
|
Datasheet | Radial | 0.68 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
ECW-U2154KCVCAP FILM 0.15UF 10% 250VDC 2825 |
1,979 | - |
|
Datasheet | 2825 (7163 Metric) | 0.15 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.146" (3.70mm) | Solder Pads | - | General Purpose | - | - |
|
B32654A7224J000CAP FILM 0.22UF 5% 1.25KVDC RAD |
1,092 | - |
|
Datasheet | Radial | 0.22 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
PHE844RD6470KR06L2CAP FILM 0.47UF 10% 1KVDC RADIAL |
793 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
150474J250HCCAP FILM 0.47UF 5% 250VDC AXIAL |
525 | - |
|
Datasheet | Axial | 0.47 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.374" Dia x 0.807" L (9.50mm x 20.50mm) | - | PC Pins | - | General Purpose | - | - |
|
730P104X9250CAP FILM 0.1UF 10% 250VDC AXIAL |
427 | - |
|
Datasheet | Axial | 0.1 µF | ±10% | - | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.280" Dia x 0.748" L (7.10mm x 19.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
BFC237363224CAP FILM 0.22UF 10% 630VDC RAD |
260 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
|
BFC238330223CAP FILM 0.022UF 5% 1KVDC RADIAL |
253 | - |
|
Datasheet | Radial | 0.022 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
ECW-FD2J475KCAP FILM 4.7UF 10% 630VDC RADIAL |
221 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996" L x 0.720" W (25.30mm x 18.30mm) | 0.941" (23.90mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-F6125HLCAP FILM 1.2UF 3% 630VDC RADIAL |
891 | - |
|
Datasheet | Radial | 1.2 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.669" W (28.00mm x 17.00mm) | 0.992" (25.20mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
PHE840EF7100KF12R06L2CAP FILM 1UF 10% 760VDC RADIAL |
687 | - |
|
Datasheet | Radial | 1 µF | ±10% | 300V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.453" W (31.50mm x 11.50mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
R76QR327050H4JCAP FILM 0.27UF 5% 1KVDC RADIAL |
647 | - |
|
Datasheet | Radial | 0.27 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

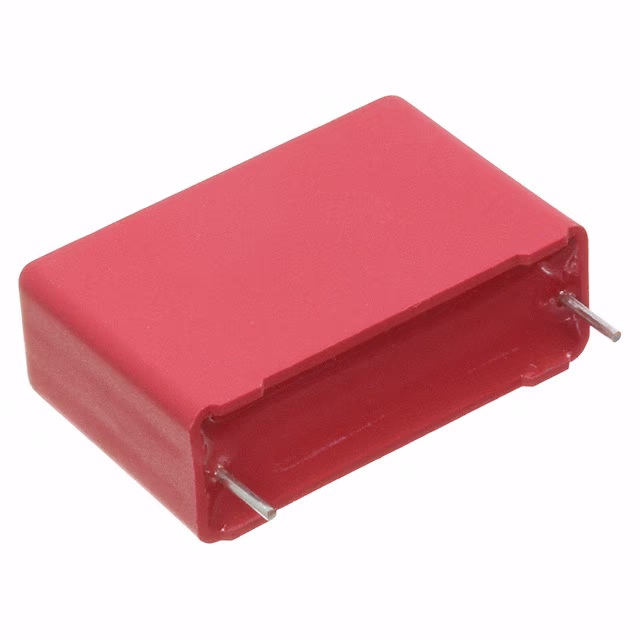

MKP4F042206B00JSSDCAP FILM 2.2UF 5% 250VDC RAD |
304 | - |
|
Datasheet | Radial | 2.2 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
WMC08D22K-FCAP FILM 2200PF 10% 80VDC AXIAL |
619 | - |
|
Datasheet | Axial | 2200 pF | ±10% | 50V | 80V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.185" Dia x 0.406" L (4.70mm x 10.30mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
B32674D3475K000CAP FILM 4.7UF 10% 300VDC RADIAL |
4,060 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | - | 300V | Polypropylene (PP), Metallized | 8.9 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
B32034C4334M000CAP FILM 0.33UF 20% 1KVDC RADIAL |
726 | - |
|
Datasheet | Radial | 0.33 µF | ±20% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
R53BN410050S0MCAP FILM 1UF 20% 800VDC RADIAL |
147 | - |
|
Datasheet | Radial | 1 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.878" (22.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
Film Capacitors FAQ
What Film Capacitors components can I source from EGOO?
You can browse available Film Capacitors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Film Capacitors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
