Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F340X151548MKP2T0CAP FILM 1.5UF 20% 800VDC RADIAL |
31 | - |
|
Datasheet | Radial | 1.5 µF | ±20% | 480V, 530V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.524" (38.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; 3 Phase | X1 | 85C/85% Humidity |
|
MKP1841422135CAP FILM 0.22UF 10% 1.6KVDC RAD |
50 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
F339MX261031MPM2T0CAP FILM 10UF 20% 630VDC RADIAL |
73 | - |
|
Datasheet | Radial | 10 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
MKT1820615015CAP FILM 15UF 10% 100VDC RADIAL |
91 | - |
|
Datasheet | Radial | 15 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
MKP385E4392AJPM2T0CAP FILM 0.39UF 5% 2KVDC RAD |
76 | - |
|
Datasheet | Radial | 0.39 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.535" (39.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|

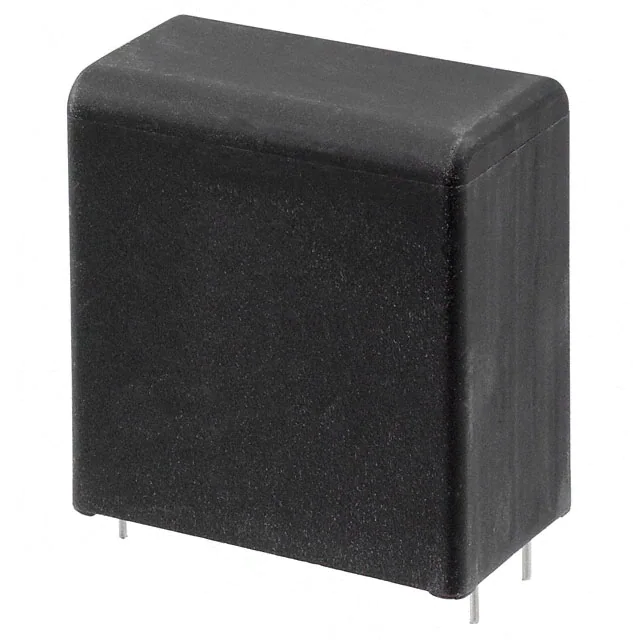

MKP1848C61012JP4CAP FILM 10UF 5% 1.2KVDC RADIAL |
88 | - |
|
Datasheet | Radial - 4 Leads | 10 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 8 mOhms | 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
MKP1847H55035JP4CAP FILM 5UF 5% 700VDC RADIAL |
46 | - |
|
Datasheet | Radial - 4 Leads | 5 µF | ±5% | 350V | 700V | Polypropylene (PP), Metallized | 7.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.846" W (42.00mm x 21.50mm) | 1.535" (39.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | - |
|
MKP386M510160JT4CAP FILM 1UF 5% 1.6KVDC SCREW |
13 | - |
|
Datasheet | Rectangular Box | 1 µF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732" L x 0.866" W (44.00mm x 22.00mm) | 1.496" (38.00mm) | Screw Terminals | - | Snubber | - | Low ESR |
|
MKP1848C63080JP4CAP FILM 30UF 5% 800VDC RADIAL |
77 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
MKP386M347250JT7CAP FILM 0.047UF 5% 2.5KVDC SCRW |
82 | - |
|
Datasheet | Rectangular Box | 0.047 µF | ±5% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 20 mOhms | -55°C ~ 105°C | Chassis Mount | 1.319" L x 0.866" W (33.50mm x 22.00mm) | 1.201" (30.50mm) | Screw Terminals | - | Snubber | - | Low ESR |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
