Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1848C53050JK2CAP FILM 3UF 5% 500VDC RADIAL |
9,995 | - |
|
Datasheet | Radial | 3 µF | ±5% | - | 500V | Polypropylene (PP), Metallized | 30 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
BFC238330154CAP FILM 0.15UF 5% 1KVDC RADIAL |
6,784 | - |
|
Datasheet | Radial | 0.15 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
F17724682260CAP FILM 0.68UF 20% 630VDC RAD |
8,160 | - |
|
Datasheet | Radial | 0.68 µF | ±20% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
MKP1840447104MCAP FILM 0.47UF 5% 1KVDC RADIAL |
9,437 | - |
|
Datasheet | Radial | 0.47 µF | ±5% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
MKP1847C610235K2MKP 10F 10% 230VAC PITCH 27,5 |
7,441 | - |
|
Datasheet | Radial | 10 µF | ±10% | 230V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.260" L x 0.787" W (32.00mm x 20.00mm) | 1.398" (35.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | - | - |
|
F340X152248MPP2T0CAP FILM 2.2UF 20% 800VDC RADIAL |
1 | - |
|
Datasheet | Radial | 2.2 µF | ±20% | 480V, 530V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 0.846" W (42.00mm x 21.50mm) | 1.543" (39.20mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression; 3 Phase | X1 | 85C/85% Humidity |
|

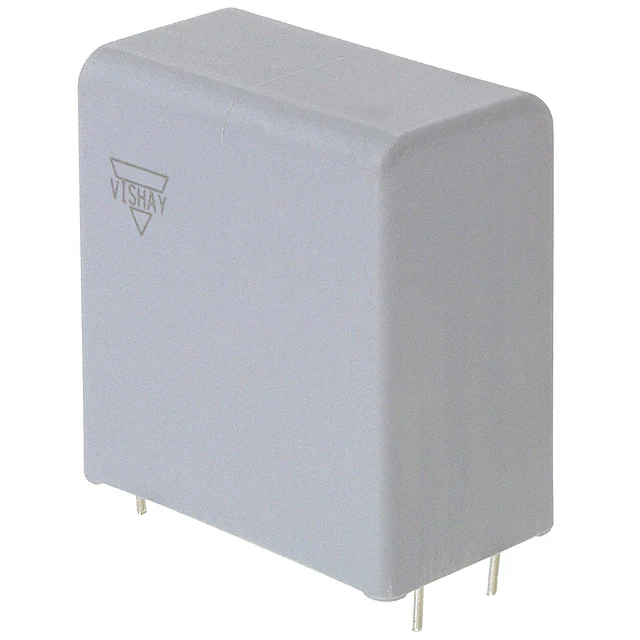

MKP1847610354P4CAP FILM 10UF 5% 700VDC RADIAL |
4,855 | - |
|
Datasheet | Radial - 4 Leads | 10 µF | ±5% | 350V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT | - | Long Life |
|
MKP386M520100JT1CAP FILM 2UF 5% 1KVDC SCREW |
9,990 | - |
|
Datasheet | Rectangular Box | 2 µF | ±5% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732" L x 1.181" W (44.00mm x 30.00mm) | 1.811" (46.00mm) | Screw Terminals | - | Snubber | - | Low ESR |
|
|
BFC237021123CAP FILM 0.012UF 10% 100VDC RAD |
3,366 | - |
|
Datasheet | Radial | 0.012 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
|
BFC237011124CAP FILM 0.12UF 10% 63VDC RADIAL |
5,381 | - |
|
Datasheet | Radial | 0.12 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
