Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC238330334CAP FILM 0.33UF 5% 1KVDC RADIAL |
123 | - |
|
Datasheet | Radial | 0.33 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|

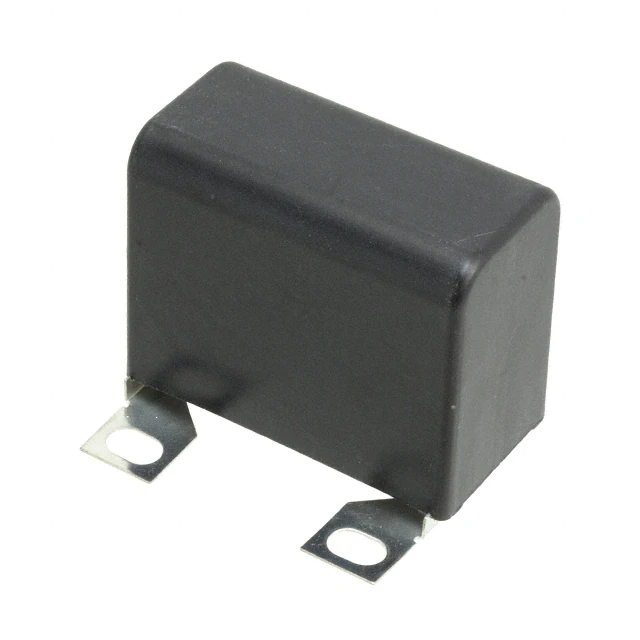

MKP386M510200YT4CAP FILM 1UF 5% 2KVDC SCREW |
138 | - |
|
Datasheet | Rectangular Box | 1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283" L x 1.181" W (58.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.457" (37.00mm) | Snubber | - | Low ESR |
|

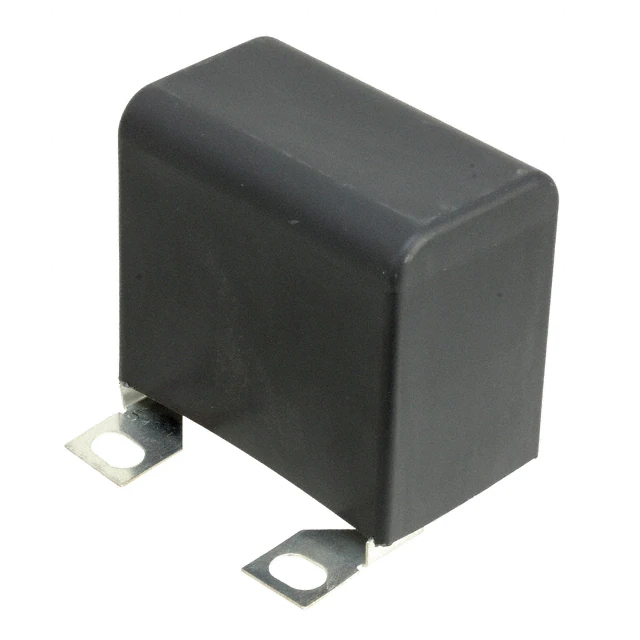

MKP386M550125YT4CAP FILM 5UF 5% 1.25KVDC SCREW |
1,088 | - |
|
Datasheet | Rectangular Box | 5 µF | ±5% | 550V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283" L x 1.378" W (58.00mm x 35.00mm) | 1.969" (50.00mm) | Screw Terminals | 1.457" (37.00mm) | Snubber | - | Low ESR |
|
|
MKP386M515200YT4CAP FILM 1.5UF 5% 2KVDC SCREW |
441 | - |
|
Datasheet | Rectangular Box | 1.5 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283" L x 1.378" W (58.00mm x 35.00mm) | 1.969" (50.00mm) | Screw Terminals | 1.457" (37.00mm) | Snubber | - | Low ESR |
|
MKP1848C65010JY5CAP FILM 50UF 5% 1KVDC RADIAL |
4,216 | - |
|
Datasheet | Radial - 4 Leads | 50 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
MKP1848C71050JY5CAP FILM 100UF 5% 500VDC RADIAL |
230 | - |
|
Datasheet | Radial - 4 Leads | 100 µF | ±5% | - | 500V | Polypropylene (PP), Metallized | 3 mOhms | 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
MKT1820712255CAP FILM 120UF 10% 250VDC RADIAL |
80 | - |
|
Datasheet | Radial | 120 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | - |
|
|
MKT1820733015CAP FILM 330UF 10% 100VDC RADIAL |
36 | - |
|
Datasheet | Radial | 330 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | - |
|
|
BFC237086333CAP FILM 0.033UF 5% 100VDC RAD |
12,450 | - |
|
Datasheet | Radial | 0.033 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
|
BFC237065102CAP FILM 1000PF 10% 400VDC RAD |
2,375 | - |
|
Datasheet | Radial | 1000 pF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
