Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1848620094P5CAP FILM 20UF 5% 900VDC RADIAL |
178 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
MKP1839610164CAP FILM 10UF 5% 160VDC AXIAL |
118 | - |
|
Datasheet | Axial | 10 µF | ±5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.866" Dia x 1.634" L (22.00mm x 41.50mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|

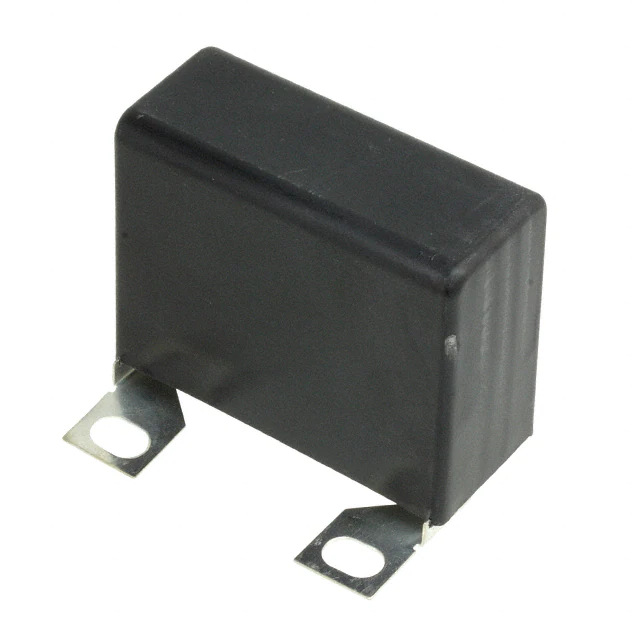

MKP386M530125YT4CAP FILM 3UF 5% 1.25KVDC SCREW |
185 | - |
|
Datasheet | Rectangular Box | 3 µF | ±5% | 550V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Chassis Mount | 2.283" L x 0.984" W (58.00mm x 25.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.457" (37.00mm) | Snubber | - | Low ESR |
|
MKP1847C620355Y2MKP 20F 10% 350VAC PITCH 52,5 |
139 | - |
|
Datasheet | Radial | 20 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
BFC233840106CAP FILM 10UF 20% 800VDC RADIAL |
141 | - |
|
Datasheet | Radial | 10 µF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 2.402" L x 0.846" W (61.00mm x 21.50mm) | 1.516" (38.50mm) | PC Pins | - | EMI, RFI Suppression | X2 | - |
|
MKP1848C63050JP4CAP FILM 30UF 5% 500VDC RADIAL |
147 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±5% | - | 500V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
MKP1848625094Y5CAP FILM 25UF 5% 900VDC RADIAL |
126 | - |
|
Datasheet | Radial - 4 Leads | 25 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 9 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
MKP1847C630355Y5MKP 30F 10% 350VAC PITCH 52,5 |
433 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
|
MKP1848630094Y5CAP FILM 30UF 5% 900VDC RADIAL |
113 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 11 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
F340X158248KYP2T0CAP FILM 8.2UF 10% 800VDC RADIAL |
131 | - |
|
Datasheet | Radial | 8.2 µF | ±10% | 480V, 530V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.008" (51.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression; 3 Phase | X1 | 85C/85% Humidity |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
