Film Capacitors
Browse available Film Capacitors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32756G2206K000CAP FILM 20UF 10% 500VDC RADIAL |
371 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
930C4W1K-FCAP FILM 1UF 10% 400VDC AXIAL |
278 | - |
|
Datasheet | Axial | 1 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 27 mOhms | -55°C ~ 105°C | Through Hole | 0.654" Dia x 1.260" L (16.60mm x 32.00mm) | - | PC Pins | - | General Purpose | - | - |
|
C274AC35180AA0JCAP FILM 18UF 5% 470VAC RADIAL |
166 | - |
|
Datasheet | Radial, Can | 18 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 2.992" (76.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
R60DR52204030KCAP FILM 22UF 10% 63VDC RADIAL |
384 | - |
|
Datasheet | Radial | 22 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
R586W422050T0KCAP FILM 600VAC(X1) 2.2 UF 10% |
132 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.744" (44.30mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
EZP-Q38805LTDCAP FILM 8UF 5% 380VAC RADIAL |
212 | - |
|
Datasheet | Radial | 8 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 11.9 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 1.083" W (41.50mm x 27.50mm) | 1.693" (43.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
R60IW5220AA30KCAP FILM 22UF 10% 250VDC RADIAL |
369 | - |
|
Datasheet | Radial | 22 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
940C8P47K-FCAP FILM 0.47UF 10% 850VDC AXIAL |
321 | - |
|
Datasheet | Axial | 0.47 µF | ±10% | 450V | 850V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 0.827" Dia x 1.339" L (21.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
BFC233820155CAP FILM 1.5UF 20% 630VDC RADIAL |
1,644 | - |
|
Datasheet | Radial | 1.5 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
B32776H8276K000CAP FILM 27UF 10% 700VDC RADIAL |
353 | - |
|
Datasheet | Radial - 4 Leads | 27 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 5.8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
35MU475MC44532CAP FILM 4.7UF 20% 35VDC 1812 |
1,518 | - |
|
Datasheet | 1812 (4532 Metric) | 4.7 µF | ±20% | - | 35V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
B32926B4475M000CAP FILM 4.7UF 20% 650VDC RADIAL |
441 | - |
|
Datasheet | Radial | 4.7 µF | ±20% | 350V | 650V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|
MKP1848610704P2CAP FILM 10UF 5% 700VDC RADIAL |
105 | - |
|
Datasheet | Radial | 10 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 13.5 mOhms | -40°C ~ 105°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
FFB34I0126K--CAP FILM 12UF 10% 400VDC RADIAL |
256 | - |
|
Datasheet | Radial | 12 µF | ±10% | 105V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.681" W (31.10mm x 17.30mm) | 1.173" (29.80mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|

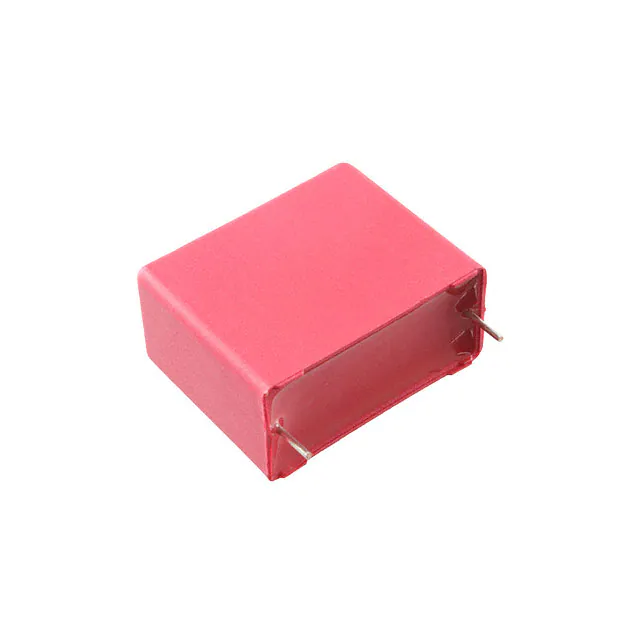

MKS4C053306F00KSSDCAP FILM 33UF 10% 63VDC RADIAL |
289 | - |
|
Datasheet | Radial | 33 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
.JPG "105PPB630K")
|
105PPB630KCAP FILM 1UF 10% 630VDC RADIAL |
1,150 | - |
|
Datasheet | Radial | 1 µF | ±10% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.673" L x 0.866" W (42.50mm x 22.00mm) | 1.181" (30.00mm) | PC Pins | 1.476" (37.50mm) | Commutation; High Pulse, DV/DT; Snubber | - | - |
|
|
MKT1813610255CAP FILM 10UF 10% 250VDC AXIAL |
225 | - |
|
Datasheet | Axial | 10 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.827" Dia x 1.634" L (21.00mm x 41.50mm) | - | PC Pins | - | General Purpose | - | - |
|
B32776Z4406K000FILM CAP MKP DC FILTERING - 500V |
221 | - |
|
Datasheet | Radial - 4 Leads | 40 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
D84W2455M01HCAP FILM 55UF 3% 240VAC RADIAL |
150 | - |
|
Datasheet | Radial, Can | 55 µF | ±3% | 240V | - | - | - | -40°C ~ 105°C | Chassis Mount | 1.770" Dia (44.96mm) | 3.620" (91.95mm) | Wire Leads | - | General Purpose | - | Long Life |
|
|
940C20P33K-FCAP FILM 0.33UF 10% 2KVDC AXIAL |
2,307 | - |
|
Datasheet | Axial | 0.33 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 1.063" Dia x 1.811" L (27.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
Film Capacitors FAQ
What Film Capacitors components can I source from EGOO?
You can browse available Film Capacitors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Film Capacitors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
