Film Capacitors
Browse available Film Capacitors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BLH406K112C134DC LINK, THB, 85/85 |
118 | - |
|
Datasheet | Radial - 4 Leads | 40 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 5.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.579" (65.50mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
B32320I4267K000260MFD 450V PP 50X120 PBT 5 PIN |
121 | - |
|
Datasheet | Radial, Can - 5 Lead | 260 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Through Hole | 1.969" Dia (50.00mm) | 4.724" (120.00mm) | Solder Lug | - | General Purpose | - | Long Life |
|
942C12P9K-FCAP FILM 0.9UF 10% 1.2KVDC AXIAL |
156 | - |
|
Datasheet | Axial | 0.9 µF | ±10% | 430V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.220" Dia x 2.520" L (31.00mm x 64.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
MKP1848625094Y5CAP FILM 25UF 5% 900VDC RADIAL |
126 | - |
|
Datasheet | Radial - 4 Leads | 25 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 9 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
C870CG35800AA2JCAP FILM 80UF 5% 470VAC RADIAL |
187 | - |
|
Datasheet | Radial, Can | 80 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
940C8W2K-FCAP FILM 2UF 10% 850VDC AXIAL |
213 | - |
|
Datasheet | Axial | 2 µF | ±10% | 450V | 850V | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 105°C | Through Hole | 1.201" Dia x 1.811" L (30.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
B32778G1256K000CAP FILM 25UF 1.3KVDC RAD 4 LEAD |
655 | - |
|
Datasheet | Radial - 4 Leads | 25 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 7.8 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32320I4207K000200MFD 450V PP 50X95 PBT 5 PIN |
133 | - |
|
Datasheet | Radial, Can - 5 Lead | 200 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Through Hole | 1.969" Dia (50.00mm) | 3.740" (95.00mm) | Solder Lug | - | General Purpose | - | Long Life |
|
|
B32778G1276K000CAP FILM 27UF 1.3KVDC RAD 4 LEAD |
324 | - |
|
Datasheet | Radial - 4 Leads | 27 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 7.3 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
MKP1847C630355Y5MKP 30F 10% 350VAC PITCH 52,5 |
433 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
|
MKP1848630094Y5CAP FILM 30UF 5% 900VDC RADIAL |
113 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 11 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|

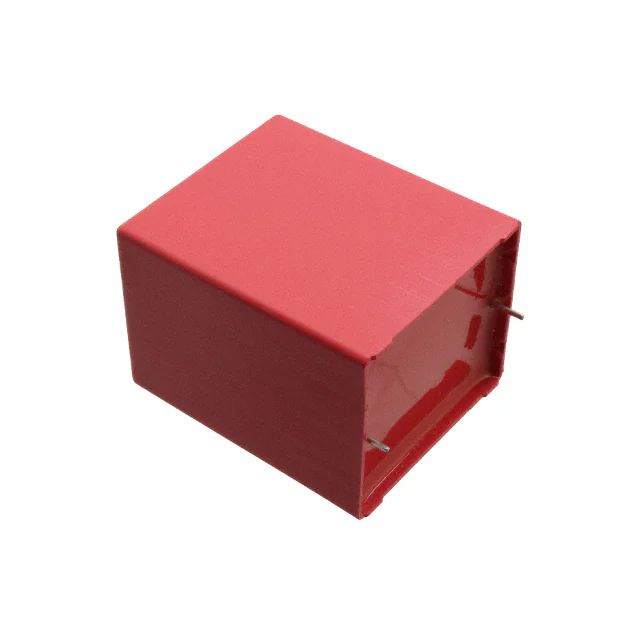

DCP4L055007JD4KSSDCAP FILM 50UF 10% 800VDC RAD |
106 | - |
|
Datasheet | Radial - 4 Leads | 50 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 1.378" W (41.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32918A5475M000CAP FILM 4.7UF 20% 1KVDC RADIAL |
286 | - |
|
Datasheet | Radial | 4.7 µF | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | X1 | - |
|
SFA44T2K219B-FCAP FILM 2UF 10% 440VAC RADIAL |
160 | - |
|
Datasheet | Radial, Can | 2 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.150" (54.61mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
EZP-V60956MTSCAP FILM 95UF 10% 600V RADIAL |
117 | - |
|
Datasheet | Radial - 4 Leads | 95 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 5.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.008" (51.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
C44APFP4200ZD0JCAP FILM 2UF 5% 1.2KVDC RADIAL |
112 | - |
|
Datasheet | Radial, Can | 2 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.228" (82.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
FFB34D0686K--CAP FILM 68UF 10% 75VDC RADIAL |
192 | - |
|
Datasheet | Radial | 68 µF | ±10% | 45V | 75V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.681" W (31.10mm x 17.30mm) | 1.173" (29.80mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
C878BF35350SA0JCAP FILM 35UF 5% 470VAC RADIAL |
279 | - |
|
Datasheet | Radial, Can | 35 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | - | - | Quick Connect - 0.250" (6.3mm) | - | Motor Run | - | - |
|
B32778G8506K000CAP FILM 50UF 800VDC RAD 4 LEAD |
125 | - |
|
Datasheet | Radial - 4 Leads | 50 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
C274ACF5400WA0JCAP FILM 40UF 5% 470VAC RADIAL |
3 | - |
|
Datasheet | Radial, Can | 40 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 4.862" (123.50mm) | Wire Leads | - | Motor Run | - | - |
Film Capacitors FAQ
What Film Capacitors components can I source from EGOO?
You can browse available Film Capacitors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Film Capacitors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
