Film Capacitors
Browse available Film Capacitors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1T024705D00KB00MKP 10 0.047 F 1600 VDC 7X16.5X2 |
9,589 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1T024705D00KD00MKP 10 0.047 F 1600 VDC 7X16.5X2 |
4,981 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R76UN1470SE00JCAP FILM AUTO POLYPROP RAD |
2,138 | - |
|
Datasheet | Radial | 4700 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 135 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
F871BR124K330LCAP FILM POLYPROP RAD X1 |
9,749 | - |
|
Datasheet | Radial | 0.12 µF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|

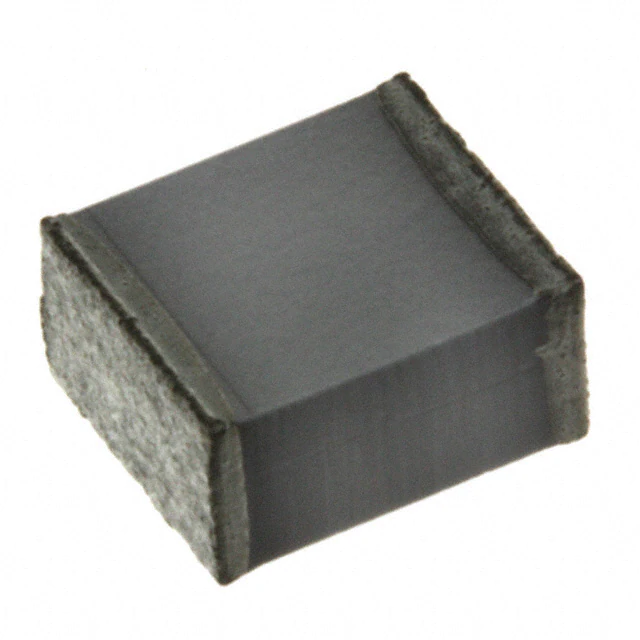

CB047D0224JBCCAP FILM 0.22UF 5% 63VDC 2220 |
8,333 | - |
|
Datasheet | 2220 (5750 Metric) | 0.22 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.228" L x 0.197" W (5.80mm x 5.00mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
F339X242730KFI2B0CAP FILM 0.27UF 10% 630VDC RAD |
2,418 | - |
|
Datasheet | Radial | 0.27 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
F339X242730KFM2B0CAP FILM 0.27UF 10% 630VDC RAD |
9,089 | - |
|
Datasheet | Radial | 0.27 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
F339X242730KFP2B0CAP FILM 0.27UF 10% 630VDC RAD |
4,192 | - |
|
Datasheet | Radial | 0.27 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
MKP385E3122AJFM2B0CAP FILM 0.012UF 5% 2KVDC RAD |
7,692 | - |
|
Datasheet | Radial | 0.012 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 263 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200, Y2 | High Temperature |
|
F340Y233930MFI2B0CAP FILM 0.039UF 20% 1KVDC RAD |
7,887 | - |
|
Datasheet | Radial | 0.039 µF | ±20% | 305V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
|
MKP385E3122AJFI2B0CAP FILM 0.012UF 5% 2KVDC RAD |
6,358 | - |
|
Datasheet | Radial | 0.012 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 263 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200, Y2 | High Temperature |
|
|
MKP385E3122AJFP2B0CAP FILM 0.012UF 5% 2KVDC RAD |
6,129 | - |
|
Datasheet | Radial | 0.012 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 263 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E36810KI02W0CAP FILM 0.068UF 10% 1KVDC RAD |
9,570 | - |
|
Datasheet | Radial | 0.068 µF | ±10% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | 54 mOhms | -40°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.713" (18.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E41863KI02W0CAP FILM 0.18UF 10% 630VDC RAD |
3,465 | - |
|
Datasheet | Radial | 0.18 µF | ±10% | 220V | 630V | Polypropylene (PP), Metallized | 26 mOhms | -40°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.713" (18.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
F462BS333M1K6RCAP |
2,617 | - |
|
Datasheet | Radial | 0.033 µF | ±20% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
MKP385E3122AKF02W0CAP FILM 0.012UF 10% 2KVDC RAD |
8,691 | - |
|
Datasheet | Radial | 0.012 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 263 mOhms | -40°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.654" (16.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200, Y2 | High Temperature |
|
|
F871BY224K330ACAP FILM POLYPROP RAD X1 |
9,602 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
MKP1841410254MCAP FILM 0.1UF 5% 250VDC RADIAL |
3,938 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
QXK2G104KTP7ZHFLCAP FILM 0.1UF 10% 400VDC RADIAL |
4,885 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.287" W (15.50mm x 7.30mm) | 0.665" (16.90mm) | PC Pins | 0.492" (12.50mm) | General Purpose | - | - |
|
BFC246718823CAP FILM 0.082UF 10% 250VDC RAD |
2,612 | - |
|
Datasheet | Radial | 0.082 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.173" W (12.50mm x 4.40mm) | 0.630" (16.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
Film Capacitors FAQ
What Film Capacitors components can I source from EGOO?
You can browse available Film Capacitors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Film Capacitors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
