Film Capacitors
Browse available Film Capacitors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "ECH-U1H151GX5")
|
ECH-U1H151GX5CAP FILM 150PF 2% 50VDC 0805 |
4,849 | - |
|
Datasheet | 0805 (2012 Metric) | 150 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
333MSR400KCAP FILM 0.03UF 10% 400VDC RAD |
3,897 | - |
|
Datasheet | Radial | 0.03 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.256" W (13.00mm x 6.50mm) | 0.413" (10.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
FKP2F012201D00JSSDCAP FILM 2200PF 5% 250VDC RAD |
3,804 | - |
|
Datasheet | Radial | 2200 pF | ±5% | 160V | 250V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
ECH-U1H181GX5CAP FILM 180PF 2% 50VDC 0805 |
3,548 | - |
|
Datasheet | 0805 (2012 Metric) | 180 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECH-U1H271GX5CAP FILM 270PF 2% 50VDC 0805 |
3,450 | - |
|
Datasheet | 0805 (2012 Metric) | 270 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E2564KFCAP FILM 0.56UF 10% 250VDC RAD |
2,282 | - |
|
Datasheet | Radial | 0.56 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
ECH-U1C332GX5CAP FILM 3300PF 2% 16VDC 0805 |
76,184 | - |
|
Datasheet | 0805 (2012 Metric) | 3300 pF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
R46KF247050N0KCAP FILM 0.047UF 10% 560VDC RAD |
51,027 | - |
|
Datasheet | Radial | 0.047 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
|
ECH-U1H122GX5CAP FILM 1200PF 2% 50VDC 0805 |
15,178 | - |
|
Datasheet | 0805 (2012 Metric) | 1200 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
FKS3G014703A00KSSDCAP FILM 4700PF 10% 400VDC RAD |
10,150 | - |
|
Datasheet | Radial | 4700 pF | ±10% | 250V | 400V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 100°C | Through Hole | 0.512" L x 0.118" W (13.00mm x 3.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
R82DC3330Z360JCAP FILM 0.33UF 5% 63VDC RADIAL |
8,537 | - |
|
Datasheet | Radial | 0.33 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.299" (7.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
ECH-U1H681GX5CAP FILM 680PF 2% 50VDC 0805 |
7,838 | - |
|
Datasheet | 0805 (2012 Metric) | 680 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|

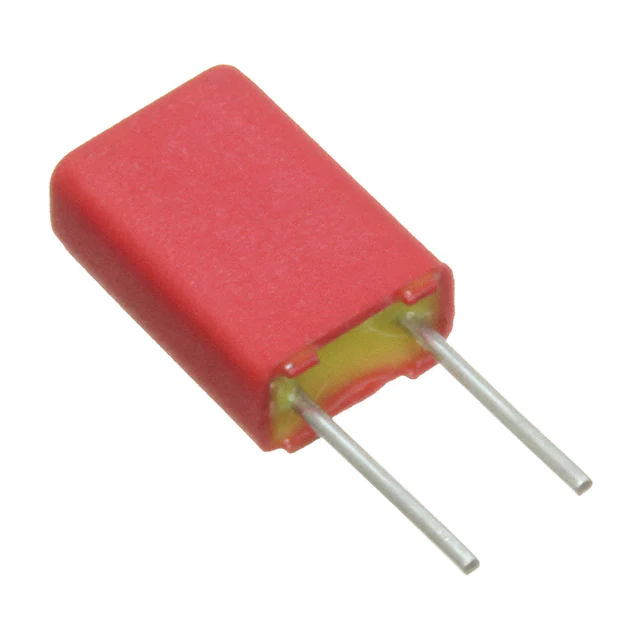

MKS0C021000B00KSSDCAP FILM 10000PF 10% 63VDC RAD |
6,737 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 100°C | Through Hole | 0.181" L x 0.098" W (4.60mm x 2.50mm) | 0.276" (7.00mm) | PC Pins | 0.098" (2.50mm) | General Purpose | - | - |
|
ECW-FD2W104KQCAP FILM 0.1UF 10% 450VDC RADIAL |
4,485 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496" L x 0.177" W (12.60mm x 4.50mm) | 0.547" (13.90mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R463I3100DQM1MCAP FILM 0.1UF 20% 630VDC RAD |
4,290 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECH-U1C272GX5CAP FILM 2700PF 2% 16VDC 0603 |
3,644 | - |
|
Datasheet | 0603 (1608 Metric) | 2700 pF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.033" (0.85mm) | Solder Pads | - | General Purpose | - | - |
|
R75PI247050H3JCAP FILM 0.047UF 5% 630VDC RAD |
2,679 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 23.7 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32521C1224K000CAP FILM 0.22UF 10% 100VDC RAD |
2,589 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.276" (7.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
890324025039CSCAP FILM 0.47UF 10% 275VAC RAD |
2,009 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
.jpg "ECH-U1H332GX5")
|
ECH-U1H332GX5CAP FILM 3300PF 2% 50VDC 1206 |
1,313 | - |
|
Datasheet | 1206 (3216 Metric) | 3300 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
Film Capacitors FAQ
What Film Capacitors components can I source from EGOO?
You can browse available Film Capacitors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Film Capacitors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
