Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
103MWR400KCAP FILM 10000PF 400VDC AXIAL |
4,402 | - |
|
Datasheet | Axial | 10000 pF | ±10% | 200V | 400V | Polyester, Metallized | 141.471 Ohms | -40°C ~ 105°C | Through Hole | 0.197" Dia x 0.453" L (5.00mm x 11.50mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
474MMR630KCAP FILM 0.47UF 10% 630VDC RAD |
595 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
473MWR250KCAP FILM 0.047UF 250VDC AXIAL |
3,542 | - |
|
Datasheet | Axial | 0.047 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.217" Dia x 0.551" L (5.50mm x 14.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
|
472MWR630KCAP FILM 4700PF 10% 630VDC AXIAL |
1,546 | - |
|
Datasheet | Axial | 4700 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.217" Dia x 0.453" L (5.50mm x 11.50mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
|
474MWR100KCAP FILM 0.47UF 10% 100VDC AXIAL |
602 | - |
|
Datasheet | Axial | 0.47 µF | ±10% | 63V | 100V | Polyester, Metallized | 3.01 Ohms | -40°C ~ 105°C | Through Hole | 0.276" Dia x 0.610" L (7.00mm x 15.50mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
|
224MWR250KCAP FILM 0.22UF 10% 250VDC AXIAL |
5,319 | - |
|
Datasheet | Axial | 0.22 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.276" Dia x 0.748" L (7.00mm x 19.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
|
103MWR630KCAP FILM 10000PF 630VDC AXIAL |
1,158 | - |
|
Datasheet | Axial | 10000 pF | ±10% | 220V | 630V | Polyester, Metallized | 141.471 Ohms | -40°C ~ 105°C | Through Hole | 0.236" Dia x 0.551" L (6.00mm x 14.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
223MPW400KCAP FILM 0.022UF 400VDC AXIAL |
162 | - |
|
Datasheet | Axial | 0.022 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | 8.038 Ohms | -55°C ~ 105°C | Through Hole | 0.276" Dia x 0.571" L (7.00mm x 14.50mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|

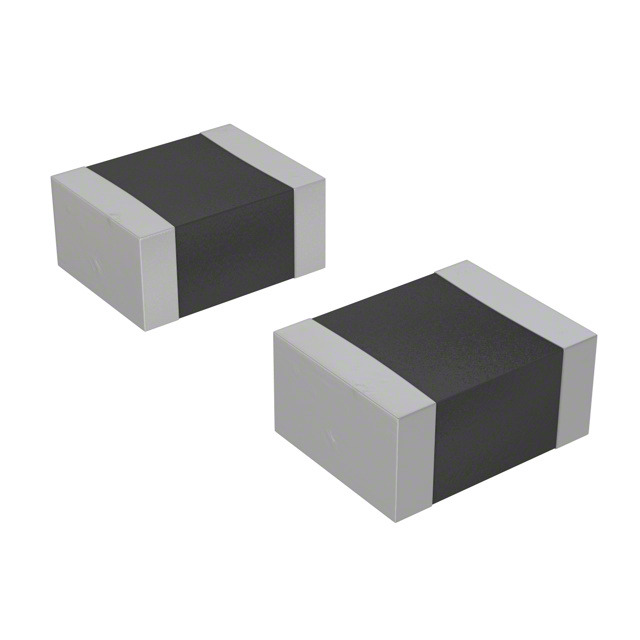

FCP1210C104J-G3CAP FILM 0.1UF 5% 16VDC 1210 |
4,155 | - |
|
Datasheet | 1210 (3225 Metric) | 0.1 µF | ±5% | - | 16V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) | Solder Pads | - | High Frequency, Switching | - | - |
|
|
224MWR100KCAP FILM 0.22UF 10% 100VDC AXIAL |
4,813 | - |
|
Datasheet | Axial | 0.22 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.256" Dia x 0.551" L (6.50mm x 14.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
