Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
942C12P47K-FCAP FILM 0.47UF 1.2KVDC AXIAL |
27 | - |
|
Datasheet | Axial | 0.47 µF | ±10% | 430V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.142" Dia x 1.811" L (29.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|

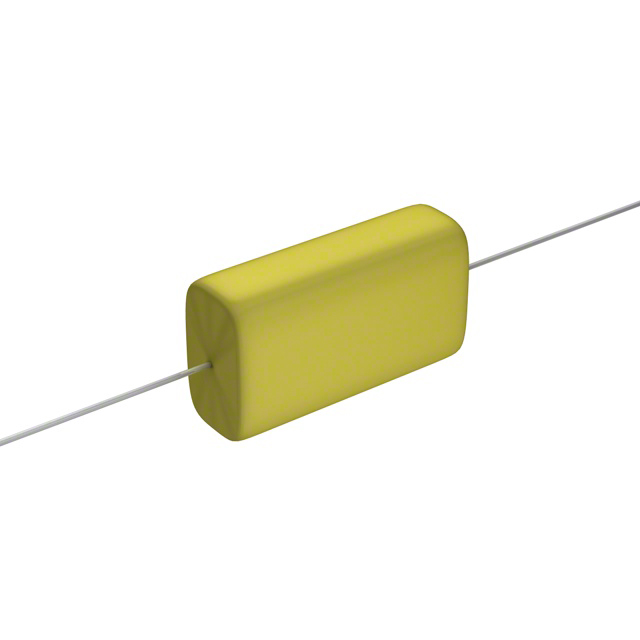

MMP6W1K-FCAP FILM 1UF 10% 630VDC AXIAL |
63 | - |
|
Datasheet | Axial | 1 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.866" W, 0.512" T x 1.535" L (22.00mm, 13.00mm x 39.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|
224PPA202KCAP FILM 0.22UF 10% 2KVDC AXIAL |
100 | - |
|
Datasheet | Axial | 0.22 µF | ±10% | 650V | 2000V (2kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 85°C | Through Hole | 0.906" Dia x 1.811" L (23.00mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
940C12P33K-FCAP FILM 0.33UF 1.2KVDC AXIAL |
66 | - |
|
Datasheet | Axial | 0.33 µF | ±10% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 0.787" Dia x 1.811" L (20.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|

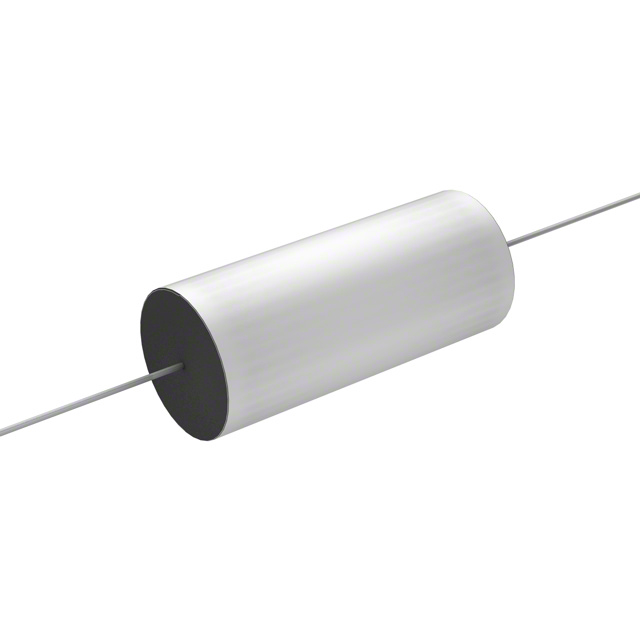

WMF4P22K-FCAP FILM 0.22UF 10% 400VDC AXIAL |
73 | - |
|
Datasheet | Axial | 0.22 µF | ±10% | - | 400V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.594" Dia x 1.374" L (15.10mm x 34.90mm) | - | PC Pins | - | General Purpose | - | - |
|
|
942C12P22K-FCAP FILM 0.22UF 1.2KVDC AXIAL |
51 | - |
|
Datasheet | Axial | 0.22 µF | ±10% | 430V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.043" Dia x 1.339" L (26.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
SFA44T7.5J288B-00DUCAP FILM 7.5UF 5% 440VAC RADIAL |
52 | - |
|
Datasheet | Radial, Can | 7.5 µF | ±5% | 440V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 3.000" (76.20mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
505PHC400KCAP FILM 5UF 10% 400VDC AXIAL |
71 | - |
|
Datasheet | Axial | 5 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 7.4 mOhms | -40°C ~ 85°C | Through Hole | 0.886" Dia x 1.811" L (22.50mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
|
685PHC400KCAP FILM 6.8UF 10% 400VDC AXIAL |
98 | - |
|
Datasheet | Axial | 6.8 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 6.4 mOhms | -40°C ~ 85°C | Through Hole | 1.024" Dia x 1.811" L (26.00mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
BLH156K102B092DC LINK, THB, 85/85, AEC-Q200 |
16 | - |
|
Datasheet | Radial | 15 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
