Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
174HC1700K2SM6CAP FILM 0.17UF 10% 700VAC CHASS |
4 | - |
|
Datasheet | Nonstandard | 0.17 µF | ±10% | 700V | - | Polypropylene (PP) | 1.2 mOhms | -40°C ~ 85°C | Chassis Mount | 2.677" L x 1.189" W (68.00mm x 30.20mm) | 1.201" (30.50mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - | - |
|

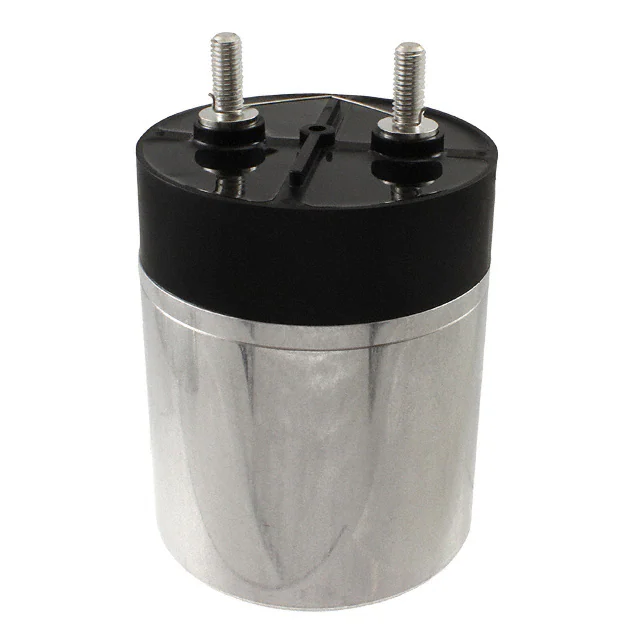

947D681K801BFJSNCAP FILM 680UF 10% 800VDC RADIAL |
3 | - |
|
Datasheet | Radial, Can | 680 µF | ±10% | 230V | 800V | Polypropylene (PP), Metallized | - | -45°C ~ 85°C | Chassis, Stud Mount | 3.543" Dia (90.00mm) | 4.409" (112.00mm) | Threaded, Male | - | DC Link, DC Filtering | - | - |
|

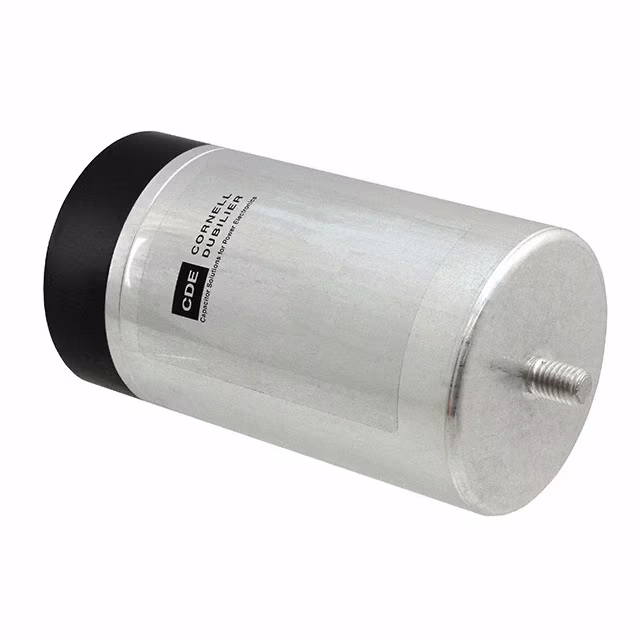

947D801K901BLMSNCAP FILM 800UF 10% 900VDC RADIAL |
23 | - |
|
Datasheet | Radial, Can | 800 µF | ±10% | 230V | 900V | Polypropylene (PP), Metallized | - | -45°C ~ 85°C | Chassis, Stud Mount | 3.543" Dia (90.00mm) | 6.417" (163.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
|
947D451K102AGGSNCAP FILM 450UF 10% 1KVDC RADIAL |
9 | - |
|
Datasheet | Radial, Can | 450 µF | ±10% | 230V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.3 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.000" (127.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
947D471K122CHRSNCAP FILM 470UF 10% 1.2KVDC RAD |
7 | - |
|
Datasheet | Radial, Can | 470 µF | ±10% | 230V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.2 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.937" Dia (100.00mm) | 5.394" (137.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
|
947D771K122DLRSNCAP FILM 770UF 10% 1.2KVDC RAD |
11 | - |
|
Datasheet | Radial, Can | 770 µF | ±10% | 230V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 6.417" (163.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
|
505LC3400K5LM8CAP FILM 5UF 10% 400VAC SMD |
8 | - |
|
Datasheet | Nonstandard | 5 µF | ±10% | 400V | - | Polypropylene (PP) | 0.1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.071" L x 3.071" W (78.00mm x 78.00mm) | 1.358" (34.50mm) | Solder Pads | - | Conduction Cooled; High Pulse, DV/DT | - | - |
|
|
947C971K102DLHSCAP FILM 970UF 10% 1KVDC RADIAL |
18 | - |
|
Datasheet | Radial, Can | 970 µF | ±10% | 230V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 6.496" (165.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
|
664HC2700K2CM6CAP FILM 0.66UF 700VAC CHAS MT |
7 | - |
|
Datasheet | Nonstandard | 0.66 µF | ±10% | 700V | - | Polypropylene (PP) | 0.4 mOhms | -40°C ~ 85°C | Chassis Mount | 2.677" L x 1.181" W (68.00mm x 30.00mm) | 1.193" (30.30mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - | - |
|
|
334HC3700K2EM8CAP FILM 0.33UF 700VAC CHAS MT |
6 | - |
|
Datasheet | Nonstandard | 0.33 µF | ±10% | 700V | - | Polypropylene (PP) | 1 mOhms | -40°C ~ 85°C | Chassis Mount | 2.205" L x 1.189" W (56.00mm x 30.20mm) | 2.618" (66.50mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
