Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

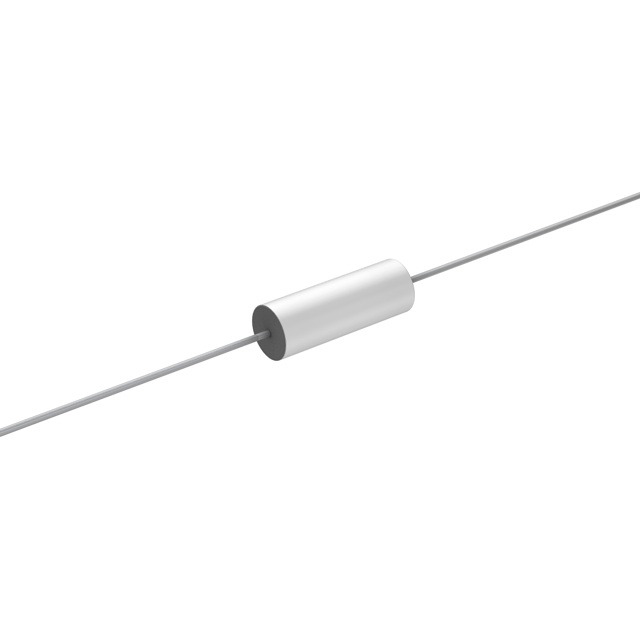

WMF1D47K-FCAP FILM 4700PF 10% 100VDC AXIAL |
488 | - |
|
Datasheet | Axial | 4700 pF | ±10% | - | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.197" Dia x 0.563" L (5.00mm x 14.30mm) | - | PC Pins | - | General Purpose | - | - |
|
715P47396LA3CAP FILM 0.047UF 10% 600VDC RAD |
997 | - |
|
Datasheet | Radial | 0.047 µF | ±10% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.520" Dia x 1.252" L (13.20mm x 31.80mm) | 0.811" (20.60mm) | PC Pins | 1.031" (26.20mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
715P47356LD3CAP FILM 0.047UF 5% 600VDC RAD |
344 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.520" Dia x 1.252" L (13.20mm x 31.80mm) | 0.811" (20.60mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
715P68256JD3CAP FILM 6800PF 5% 600VDC RADIAL |
248 | - |
|
Datasheet | Radial | 6800 pF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.382" Dia x 0.701" L (9.70mm x 17.80mm) | 0.673" (17.10mm) | PC Pins | 0.375" (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
942C20S1K-FCAP FILM 10000PF 10% 2KVDC AXIAL |
2,044 | - |
|
Datasheet | Axial | 10000 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 50 mOhms | -55°C ~ 105°C | Through Hole | 0.472" Dia x 1.339" L (12.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
225P10391WD3CAP FILM 10000PF 10% 100VDC RAD |
290 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.701" L x 0.252" W (17.80mm x 6.40mm) | 0.350" (8.90mm) | PC Pins | 0.374" (9.50mm) | Audio; DC Link, DC Filtering | - | - |
|
|
225P10291WD3CAP FILM 1000PF 10% 100VDC RAD |
8,239 | - |
|
Datasheet | Radial | 1000 pF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700" L x 0.252" W (17.78mm x 6.40mm) | 0.350" (8.90mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
225P47491XD3CAP FILM 0.47UF 10% 100VDC RAD |
374 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799" L x 0.598" W (20.30mm x 15.20mm) | 0.709" (18.00mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
105PHC400KCAP FILM 1UF 10% 400VDC AXIAL |
219 | - |
|
Datasheet | Axial | 1 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 6.7 mOhms | -40°C ~ 85°C | Through Hole | 0.512" Dia x 1.339" L (13.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
106MMR250KCAP FILM 10UF 10% 250VDC RADIAL |
1,562 | - |
|
Datasheet | Radial | 10 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.650" W (31.00mm x 16.50mm) | 1.043" (26.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
