Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

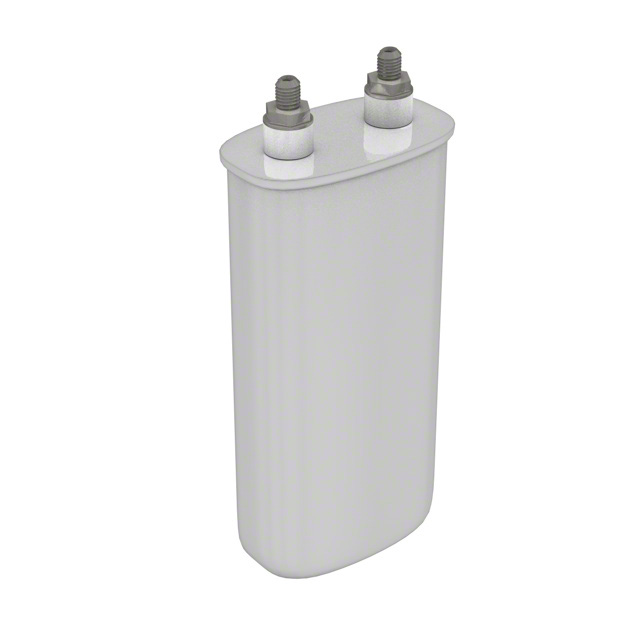

SCRN247R-FCAP FILM 0.5UF 10% 2KVPK RADIAL |
245 | - |
|
Datasheet | Radial, Can | 0.5 µF | ±10% | 2000Vpk (2KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.690" (68.33mm) | Threaded, Male | 0.810" (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
SCRN248R-FCAP FILM 1UF 10% 2KVPK RADIAL |
238 | - |
|
Datasheet | Radial, Can | 1 µF | ±10% | 2000Vpk (2KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 3.190" (81.03mm) | Threaded, Male | 0.810" (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
.jpg "944U660K102AAM")
|
944U660K102AAMCAP FILM 66UF 10% 1KVDC RADIAL |
178 | - |
|
Datasheet | Radial, Can | 66 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 0.6 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 1.614" (41.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
.JPG "SFD66T30K391B-F")
|

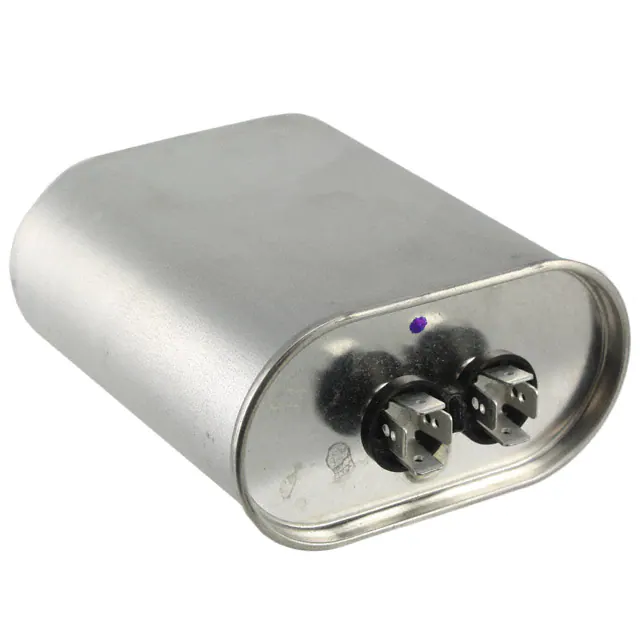

SFD66T30K391B-FCAP FILM 30UF 10% 660VAC RADIAL |
47 | - |
|
Datasheet | Radial, Can | 30 µF | ±10% | 660V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip | 4.030" (102.36mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
944U101K102ABICAP FILM 100UF 10% 1KVDC RADIAL |
67 | - |
|
Datasheet | Radial, Can | 100 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 0.8 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.047" (52.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
|
SFD66T25K391B-FCAP FILM 25UF 10% 660VAC RADIAL |
30 | - |
|
Datasheet | Radial, Can | 25 µF | ±10% | 660V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip | 4.030" (102.36mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
|
944U221K801ACMCAP FILM 220UF 10% 800VDC RADIAL |
39 | - |
|
Datasheet | Radial, Can | 220 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.559" (65.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
|
944U101K801AAMCAP FILM 100UF 10% 800VDC RADIAL |
216 | - |
|
Datasheet | Radial, Can | 100 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 0.5 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 1.614" (41.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
|
944U520K142ABMCAP FILM 52UF 10% 1.4KVDC RADIAL |
37 | - |
|
Datasheet | Radial, Can | 52 µF | ±10% | - | 1400V (1.4kV) | Polypropylene (PP), Metallized | 1.1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.047" (52.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
103MMR400KCAP FILM 10000PF 10% 400VDC RAD |
54,046 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.413" L x 0.177" W (10.50mm x 4.50mm) | 0.295" (7.50mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
