Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMT1S22K-FCAP FILM 0.022UF 10% 100VDC RAD |
1,500 | - |
|
Datasheet | Radial | 0.022 µF | ±10% | 65V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.256" W (13.00mm x 6.50mm) | 0.484" (12.30mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
DMT1D47K-FCAP FILM 4700PF 10% 100VDC RAD |
498 | - |
|
Datasheet | Radial | 4700 pF | ±10% | 65V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.209" W (13.00mm x 5.30mm) | 0.448" (11.37mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
DMT2S47K-FCAP FILM 0.047UF 10% 250VDC RAD |
2,984 | - |
|
Datasheet | Radial | 0.047 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.693" L x 0.295" W (17.60mm x 7.50mm) | 0.660" (16.76mm) | PC Pins | 0.543" (13.80mm) | General Purpose | - | - |
|

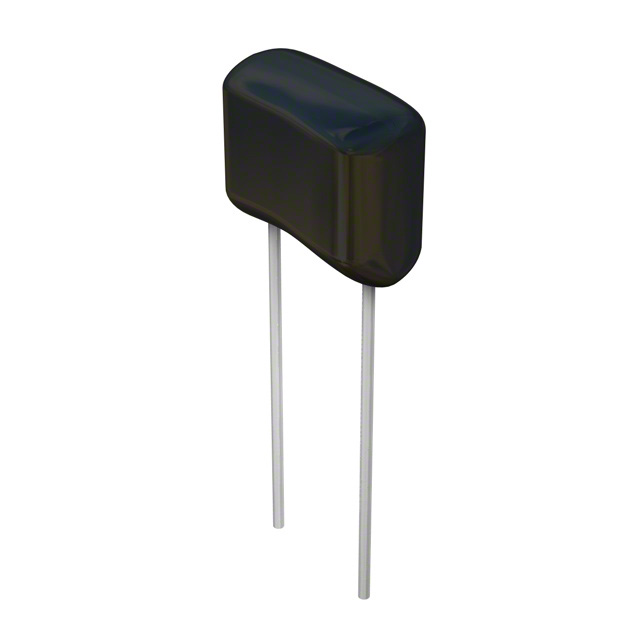

DMT1S68K-FCAP FILM 0.068UF 10% 100VDC RAD |
1,000 | - |
|
Datasheet | Radial | 0.068 µF | ±10% | 65V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.559" L x 0.276" W (14.20mm x 7.00mm) | 0.554" (14.06mm) | PC Pins | 0.421" (10.70mm) | General Purpose | - | - |
|
MYH154K300G20CAP FILM 0.15UF 10% 1.5KVDC RAD |
915 | - |
|
Datasheet | Radial | 0.15 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
150333K400BBCAP FILM 0.033UF 400VDC AXIAL |
2,997 | - |
|
Datasheet | Axial | 0.033 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236" Dia x 0.650" L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
716P10354JA3CAP FILM 10000PF 5% 400VDC RAD |
972 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.701" L x 0.272" W (17.80mm x 6.90mm) | 0.713" (18.10mm) | PC Pins | 0.500" (12.70mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
MXT225K305H23CAP FILM 2.2UF 10% 630VDC RADIAL |
440 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 0.976" (24.80mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
MXT225M305G24CAP FILM 2.2UF 20% 630VDC RADIAL |
1,706 | - |
|
Datasheet | Radial | 2.2 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.571" W (26.00mm x 14.50mm) | 1.181" (30.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
MYH154K300H11CAP FILM 0.15UF 10% 1.5KVDC RAD |
880 | - |
|
Datasheet | Radial | 0.15 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.740" (18.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
