Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MYH684K300H28CAP FILM 0.68UF 10% 1.5KVDC RAD |
240 | - |
|
Datasheet | Radial | 0.68 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.331" (33.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
MXT685K305N30CAP FILM 6.8UF 10% 630VDC RADIAL |
494 | - |
|
Datasheet | Radial | 6.8 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 0.866" W (42.00mm x 22.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
MYH684K300N24CAP FILM 0.68UF 10% 1.5KVDC RAD |
963 | - |
|
Datasheet | Radial | 0.68 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 0.669" W (42.00mm x 17.00mm) | 1.134" (28.80mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
715P47452MD3CAP FILM 0.47UF 5% 200VDC RADIAL |
974 | - |
|
Datasheet | Radial | 0.47 µF | ±5% | 155V | 200V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.598" Dia x 1.650" L (15.20mm x 41.90mm) | 0.913" (23.20mm) | PC Pins | 1.094" (28.80mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
255PHC600KCAP FILM 2.5UF 10% 600VDC AXIAL |
186 | - |
|
Datasheet | Axial | 2.5 µF | ±10% | 330V | 600V | Polypropylene (PP), Metallized | 4.4 mOhms | -40°C ~ 85°C | Through Hole | 0.866" Dia x 1.811" L (22.00mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
FCN3925E334K-VCAP FILM 0.33UF 10% 250VDC 3925 |
1,000 | - |
|
Datasheet | 3925 (9863 Metric) | 0.33 µF | ±10% | - | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.386" L x 0.248" W (9.80mm x 6.30mm) | 0.201" (5.10mm) | Solder Pads | - | General Purpose | - | - |
|
930C4P22K-FCAP FILM 0.22UF 10% 400VDC AXIAL |
150 | - |
|
Datasheet | Axial | 0.22 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.386" Dia x 1.000" L (9.80mm x 25.40mm) | - | PC Pins | - | General Purpose | - | - |
|

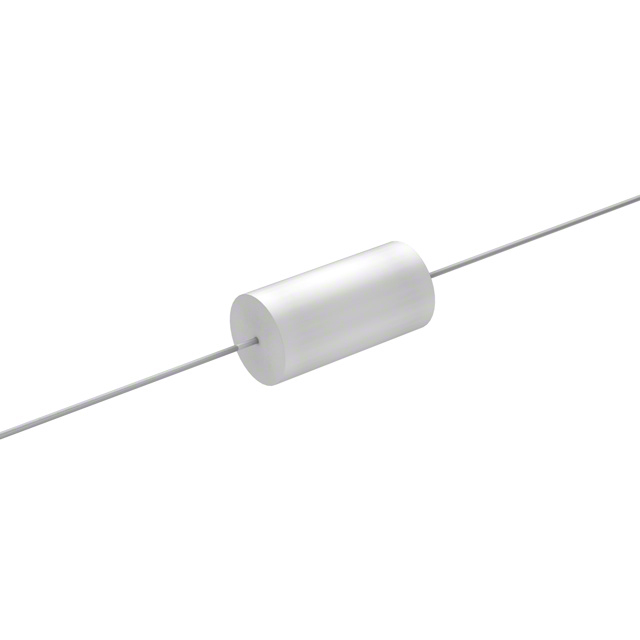

MMWA2P33K-FCAP FILM 0.33UF 10% 250VDC AXIAL |
496 | - |
|
Datasheet | Axial | 0.33 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.366" Dia x 0.728" L (9.30mm x 18.50mm) | - | PC Pins | - | General Purpose | - | - |
|
DPFF8S33J-FCAP FILM 0.033UF 5% 800VDC RAD |
2,100 | - |
|
Datasheet | Radial | 0.033 µF | ±5% | 450V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.299" L x 0.701" W (33.00mm x 17.80mm) | 0.701" (17.80mm) | PC Pins | 0.720" (18.30mm) | High Pulse, DV/DT | - | - |
|
|
MYH824K300H30CAP FILM 0.82UF 10% 1.5KVDC RAD |
128 | - |
|
Datasheet | Radial | 0.82 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
