Film Capacitors
Browse available Film Capacitors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32022A3153M000CAP FILM 0.015UF 20% 1.5KVDC RAD |
117,114 | - |
|
Datasheet | Radial | 0.015 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
ECW-FD2W225K4CAP FILM 2.2UF 10% 450VDC RADIAL |
20,569 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.437" W (17.50mm x 11.10mm) | 0.760" (19.30mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R413I222000M1MCAP FILM 0.022UF 20% 1KVDC RAD |
18,231 | - |
|
Datasheet | Radial | 0.022 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|

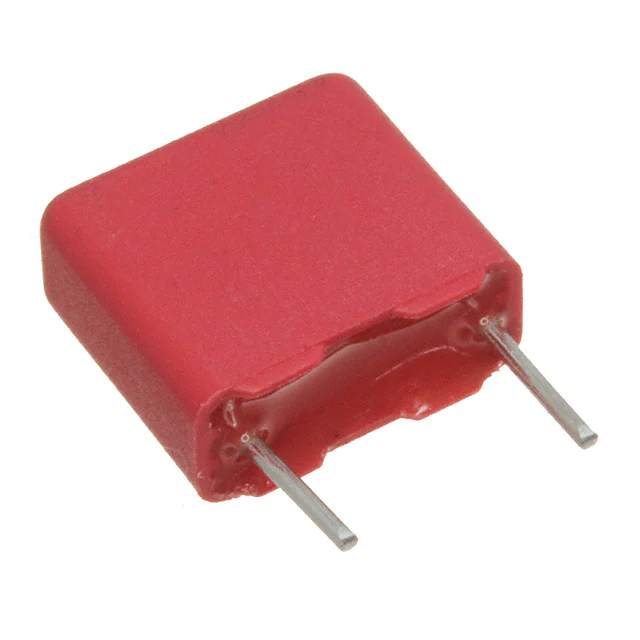

MKP4F031002D00JSSDCAP FILM 0.1UF 5% 250VDC RAD |
6,556 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.374" (9.50mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
ECQ-E6224KFCAP FILM 0.22UF 10% 630VDC RAD |
3,935 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECQ-E1105KFCAP FILM 1UF 10% 100VDC RADIAL |
2,879 | - |
|
Datasheet | Radial | 1 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" L x 0.264" W (12.00mm x 6.70mm) | 0.591" (15.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
R474N310050A1KV057CAP FILM 0.1UF 10% 1KVDC RADIAL |
1,230 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
MKS2F034701M00KSSDCAP FILM 0.47UF 10% 250VDC RAD |
1,052 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.335" W (7.20mm x 8.50mm) | 0.551" (14.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
MKS0C032200C00MSSDCAP FILM 0.22UF 20% 63VDC RAD |
825 | - |
|
Datasheet | Radial | 0.22 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 100°C | Through Hole | 0.181" L x 0.118" W (4.60mm x 3.00mm) | 0.295" (7.50mm) | PC Pins | 0.098" (2.50mm) | General Purpose | - | - |
|
ECW-FD2J474JCAP FILM 0.47UF 5% 630VDC RADIAL |
642 | - |
|
Datasheet | Radial | 0.47 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701" L x 0.307" W (17.80mm x 7.80mm) | 0.500" (12.70mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
CB017E0103JBACAP FILM 10000PF 5% 100VDC 1206 |
19,316 | - |
|
Datasheet | 1206 (3216 Metric) | 10000 pF | ±5% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.045" (1.15mm) | - | - | General Purpose | - | Low ESR, Low ESL |
|
BFC237021104CAP FILM 0.1UF 10% 100VDC RADIAL |
11,506 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
R76QD0220SE00JCAP FILM 220PF 5% 1KVDC RADIAL |
7,605 | - |
|
Datasheet | Radial | 220 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.319" (8.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

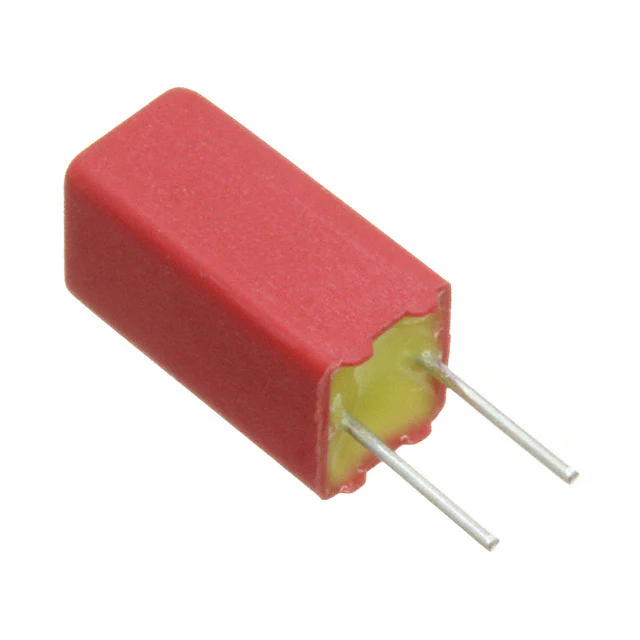

FKP0D021000F00JSSDCAP FILM 10000PF 5% 100VDC RAD |
6,684 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.181" L x 0.217" W (4.60mm x 5.50mm) | 0.394" (10.00mm) | PC Pins | 0.098" (2.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
474MKP275KBCAP FILM 0.47UF 10% 310VAC RAD |
5,693 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.295" W (26.00mm x 7.50mm) | 0.661" (16.80mm) | - | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
474MSR250KCAP FILM 0.47UF 10% 250VDC RAD |
5,584 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 160V | 250V | Polyester, Metallized | 3.763 Ohms | -55°C ~ 125°C | Through Hole | 0.886" L x 0.295" W (22.50mm x 7.50mm) | 0.492" (12.50mm) | PC Pins | 0.787" (20.00mm) | General Purpose | - | - |
|
B32652A7223J000CAP FILM 0.022UF 5% 1.25KVDC RAD |
5,251 | - |
|
Datasheet | Radial | 0.022 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
R76UI0100SE40JCAP FILM 100PF 5% 2KVDC RADIAL |
4,753 | - |
|
Datasheet | Radial | 100 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 6.366 Ohms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
CB017D0103JBACAP FILM 10000PF 5% 63VDC 1206 |
3,804 | - |
|
Datasheet | 1206 (3216 Metric) | 10000 pF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.045" (1.15mm) | Solder Pads | - | General Purpose | - | - |
|
FKP1R014704D00MSSDCAP FILM 4700PF 20% 1.25KVDC RAD |
3,794 | - |
|
Datasheet | Radial | 4700 pF | ±20% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
Film Capacitors FAQ
What Film Capacitors components can I source from EGOO?
You can browse available Film Capacitors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Film Capacitors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
