Film Capacitors
Browse available Film Capacitors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R413F14700000MCAP FILM 4700PF 20% 1KVDC RADIAL |
13 | - |
|
Datasheet | Radial | 4700 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
B32672L2105J003CAP FILM 1UF |
4,253 | - |
|
Datasheet | Radial | 1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | High Temperature |
|
B32562J6224K000CAP FILM 0.22UF 10% 400VDC 2DIP |
3,290 | - |
|
Datasheet | 2-DIP | 0.22 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.650" L x 0.185" W (16.50mm x 4.70mm) | 0.295" (7.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|

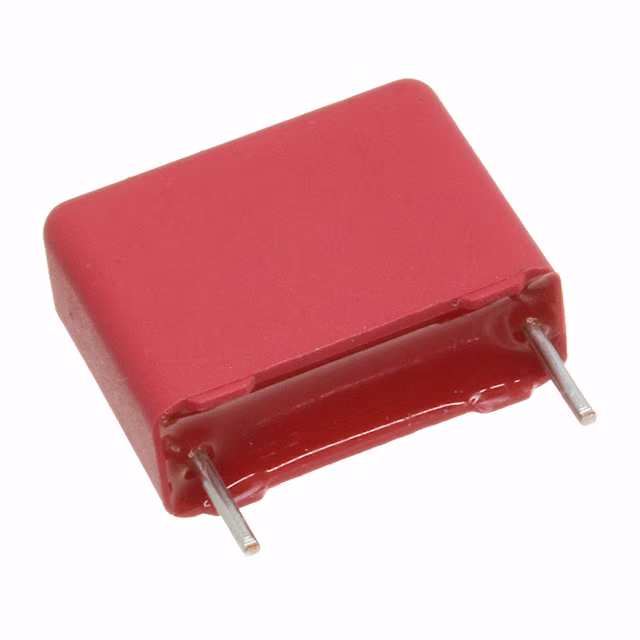

MKS4F036804D00KSSDCAP FILM 0.68UF 10% 250VDC RAD |
9,691 | - |
|
Datasheet | Radial | 0.68 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
ECW-FD2W474P1CAP FILM 0.47UF 5% 450VDC RADIAL |
5 | - |
|
Datasheet | Radial | 0.47 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496" L x 0.256" W (12.60mm x 6.50mm) | 0.441" (11.20mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R71PI347050H6KFILM, RADIAL, PULSE, SINGLE META |
1 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 220V | 630V | Polypropylene (PP), Metallized | 59 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
 Series Style B.jpg "ECW-F2W104JAQ")
|
ECW-F2W104JAQCAP FILM 0.1UF 5% 450VDC RADIAL |
4,586 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.201" W (13.00mm x 5.10mm) | 0.622" (15.80mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
890324026018CSCAP FILM 0.56UF 10% 275VAC RAD |
7,860 | - |
|
Datasheet | Radial | 0.56 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.295" W (26.00mm x 7.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R46KN31505001KCAP FILM 0.15UF 10% 560VDC RAD |
7,539 | - |
|
Datasheet | Radial | 0.15 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32671P6683K000CAP FILM 0.068UF 10% 630VDC RAD |
6 | - |
|
Datasheet | Radial | 0.068 µF | ±10% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
R75PI312050H3JCAP FILM 0.12UF 5% 630VDC RADIAL |
4,118 | - |
|
Datasheet | Radial | 0.12 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 13.3 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R46KF310040P0MCAP FILM 0.1UF 20% 560VDC RADIAL |
18 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E1684KFCAP FILM 0.68UF 10% 100VDC RAD |
3,974 | - |
|
Datasheet | Radial | 0.68 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.508" (12.90mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
PHE426KA5560JR05CAP FILM 0.056UF 5% 400VDC RAD |
5,515 | - |
|
Datasheet | Radial | 0.056 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R46KI322000P0KCAP FILM 0.22UF 10% 560VDC RAD |
5,653 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
MKS4F033302F00KSSDCAP FILM 0.33UF 10% 250VDC RAD |
12 | - |
|
Datasheet | Radial | 0.33 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.406" L x 0.224" W (10.30mm x 5.70mm) | 0.492" (12.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
F861AL104K310ACAP FILM 0.1UF 10% 310VAC RADIAL |
9,722 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.374" W (13.00mm x 9.50mm) | 0.295" (7.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
|
ECW-HA3C752H4CAP FILM 7500PF 3% 1.6KVDC RAD |
5,651 | - |
|
Datasheet | Radial | 7500 pF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701" L x 0.256" W (17.80mm x 6.50mm) | 0.488" (12.40mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
R46KF310000M1KCAP FILM 0.1UF 10% 560VDC RADIAL |
5,090 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
R46KN315040H1MCAP FILM 0.15UF 20% 560VDC RAD |
6,496 | - |
|
Datasheet | Radial | 0.15 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors FAQ
What Film Capacitors components can I source from EGOO?
You can browse available Film Capacitors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Film Capacitors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
