Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32933A3224K189CAP FILM 0.22UF 10% 305VAC RAD |
4,244 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|

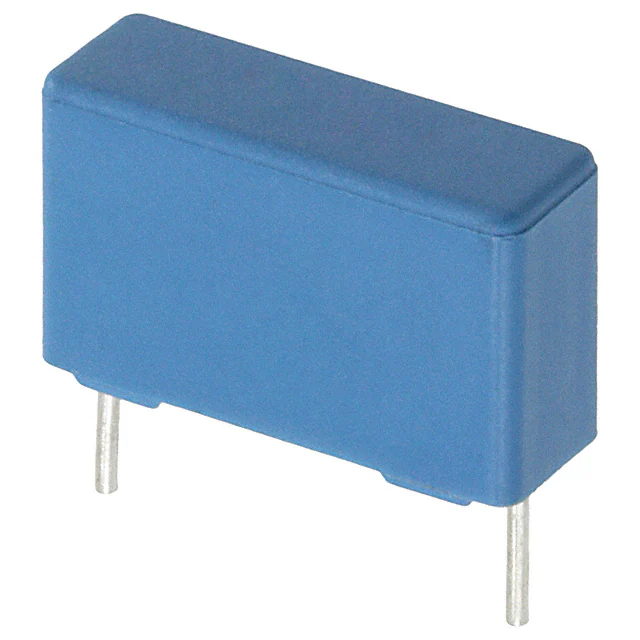

B32672P5334K000CAP FILM 0.33UF 10% 520VDC RAD |
5,170 | - |
|
Datasheet | Radial | 0.33 µF | ±10% | 200V | 520V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
B81123C1222M289CAP FILM 2200PF 20% 500VAC RAD |
15,900 | - |
|
Datasheet | Radial | 2200 pF | ±20% | 500V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | 85C/85% Humidity |
|
B32682A2102J000CAP FILM 1000PF 5% 2KVDC RADIAL |
1,749 | - |
|
Datasheet | Radial | 1000 pF | ±5% | 550V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
B32522C3105J000CAP FILM 1UF 5% 250VDC RADIAL |
907 | - |
|
Datasheet | Radial | 1 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32923H3684MCAP FILM 0.68UF 20% 630VDC RAD |
727 | - |
|
Datasheet | Radial | 0.68 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|

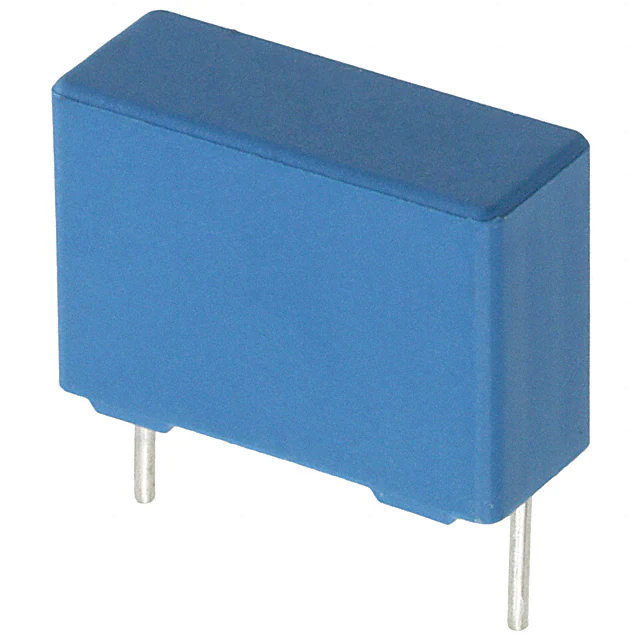

B32672P5474K000CAP FILM 0.47UF 10% 520VDC RAD |
5,385 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 200V | 520V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
B32672P6474J000CAP FILM 0.47UF 5% 630V RADIAL |
2,321 | - |
|
Datasheet | Radial | 0.47 µF | ±5% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; Power Factor Correction (PFC) | AEC-Q200 | - |
|
B32672P6474K000CAP FILM 0.47UF 10% 630VDC RAD |
2,219 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
B32653A4474K000CAP FILM 0.47UF 10% 400VDC RAD |
523 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
