Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32676G6825K000CAP FILM 8.2UF 10% 630VDC RADIAL |
429 | - |
|
Datasheet | Radial | 8.2 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
B32776H7685K000CAP FILM 6.8UF 10% 1.6KVDC RAD |
103 | - |
|
Datasheet | Radial | 6.8 µF | ±10% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | 6.7 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.890" (48.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life |
|
|
B32656S8105K566CAP FILM 1UF 10% 850VDC SCREW |
133 | - |
|
Datasheet | Rectangular Box | 1 µF | ±10% | 450V | 850V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.709" W (42.00mm x 18.00mm) | 1.280" (32.50mm) | Screw Terminals | 0.945" (24.00mm) | Snubber | AEC-Q200 | Low ESL |
|

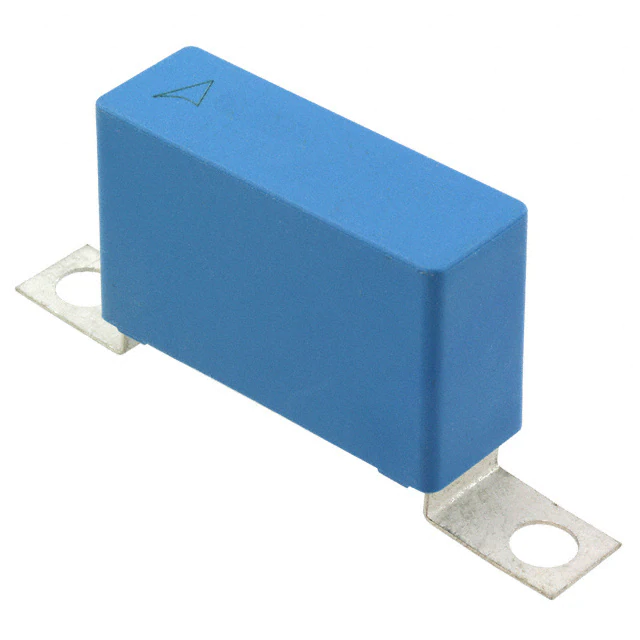

B32656S0474K563CAP FILM 0.47UF 10% 1KVDC SCREW |
171 | - |
|
Datasheet | Rectangular Box | 0.47 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.551" W (42.00mm x 14.00mm) | 0.984" (25.00mm) | Screw Terminals | 2.244" (57.00mm) | Snubber | AEC-Q200 | Low ESL |
|
|
B32776P7126K000CAP FILM 12UF 10% 700VDC RADIAL |
639 | - |
|
Datasheet | Radial | 12 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 125°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
|
B32676G6126K000CAP FILM 12UF 10% 630VDC RADIAL |
424 | - |
|
Datasheet | Radial | 12 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
B32778P8276K000CAP FILM 27UF 10% 840VDC RADIAL |
216 | - |
|
Datasheet | Radial | 27 µF | ±10% | - | 840V | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 125°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
|
B32656S7334K566CAP FILM 0.33UF 1.25KVDC QC TERM |
192 | - |
|
Datasheet | Rectangular Box | 0.33 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 9.5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.630" W (42.00mm x 16.00mm) | 1.122" (28.50mm) | Screw Terminals | 0.945" (24.00mm) | Snubber | AEC-Q200 | Low ESL |
|
B32776E0166K000CAP FILM 16UF 10% 1.1KVDC RADIAL |
386 | - |
|
Datasheet | Radial | 16 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 7.8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32776P6226K000CAP FILM 22UF 10% 630VDC RADIAL |
438 | - |
|
Datasheet | Radial - 4 Leads | 22 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 3.2 mOhms | -40°C ~ 125°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 0.965" (24.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
