Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32776Z7206K000FILM CAP MKP DC FILTERING - 1100 |
7,194 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 5.2 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.890" (48.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32778Z4107K000CAP FILM 100UF 500VDC RDL 4 LEAD |
7,087 | - |
|
Datasheet | Radial - 4 Leads | 100 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 4.3 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32916A5225M000CAP FILM 2.2UF 20% 1KVDC RADIAL |
9,909 | - |
|
Datasheet | Radial | - | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
B33331V7506J080CAP FILM 50UF 5% 460VAC RADIAL |
1 | - |
|
Datasheet | Radial, Can | 50 µF | ±5% | 460V | - | Polypropylene (PP), Metallized | 14 mOhms | -40°C ~ 85°C | Chassis Mount | 1.969" Dia (50.00mm) | 4.016" (102.00mm) | Quick Connect - 0.250" (6.3mm) | - | General Purpose | - | - |
|
B32678G1206K000CAP FILM 20UF 10% 750VDC RADIAL |
6,256 | - |
|
Datasheet | Radial | 20 µF | ±10% | - | 750V | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
B32758G3406K000CAP FILM 40UF 10% 630VDC RADIAL |
5,797 | - |
|
Datasheet | Radial - 4 Leads | 40 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | 3.4 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.496" W (57.50mm x 38.00mm) | 2.264" (57.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | - |
|
|
B32718H1406K000MKP DC FILTERING - 1100VDC, 40UF |
6,602 | - |
|
Datasheet | Radial - 4 Leads | 40 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4.2 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.496" W (57.50mm x 38.00mm) | 2.264" (57.50mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | Long Life |
|
|
B32758G8306K000CAP FILM 30UF 10% 600VDC RADIAL |
5,940 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±10% | 350V | 600V | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.496" W (57.50mm x 38.00mm) | 2.264" (57.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | - |
|
B32778G9506K000CAP FILM 50UF 900VDC RAD 4 LEAD |
3,664 | - |
|
Datasheet | Radial - 4 Leads | 50 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 5.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|

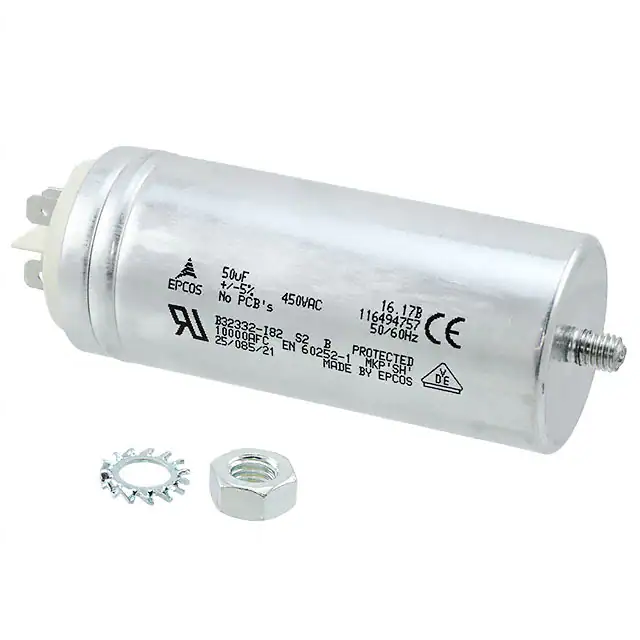

B32332I6506J082CAP FILM 50UF 5% 450VAC RADIAL |
9,984 | - |
|
Datasheet | Radial, Can | 50 µF | ±5% | 450V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 4.173" (106.00mm) | Quick Connect, Disconnect | - | Motor Run | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
