Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32526T3156K000CAP FILM 15UF 10% 250VDC RADIAL |
9,920 | - |
|
Datasheet | Radial | 15 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
B33331V7256J080CAP FILM 25UF 5% 460VAC RADIAL |
5 | - |
|
Datasheet | Radial, Can | 25 µF | ±5% | 460V | - | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 85°C | Chassis Mount | 1.772" Dia (45.00mm) | 3.425" (87.00mm) | Quick Connect - 0.250" (6.3mm) | - | General Purpose | - | - |
|
B32778Z4117K000CAP FILM 110UF 500VDC RDL 4 LEAD |
6,914 | - |
|
Datasheet | Radial - 4 Leads | 110 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32656S7684K565CAP FILM 0.68UF 1.25KVDC SCREW |
5,641 | - |
|
Datasheet | Rectangular Box | 0.68 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | Screw Terminals | 0.866" (22.00mm) | Snubber | AEC-Q200 | Low ESL |
|
B32320I4886K00088MFD 450V PP 50X57 PBT 5 PIN |
5,360 | - |
|
Datasheet | Radial, Can - 5 Lead | 88 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 2.4 mOhms | -40°C ~ 85°C | Through Hole | 1.969" Dia (50.00mm) | 2.244" (57.00mm) | Solder Lug | - | General Purpose | - | Long Life |
|

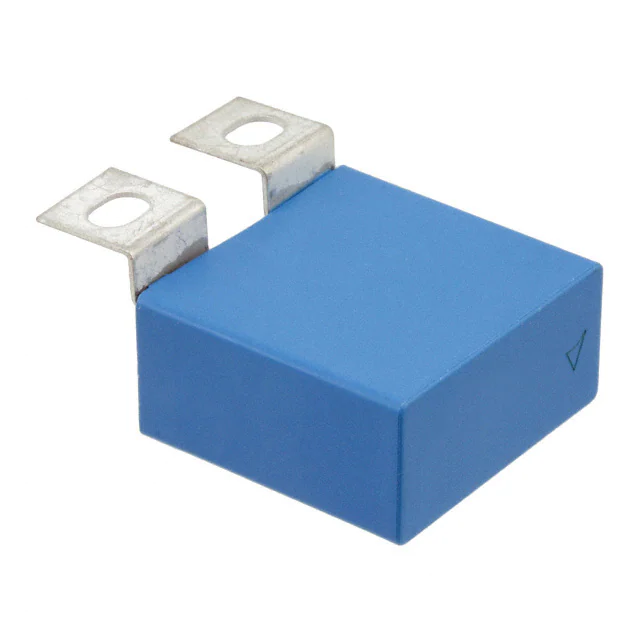

B32656S1334K561CAP FILM 0.33UF 10% 1.7KVDC SCRW |
7,878 | - |
|
Datasheet | Rectangular Box | 0.33 µF | ±10% | 750V | 1700V (1.7kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | Screw Terminals | 1.004" (25.50mm) | Snubber | AEC-Q200 | Low ESL |
|
|
B33331V7406J080CAP FILM 40UF 5% 460VAC RADIAL |
8,914 | - |
|
Datasheet | Radial, Can | 40 µF | ±5% | 460V | - | Polypropylene (PP), Metallized | 11 mOhms | -40°C ~ 85°C | Chassis Mount | 1.969" Dia (50.00mm) | 4.016" (102.00mm) | Quick Connect - 0.250" (6.3mm) | - | General Purpose | - | - |
|
B32332I6356J082CAP FILM 35UF 5% 450VAC RADIAL |
9,634 | - |
|
Datasheet | Radial, Can | 35 µF | ±5% | 450V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 4.173" (106.00mm) | Quick Connect, Disconnect | - | Motor Run | - | - |
|
B32678G3606K000CAP FILM 60UF 10% 300VDC RADIAL |
5,553 | - |
|
Datasheet | Radial | 60 µF | ±10% | - | 300V | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
|
B32718H8117K000MKP DC FILTERING - 800VDC, 110UF |
3,201 | - |
|
Datasheet | Radial - 4 Leads | 110 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
