Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32683A2103J000CAP FILM 10000PF 5% 2KVDC RADIAL |
6,425 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 550V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
B32621A3682J000CAP FILM 6800PF 5% 250VDC RADIAL |
2,034 | - |
|
Datasheet | Radial | 6800 pF | ±5% | 140V | 250V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
B32521C0684J000CAP FILM 0.68UF 5% 63VDC RADIAL |
8 | - |
|
Datasheet | Radial | 0.68 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.276" (7.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32682A7332K000CAP FILM 3300PF 10% 1.25KVDC RAD |
8 | - |
|
Datasheet | Radial | 3300 pF | ±10% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|

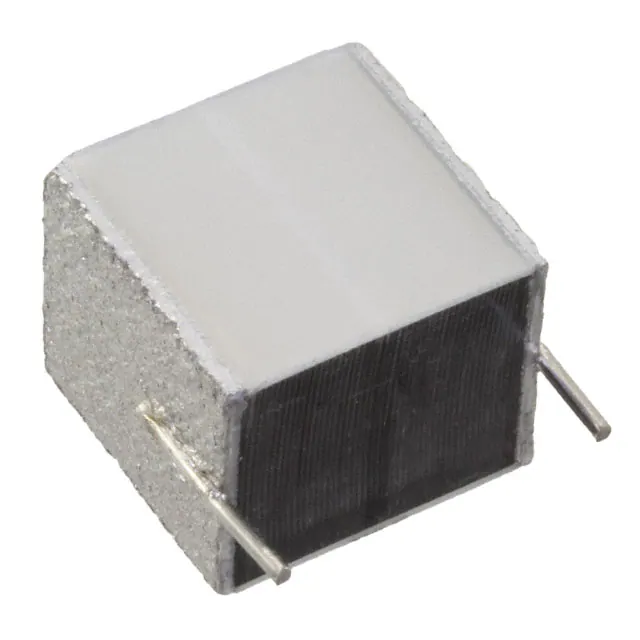

B32562H8474K000CAP FILM 0.47UF 10% 630VDC 2DIP |
3,543 | - |
|
Datasheet | 2-DIP | 0.47 µF | ±10% | 350V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.650" L x 0.531" W (16.50mm x 13.50mm) | 0.642" (16.30mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
B32621A4473K000CAP FILM 0.047UF 10% 400VDC RAD |
2,178 | - |
|
Datasheet | Radial | 0.047 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
B32654A4155K000CAP FILM 1.5UF 10% 400VDC RADIAL |
9,958 | - |
|
Datasheet | Radial | 1.5 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
B32033A4394M000CAP FILM 0.39UF 20% 1KVDC RADIAL |
8,555 | - |
|
Datasheet | Radial | 0.39 µF | ±20% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.610" W (26.50mm x 15.50mm) | 1.319" (33.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
B32774H0475K000CAP FILM 4.7UF 10% 920VDC RADIAL |
4,658 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | - | 920V | Polypropylene (PP), Metallized | 12.9 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
B32934A3684M000CAP FILM 0.68UF 20% 305VAC RAD |
16 | - |
|
Datasheet | Radial | 0.68 µF | ±20% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
