Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32021A3102M026FILM CAP Y2 MKP 1.0 NF 20% 300VA |
15,345 | - |
|
Datasheet | Radial | 1000 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins - Long Leads | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
B32671L0103J000CAP FILM 10000PF 5% 1KVDC RADIAL |
12,704 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32021A3102M000CAP FILM 1000PF 20% 1.5KVDC RAD |
8,737 | - |
|
Datasheet | Radial | 1000 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
B32652A1332J000CAP FILM 3300PF 5% 1.6KVDC RAD |
1,704 | - |
|
Datasheet | Radial | 3300 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|

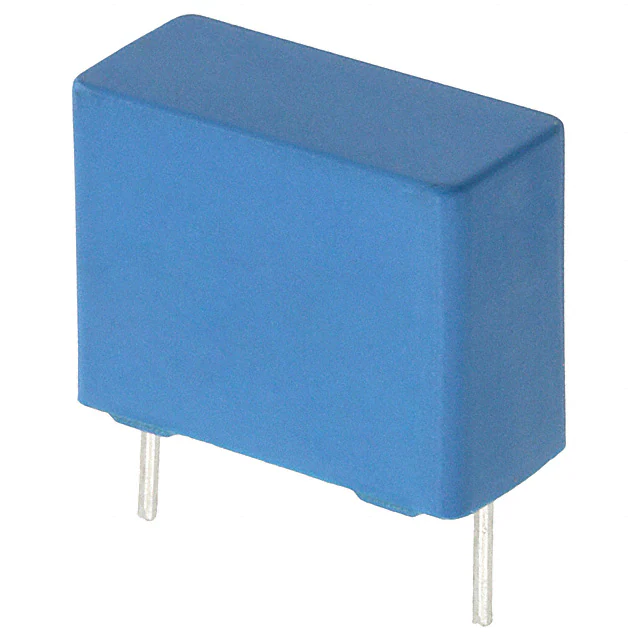

B32922C3334M189CAP FILM 0.33UF 20% 630VDC RAD |
16,654 | - |
|
Datasheet | Radial | 0.33 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
B32922C3334K000CAP FILM 0.33UF 10% 630VDC RAD |
5,045 | - |
|
Datasheet | Radial | 0.33 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
B32021A3152M000CAP FILM 1500PF 20% 1.5KVDC RAD |
2,117 | - |
|
Datasheet | Radial | 1500 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
B32620A4103J000CAP FILM 10000PF 5% 400VDC RAD |
2,039 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 200V | 400V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.335" (8.50mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
|
B32529C0105J006FILM CAP MKT BOX 1.UF 5% 63VDC L |
11,399 | - |
|
Datasheet | Radial | 1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287" L x 0.177" W (7.30mm x 4.50mm) | 0.374" (9.50mm) | PC Pins - Long Leads | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32671L6333J000CAP FILM 0.033UF 5% 630VDC RAD |
2,229 | - |
|
Datasheet | Radial | 0.033 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | High Temperature |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
