Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32643B0683J000CAP FILM 0.068UF 5% 1KVDC RAD |
9,715 | - |
|
Datasheet | Radial | 0.068 µF | ±5% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
B32572A3474J000CAP FILM 0.47UF 5% 250VDC 2DIP |
6,326 | - |
|
Datasheet | 2-DIP | 0.47 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
B32563J3684K000CAP FILM 0.68UF 10% 250VDC 2DIP |
2,823 | - |
|
Datasheet | 2-DIP | 0.68 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | - | - | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
B32523Q1155K000CAP FILM 1.5UF 10% 100VDC RADIAL |
7,214 | - |
|
Datasheet | Radial | 1.5 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
B32022A3333M189CAP FILM 0.033UF 20% 300VAC RAD |
6,846 | - |
|
Datasheet | Radial | 0.033 µF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|

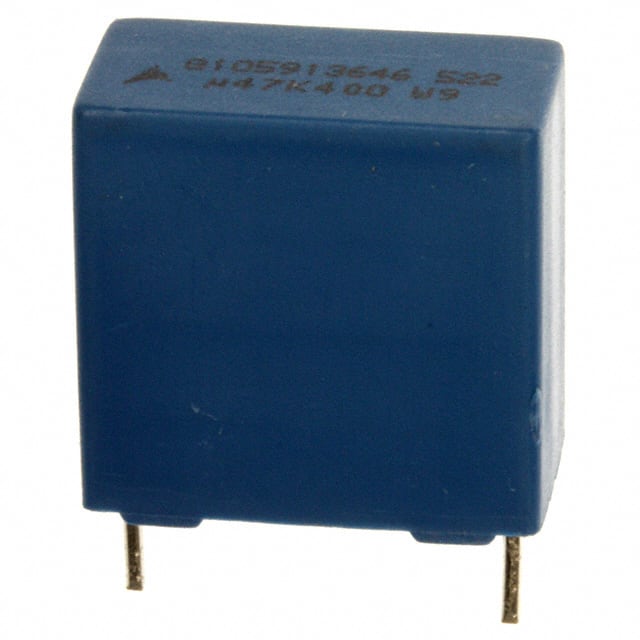

B32522C6474K289CAP FILM 0.47UF 10% 400VDC RAD |
4,212 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | - | - |
|
|
B32642B0563JCAP FILM 0.056UF 5% 1KVDC RADIAL |
8,433 | - |
|
Datasheet | Radial | 0.056 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
B32643B0683K00068NF 10% 1000V MMKP WOUND BO |
3,527 | - |
|
Datasheet | Radial | 0.068 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 17 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
B32653A1662J000CAP FILM 6600PF 5% 1.6KVDC RAD |
7,553 | - |
|
Datasheet | Radial | 6600 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | - | - | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
B32562J3155K189CAP FILM 1.5UF 10% 250VDC 2DIP |
4,355 | - |
|
Datasheet | 2-DIP | 1.5 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
