Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32923C3155M189CAP FILM 1.5UF 20% 630VDC RADIAL |
275,391 | - |
|
Datasheet | Radial | 1.5 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.472" W (26.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32672P4105K000CAP FILM 1UF 10% 450VDC RADIAL |
6,862 | - |
|
Datasheet | Radial | 1 µF | ±10% | 160V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
B32522E6105K000CAP FILM 1UF 10% 400V RADIAL |
1,214 | - |
|
Datasheet | Radial | 1 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32653A6334J000CAP FILM 0.33UF 5% 630VDC RADIAL |
2,160 | - |
|
Datasheet | Radial | 0.33 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
B32560J0225K000CAP FILM 2.2UF 10% 63VDC 2DIP |
1,001 | - |
|
Datasheet | 2-DIP | 2.2 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.354" L x 0.256" W (9.00mm x 6.50mm) | 0.323" (8.20mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
B32033A4473M000CAP FILM 0.047UF 20% 1KVDC RAD |
2,595 | - |
|
Datasheet | Radial | 0.047 µF | ±20% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
B32912B3224M189CAP FILM 0.22UF 20% 760VDC RAD |
1,437 | - |
|
Datasheet | Radial | 0.22 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
B32933B3474K189CAP FILM 0.47UF 10% 305VAC RAD |
2,262 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
B32653A7104K000CAP FILM 0.1UF 10% 1.25KVDC RAD |
17,679 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|

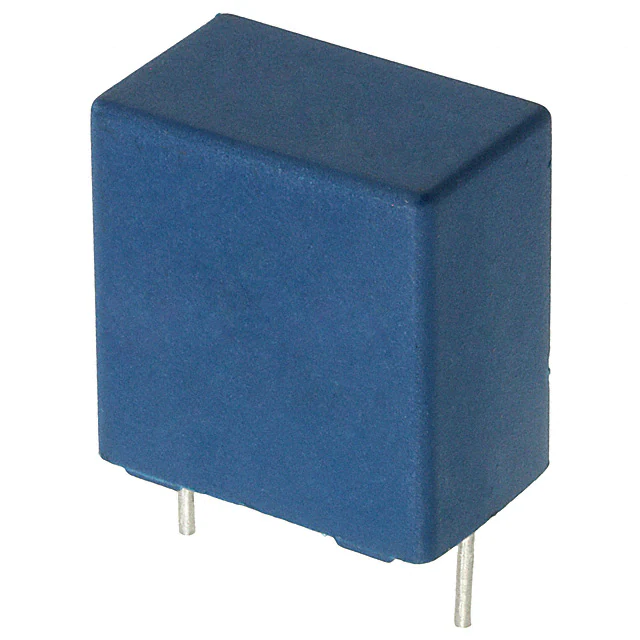

B32022A3823M000CAP FILM 0.082UF 20% 1.5KVDC RAD |
8,271 | - |
|
Datasheet | Radial | 0.082 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
