Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP5050FDER150MA1IHLP-5050FD-A1 15 20% ER E3 |
468 | - |
|
Datasheet | IHLP-5050FD-A1 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 15 µH | ±20% | 7.7 A | 15A | Shielded | 29.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.525" L x 0.508" W (13.34mm x 12.90mm) | 0.252" (6.40mm) |
|
|
SPB1005-R22MIND POWER BEAD 220NH 53A SHLD |
2,190 | - |
|
Datasheet | SPB1005 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±20% | 53 A | 33A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.197" (5.00mm) |
|
LSRNJ12565GL151MMYFIXED IND 150UH 1.54A 207.6 MOHM |
2,000 | - |
|
Datasheet | LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 1.54 A | 1.84A | Shielded | 208mOhm Max | - | 4.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LSRNJ12565GL7R0NMYFIXED IND 7UH 5.21A 19.44MOHM SM |
2,000 | - |
|
Datasheet | LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 7 µH | ±30% | 5.21 A | 7.93A | Shielded | 19.5mOhm Max | - | 24.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LSRNJ12565GL680MMYFIXED IND 68UH 2.3A 93 MOHM SMD |
1,991 | - |
|
Datasheet | LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 2.3 A | 2.78A | Shielded | 93mOhm Max | - | 6.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LSRNJ12565GL330MMYFIXED IND 33UH 3.22A 46.8MOHM SM |
1,965 | - |
|
Datasheet | LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 3.22 A | 3.89A | Shielded | 46.8mOhm Max | - | 9.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|

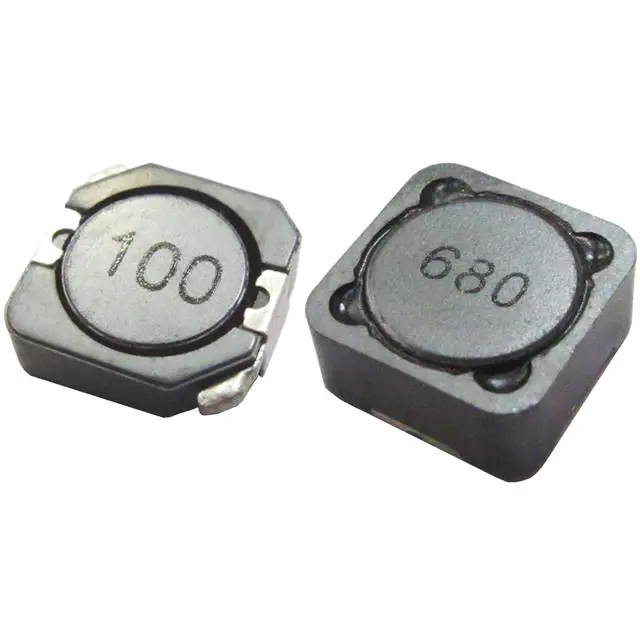

BPSA00131358102M00INDUCTOR POWER |
1,800 | - |
|
Datasheet | BPSA | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 600 mA | 340mA | Shielded | 1.344Ohm Max | - | 1.7MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.228" (5.80mm) |
|
IHLP2525BDERR33M01FIXED IND 330NH 18A 4.1 MOHM SMD |
1,235 | - |
|
Datasheet | IHLP-2525BD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 18 A | 22A | Shielded | 4.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.094" (2.40mm) |
|
|
SPB1005-R10MIND POWER BEAD 100NH 53A SHLD |
1,152 | - |
|
Datasheet | SPB1005 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±20% | 53 A | 73A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.197" (5.00mm) |
|
B82475A1104K000FIXED IND 100UH 970MA 350MOHM SM |
970 | - |
|
Datasheet | B82475A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 970 mA | 1A | Unshielded | 350mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.370" W (10.40mm x 9.40mm) | 0.228" (5.80mm) |
|
LCRNJ10145GL680MNFIXED IND 68UH 1.45A 180MOHM SMD |
2,000 | - |
|
Datasheet | LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 1.45 A | 1.66A | Shielded | 150mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LCRNJ10145GL152MNFIXED IND 1.5MH 270MA 4.44OHM SM |
1,995 | - |
|
Datasheet | LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 mH | ±20% | 270 mA | 360mA | Shielded | 3.7Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LCRNJ10145GL471MNFIXED IND 470UH 520MA 1.236 OHM |
1,900 | - |
|
Datasheet | LCRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±20% | 520 mA | 610mA | Shielded | 1.03Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
IHLP2525AHERR22M01FIXED IND 220NH 14A 5.7 MOHM SMD |
1,800 | - |
|
Datasheet | IHLP-2525AH-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 14 A | 26A | Shielded | 5.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.071" (1.80mm) |
|
|
5300-11-RCFIXED IND 6.8UH 1.6A 80 MOHM TH |
1,488 | - |
|
Datasheet | 5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 1.6 A | 1.2A | Unshielded | 80mOhm Max | - | 44MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
B82477G2105M000FIXED IND 1MH 400MA 1.53 OHM SMD |
1,190 | - |
|
Datasheet | B82477G2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 400 mA | - | Shielded | 1.53Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | 0.236" (6.00mm) |
|
|
5300-02-RCFIXED IND 1.2UH 3.2A 19 MOHM TH |
1,028 | - |
|
Datasheet | 5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 3.2 A | 2.7A | Unshielded | 19mOhm Max | - | 170MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
5300-04-RCFIXED IND 1.8UH 2.9A 23 MOHM TH |
1,000 | - |
|
Datasheet | 5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 2.9 A | 2.1A | Unshielded | 23mOhm Max | - | 150MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
5300-06-RCFIXED IND 2.7UH 2.5A 33 MOHM TH |
995 | - |
|
Datasheet | 5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 2.5 A | 1.9A | Unshielded | 33mOhm Max | - | 120MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
5300-48-RCFIXED IND 8.2MH 54MA 68 OHM TH |
995 | - |
|
Datasheet | 5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 54 mA | 33mA | Unshielded | 68Ohm Max | - | 290kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
