Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMRU00101040220MA1INDUCTOR POWER |
350 | - |
|
Datasheet | AMRx | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 4.5 A | 5A | Shielded | 66mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.402" W (11.60mm x 10.20mm) | 0.157" (4.00mm) |
|
SRP1038A-R33MFIXED IND 330NH 31A 1.2 MOHM SMD |
290 | - |
|
Datasheet | SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 330 nH | ±20% | 31 A | 60A | Shielded | 1.2mOhm Max | 15 @ 100kHz | 108MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|

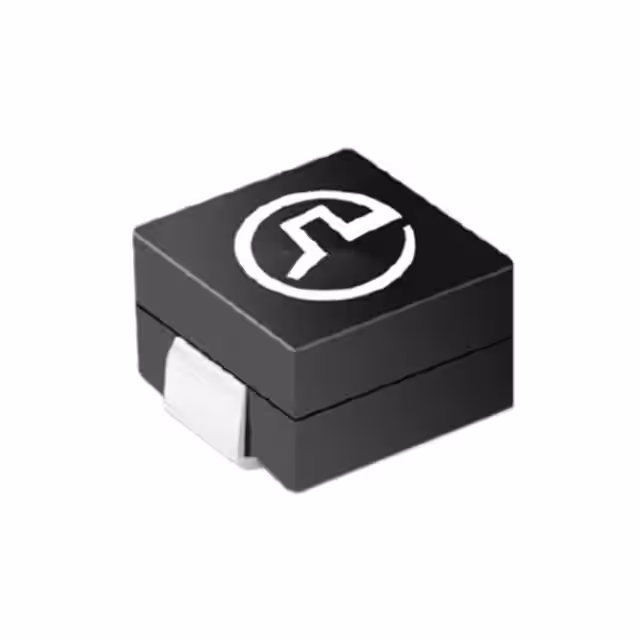

PA0515.271NLFIXED IND 270NH 35A 0.63MOHM SMD |
1,430 | - |
|
Datasheet | PA0515NL | Nonstandard | Tray | Active | - | - | 270 nH | ±20% | 35 A | 50A | Shielded | 0.63mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.354" (9.00mm) |
|
B82442T1225J50FIXED IND 2.2MH 100MA 22.5OHM SM |
1,493 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 100 mA | 168mA | Unshielded | 22.5Ohm Max | 30 @ 252kHz | 1.2MHz | AEC-Q200 | -55°C ~ 125°C | 252 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
SRP1038AA-150MIND,11X10X3.8MM,15UH20%,6.25A,SH |
953 | - |
|
Datasheet | SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 6.25 A | 7A | Shielded | 45mOhm Max | 20 @ 100kHz | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038AA-6R8MIND,11X10X3.8MM,6.8UH20%,7.8A,SH |
811 | - |
|
Datasheet | SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 7.8 A | 12.2A | Shielded | 24.5mOhm Max | 15 @ 100kHz | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038AA-R15YIND,11X10X3.8MM,0.15UH30%,44A,SH |
475 | - |
|
Datasheet | SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 150 nH | ±30% | 44 A | 82A | Shielded | 0.6mOhm Max | 10 @ 100kHz | 190MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038AA-330MIND,11X10X3.8MM,33UH20%,4.4A,SHD |
453 | - |
|
Datasheet | SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 33 µH | ±20% | 4.4 A | 5.5A | Shielded | 91mOhm Max | 20 @ 100kHz | 6.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038AA-3R3MIND,11X10X3.8MM,3.3UH20%,11A,SHD |
430 | - |
|
Datasheet | SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 11 A | 17.5A | Shielded | 11.8mOhm Max | 15 @ 100kHz | 20MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038AA-4R7MIND,11X10X3.8MM,4.7UH20%,8.8A,SH |
425 | - |
|
Datasheet | SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 8.8 A | 15.2A | Shielded | 19mOhm Max | 15 @ 100kHz | 16MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038AA-220MIND,11X10X3.8MM,22UH20%,5A,SHD,S |
227 | - |
|
Datasheet | SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 5 A | 6.2A | Shielded | 66mOhm Max | 20 @ 100kHz | 8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
B82442T1683K050FIXED IND 68UH 570MA 781MOHM SMD |
4,620 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 570 mA | 900mA | Unshielded | 781mOhm Max | 15 @ 2.52MHz | 7MHz | AEC-Q200 | - | 2.52 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
SLPPI05-12-R47M-TRHI POWER IND 4.70UH 130.0 MOHM |
4,000 | - |
|
Datasheet | SLPPI05 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 2 A | 3.5A | Shielded | 156mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.047" (1.20mm) |
|
|
CMLE051H-R24MSIND SMD 0.24UH MOLDING CHOKE |
3,000 | - |
|
Datasheet | CMLE051H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 240 nH | ±20% | 17 A | 20A | Unshielded | 3.65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
|
CMLE051H-R47MSIND SMD 0.47UH MOLDING CHOKE |
3,000 | - |
|
Datasheet | CMLE051H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 10.5 A | 16A | Unshielded | 8.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
|
CMLE051B-2R2MSIND SMD 2.2UH MOLDING CHOKE |
3,000 | - |
|
Datasheet | CMLE051B | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 3.9 A | 5A | Unshielded | 63mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.047" (1.20mm) |
|
|
CMLE051H-R68MSIND SMD 0.68UH MOLDING CHOKE |
3,000 | - |
|
Datasheet | CMLE051H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 8.3 A | 13.4A | Unshielded | 13.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
|
CMLE051B-1R0MSIND SMD 1.0UH MOLDING CHOKE |
3,000 | - |
|
Datasheet | CMLE051B | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 5 A | 8A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.047" (1.20mm) |
|
|
CMLE051H-2R2MSIND SMD 2.2UH MOLDING CHOKE |
3,000 | - |
|
Datasheet | CMLE051H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 5 A | 6.3A | Unshielded | 33mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
|
CMLE051H-R22MSIND SMD 0.22UH MOLDING CHOKE |
3,000 | - |
|
Datasheet | CMLE051H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 17 A | 20.5A | Unshielded | 3.65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
