Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744383350068HTHIGH TEMP POWER INDUCTOR 3015; 0 |
2,000 | - |
|
Datasheet | WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Iron Alloy | 680 nH | ±30% | 6.8 A | 7.4A | Shielded | 25.5mOhm Max | - | 78MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
74438335010HTHIGH TEMP POWER INDUCTOR 3015; 1 |
2,000 | - |
|
Datasheet | WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Iron Alloy | 1 µH | ±20% | 4.5 A | 5.9A | Shielded | 53.2mOhm Max | - | 73MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
74438335047HTHIGH TEMP POWER INDUCTOR 3015; 4 |
1,997 | - |
|
Datasheet | WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Iron Alloy | 4.7 µH | ±20% | 2.2 A | 3.2A | Shielded | 187.4mOhm Max | - | 26MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
74438335033HTHIGH TEMP POWER INDUCTOR 3015; 3 |
1,990 | - |
|
Datasheet | WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Iron Alloy | 3.3 µH | ±20% | 2.7 A | 4A | Shielded | 133mOhm Max | - | 35MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
74438335022HTHIGH TEMP POWER INDUCTOR 3015; 2 |
1,960 | - |
|
Datasheet | WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Iron Alloy | 2.2 µH | ±20% | 3.2 A | 5A | Shielded | 96mOhm Max | - | 42MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
74438335100HTHIGH TEMP POWER INDUCTOR 3015; 1 |
1,855 | - |
|
Datasheet | WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Iron Alloy | 10 µH | ±20% | 1.2 A | 2.4A | Shielded | 549.5mOhm Max | - | 19MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
PA0512.700NLTFIXED IND 72NH 31A 0.32 MOHM SMD |
3,120 | - |
|
Datasheet | PA0512NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 72 nH | ±20% | 31 A | 58A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
P1167.334NLTFIXED IND 330UH 350MA 1.47OHM SM |
2,455 | - |
|
Datasheet | P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 350 mA | 350mA | Shielded | 1.47Ohm Max | - | 3MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|
|
P1167.183NLTFIXED IND 18UH 1.5A 73 MOHM SMD |
2,228 | - |
|
Datasheet | P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 1.5 A | 1.5A | Shielded | 73mOhm Max | - | 18MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|
P1166.681NLTFIXED IND 680NH 5.5A 6 MOHM SMD |
1,200 | - |
|
Datasheet | P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±30% | 5.5 A | 5.9A | Shielded | 6mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|

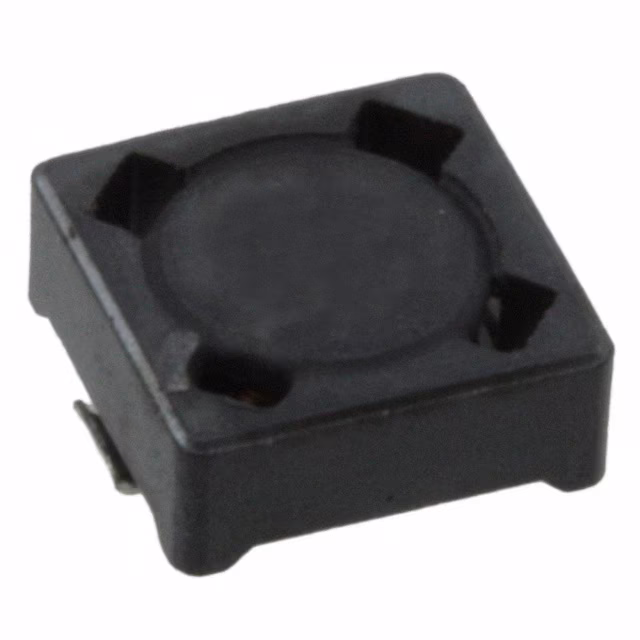

P1166.153NLTFIXED IND 15UH 1.4A 92 MOHM SMD |
1,200 | - |
|
Datasheet | P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 1.4 A | 1.5A | Shielded | 92mOhm Max | - | 22MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
|
P1166.682NLTFIXED IND 6.8UH 2.1A 40 MOHM SMD |
1,176 | - |
|
Datasheet | P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±30% | 2.1 A | 2.1A | Shielded | 40mOhm Max | - | 38MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
|
P1166.473NLTFIXED IND 47UH 830MA 260MOHM SMD |
1,035 | - |
|
Datasheet | P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 830 mA | 830mA | Shielded | 260mOhm Max | - | 12MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
|
P1166.124NLTFIXED IND 120UH 530MA 645MOHM SM |
1,015 | - |
|
Datasheet | P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 120 µH | ±20% | 530 mA | 550mA | Shielded | 645mOhm Max | - | 7MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
|
P1166.223NLTFIXED IND 22UH 1.2A 126 MOHM SMD |
969 | - |
|
Datasheet | P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1.2 A | 1.2A | Shielded | 126mOhm Max | - | 20MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
PA4304.104NLTFIXED IND 100UH 1.3A 160MOHM SMD |
900 | - |
|
Datasheet | PA4304.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.3 A | - | Shielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
PCMB105T-R47MSFIXED IND 470NH 36A 1.1 MOHM SMD |
480 | - |
|
Datasheet | PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 36 A | 50A | Unshielded | 1.1mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.189" (4.80mm) |
|
VLBU1024660R12MFFIXED IND 120NH 55A 0.23MOHM SMD |
207 | - |
|
Datasheet | VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±20% | 55 A | 55A | Unshielded | 0.23mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.181" W (10.20mm x 4.60mm) | 0.236" (6.00mm) |
|
1210-102JFIXED IND 1UH 515MA 700 MOHM SMD |
1,000 | - |
|
Datasheet | 1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±5% | 515 mA | - | Unshielded | 700mOhm Max | 30 @ 7.9MHz | 120MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210-682JFIXED IND 6.8UH 321MA 1.8OHM SMD |
500 | - |
|
Datasheet | 1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±5% | 321 mA | - | Unshielded | 1.8Ohm Max | 30 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
