Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM12645S-1R8M-RCFIXED IND 1.8UH 21A 4.7 MOHM SMD |
478 | - |
|
Datasheet | PM12645S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 1.8 µH | ±20% | 21 A | 40A | Shielded | 4.7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
HCME104610F-900IND SMD 90NH ASSEMBLY CHOKE |
450 | - |
|
Datasheet | HCME104610F | Nonstandard | Tape & Reel (TR) | Active | - | - | 90 nH | ±15% | 70 A | 87A | Unshielded | 0.23mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.181" W (10.20mm x 4.60mm) | 0.394" (10.00mm) |
|
PM5432.682NLTFIXED IND 6.8UH 9A 20.8MOHM SMD |
2,112 | - |
|
Datasheet | PM5432.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 9 A | - | Shielded | 20.8mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.236" (6.00mm) |
|
SBCP-14HY472BFIXED IND 4.7MH 270MA 4.97OHM TH |
1,442 | - |
|
Datasheet | SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 270 mA | 480mA | Unshielded | 4.97Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
|
SPB1012-R15YIND POWER BEAD 150NH 60A SHLD |
695 | - |
|
Datasheet | SPB1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±15% | 60 A | 70A | Shielded | 0.14mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.244" W (10.00mm x 6.20mm) | 0.472" (12.00mm) |
|

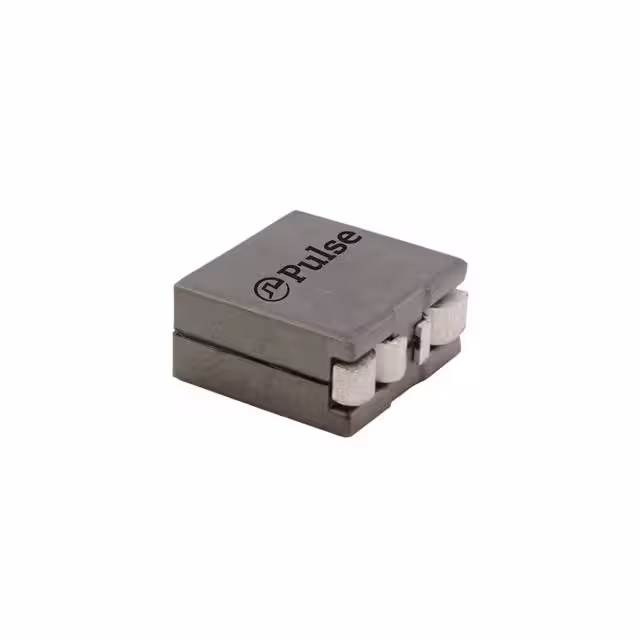

PGL6215.131HLTIND BEAD 12.0X6.0X12.0 MAX 130NH |
640 | - |
|
Datasheet | PGL6215.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 130 nH | ±15% | 77 A | 100A | Shielded | 0.125mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
PGL6215.121HLTIND BEAD 12.0X6.0X12.0 MAX 120NH |
640 | - |
|
Datasheet | PGL6215.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 117 nH | ±15% | 77 A | 106A | Shielded | 0.125mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
SPM10040T-2R2M-HZRAUTO IND 2.2H 13.1A 7.92MOHM |
369 | - |
|
Datasheet | SPM-HZR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 13.1 A | 12.8A | Shielded | 7.92mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SPB1012-R10YIND POWER BEAD 100NH 60A SHLD |
345 | - |
|
Datasheet | SPB1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±15% | 60 A | 92A | Shielded | 0.14mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.244" W (10.00mm x 6.20mm) | 0.472" (12.00mm) |
|
|
SPB1012-R12YIND POWER BEAD 120NH 60A SHLD |
345 | - |
|
Datasheet | SPB1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 nH | ±15% | 60 A | 78A | Shielded | 0.14mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.244" W (10.00mm x 6.20mm) | 0.472" (12.00mm) |
|
|
SPB1012-R33YIND POWER BEAD 330NH 60A SHLD |
290 | - |
|
Datasheet | SPB1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 nH | ±15% | 60 A | 28A | Shielded | 0.14mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.244" W (10.00mm x 6.20mm) | 0.472" (12.00mm) |
|
|
7443081018WE-HCM SMT HIGH CURRENT FLAT WIR |
599 | - |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 180 nH | ±10% | 38 A | 63.4A | Shielded | 0.29mOhm | - | 52MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.319" (8.10mm) |
|
|
7443081030WE-HCM SMT HIGH CURRENT FLAT WIR |
590 | - |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 300 nH | ±10% | 34.6 A | 28.9A | Shielded | 0.29mOhm | - | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.319" (8.10mm) |
|
|
7443081010WE-HCM SMT HIGH CURRENT FLAT WIR |
570 | - |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 100 nH | ±10% | 38 A | 104.4A | Shielded | 0.29mOhm | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.319" (8.10mm) |
|
|
PA2243.472NLTIND PWR MOLDED 4.7UH 14A |
500 | - |
|
Datasheet | PA2243.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 14 A | 22A | Unshielded | 10.72mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.236" (6.00mm) |
|
|
7443081015WE-HCM SMT HIGH CURRENT FLAT WIR |
214 | - |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 150 nH | ±10% | 38 A | 67A | Shielded | 0.29mOhm | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.319" (8.10mm) |
|
|
7443732448015HIGH TEMPERATURE SMT POWER INDUC |
4,000 | - |
|
Datasheet | WE-LHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.5 µH | ±20% | 6.1 A | 7A | Shielded | 46mOhm Max | - | 55MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
7443732448010HIGH TEMPERATURE SMT POWER INDUC |
4,000 | - |
|
Datasheet | WE-LHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 7 A | 8.4A | Shielded | 27mOhm Max | - | 66MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
7443732448068HIGH TEMPERATURE SMT POWER INDUC |
4,000 | - |
|
Datasheet | WE-LHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 6.8 µH | ±20% | 2.7 A | 3A | Shielded | 228mOhm Max | - | 19MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
7443732448022HIGH TEMPERATURE SMT POWER INDUC |
4,000 | - |
|
Datasheet | WE-LHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 5.2 A | 6A | Shielded | 61mOhm Max | - | 44MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
