Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM2511-R47MHFFIXED IND 470NH 17.5A 4.2MOHM SM |
7,000 | - |
|
Datasheet | SM2511 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 17.5 A | 26A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.263" L x 0.255" W (6.68mm x 6.47mm) | 0.118" (3.00mm) |
|
|
SM2511-R22MHFFIXED IND 220NH 23A 2.8MOHM SMD |
4,000 | - |
|
Datasheet | SM2511 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 23 A | 40A | Shielded | 2.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.263" L x 0.255" W (6.68mm x 6.47mm) | 0.118" (3.00mm) |
|
SM2518-R56MHFFIXED IND 560NH 20A 3.6MOHM SMD |
7,500 | - |
|
Datasheet | SM2518 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 560 nH | ±20% | 20 A | 23A | Shielded | 3.6mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.197" (5.00mm) |
|
|
SM2518-R82MHFFIXED IND 820NH 16.5A 4.9MOHM SM |
4,500 | - |
|
Datasheet | SM2518 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 820 nH | ±20% | 16.5 A | 20A | Shielded | 4.9mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.197" (5.00mm) |
|
SM1608A-R68MHFFIXED IND 680NH 7A 13.5MOHM SMD |
18,000 | - |
|
Datasheet | SM1608A | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 7 A | 9A | Shielded | 13.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.236" (6.00mm) |
|
SL1616A-R05LHFFIXED IND 50NH 19A 0.32MOHM SMD |
2,000 | - |
|
Datasheet | SL1616 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±15% | 19 A | 29A | Shielded | 0.32mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" (4.00mm) |
|
SQ10A-R33MHFFIXED IND 330NH 33A 1.3MOHM SMD |
1,500 | - |
|
Datasheet | SQ10 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 nH | ±20% | 33 A | 50A | Shielded | 1.3mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.339" W (12.50mm x 8.60mm) | 0.335" (8.50mm) |
|
SMHC2511-R15MHFFIXED IND 150NH 26A 2.4MOHM SMD |
30,000 | - |
|
Datasheet | SMHC2511 | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 150 nH | ±20% | 26 A | 52A | Shielded | 2.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

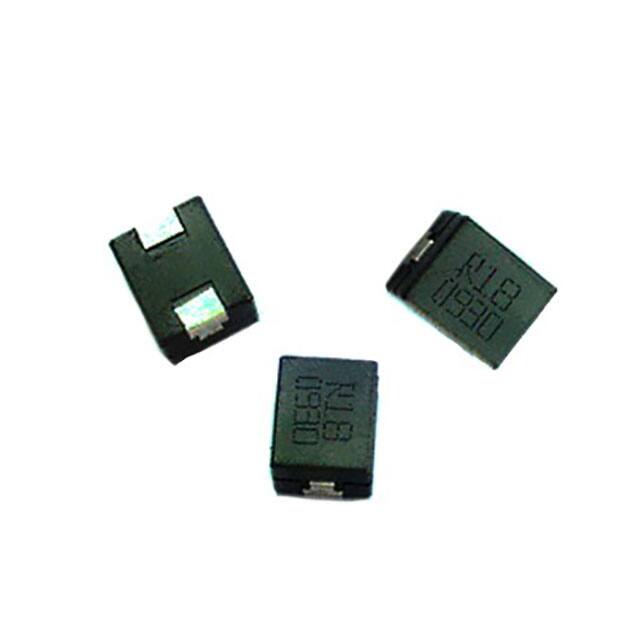

AH4724-R21KHFFIXED IND 215NH 40A 0.48MOHM SMD |
4,000 | - |
|
Datasheet | AH4724 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 215 nH | ±10% | 40 A | 54A | Shielded | 0.48mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.394" L x 0.476" W (10.00mm x 12.10mm) | 0.236" (6.00mm) |
|
SM5018-1R0MHFFIXED IND 1UH 29A 2.5 MOHM SMD |
12,500 | - |
|
Datasheet | SM5018 | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 29 A | 50A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
