Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXV1D1264LR22FIXED IND 220NH 53A 1.1MOHM SMD |
2,381 | - |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 220 nH | ±20% | 53 A | 100A | Shielded | 1.1mOhm Max | - | 90MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|

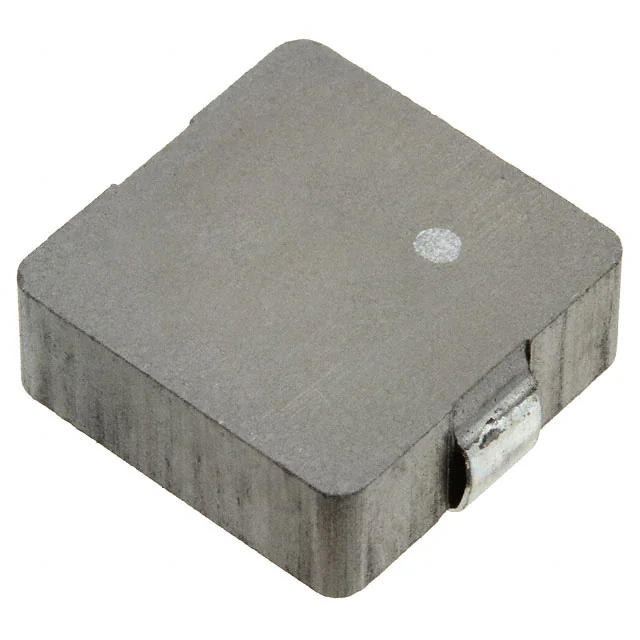

MPCH1250L1R5FIXED IND 1.5UH 21A 2.2 MOHM SMD |
3,120 | - |
|
Datasheet | MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 21 A | 21A | Shielded | 2.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.563" L x 0.492" W (14.30mm x 12.50mm) | 0.197" (5.00mm) |
|
SHBC10-0R8A0107VCMC 107UH 3A 2LN TH |
2,285 | - |
|
Datasheet | SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 107 µH | ±20% | 3 A | - | Unshielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.866" Dia (22.00mm) | 0.866" (22.00mm) |
|
|
SHBC14-1R2A0067VCMC 67UH 8A 2LN TH |
1,323 | - |
|
Datasheet | SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 67 µH | ±20% | 8 A | - | Unshielded | 22.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.319" Dia (33.50mm) | 1.319" (33.50mm) |
|
SNG-25DB-086FIXED IND 86UH 20 MOHM CHAS MNT |
3,110 | - |
|
Datasheet | SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 86 µH | -30%, +50% | - | - | Unshielded | 20mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | Chassis Mount | - | 1.929" L x 0.945" W (49.00mm x 24.00mm) | 1.535" (39.00mm) |
|
|
MPXV1D1770L330FIXED IND 33UH 7.5A 47.3MOHM SMD |
1,405 | - |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 7.5 A | 12A | Shielded | 47.3mOhm Max | - | 3.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
SHBC20-1R7A0097VCMC 97UH 12A 2LN TH |
2,711 | - |
|
Datasheet | SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 97 µH | ±20% | 12 A | - | Unshielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.622" Dia (41.20mm) | 1.622" (41.20mm) |
|
|
SNG-19B-080FIXED IND 80UH 10 MOHM CHAS MNT |
4,878 | - |
|
Datasheet | SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 80 µH | -30%, +50% | - | - | Unshielded | 10mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | Chassis Mount | - | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.181" (30.00mm) |
|
|
SNG-25DA-086FIXED INDUCTOR 86UH 20 MOHM |
4,452 | - |
|
Datasheet | SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 86 µH | -30%, +50% | - | - | Unshielded | 20mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | User Defined | - | 1.535" Dia (39.00mm) | 0.945" (24.00mm) |
|
|
SNG-19A-080FIXED INDUCTOR 80UH 10 MOHM |
3,260 | - |
|
Datasheet | SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 80 µH | -30%, +50% | - | - | Unshielded | 10mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | User Defined | - | 1.181" Dia (30.00mm) | 0.787" (20.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
