Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXV1D1235L2R2FIXED IND 2.2UH 15.2A 8.4MOHM SM |
481 | - |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 15.2 A | 23A | Shielded | 8.4mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.138" (3.50mm) |
|
SBC8-102-761FIXED IND 1MH 760MA 780 MOHM TH |
1,124 | - |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 760 mA | 1.1A | Unshielded | 780mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|

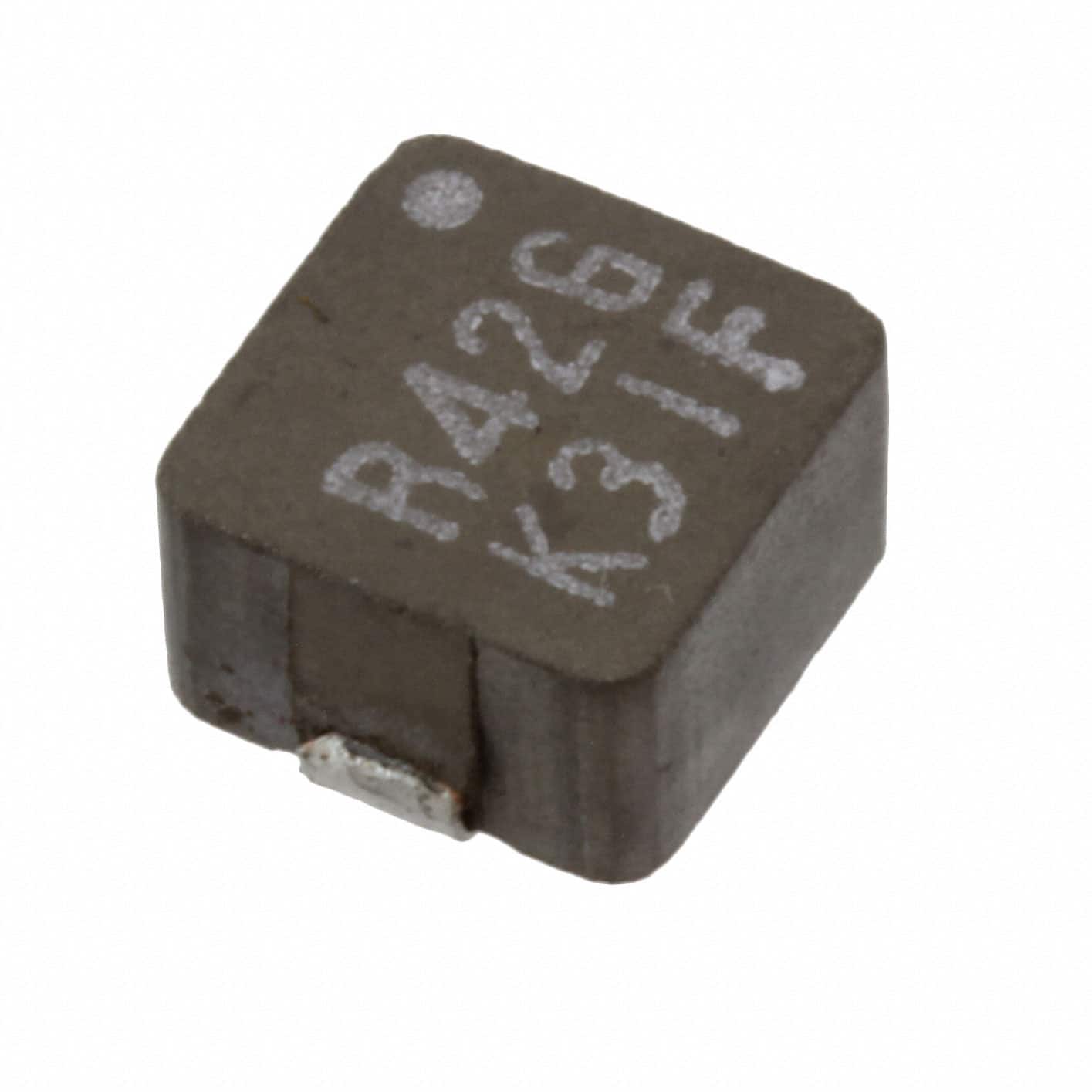

MPCG0740LR42FIXED IND 420NH 22A 1.55MOHM SMD |
2,000 | - |
|
Datasheet | MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 420 nH | ±20% | 22 A | 20A | Shielded | 1.55mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.157" (4.00mm) |
|
MPLCG0530LR22FIXED IND 220NH 14.1A 0.0037OHM |
5,732 | - |
|
Datasheet | MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 220 nH | ±20% | 14.1 A | 10.2A | Shielded | 3.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|

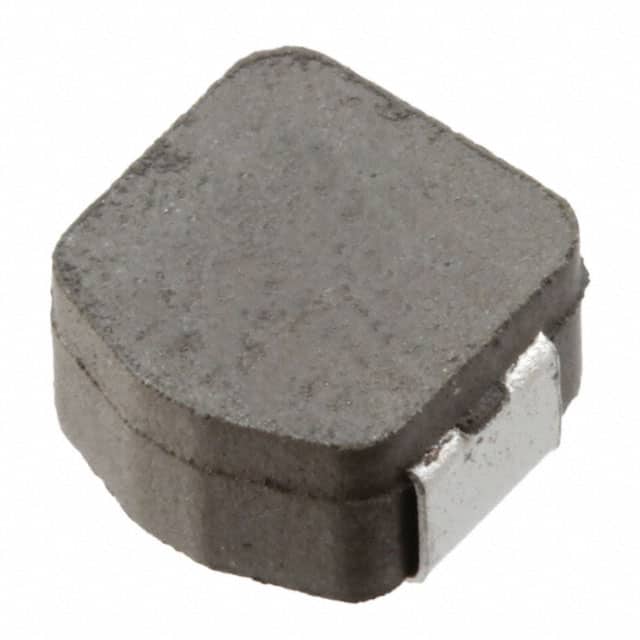

MPLCG0530LR33FIXED IND 330NH 10.3A 0.0073OHM |
1,445 | - |
|
Datasheet | MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 330 nH | ±20% | 10.3 A | 8.9A | Shielded | 7.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|
|
MPLCG0530LR47FIXED IND 470NH 9.5A 0.0084OHM |
641 | - |
|
Datasheet | MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 9.5 A | 8.9A | Shielded | 8.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|
|
MPLCG0530L1R0FIXED IND 1UH 7.4A 0.0146OHM SMD |
4,918 | - |
|
Datasheet | MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 7.4 A | 5.6A | Shielded | 14.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|
MPCG0730LR40FIXED IND 400NH 16A 2.6 MOHM SMD |
1,368 | - |
|
Datasheet | MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 400 nH | ±20% | 16 A | 16A | Shielded | 2.6mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.264" W (7.50mm x 6.70mm) | 0.118" (3.00mm) |
|
|
SBC8-150-532FIXED IND 15UH 5.3A 30 MOHM TH |
134 | - |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.3 A | 9.6A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
MPLC0730L1R0FIXED IND 1UH 10.6A 9 MOHM SMD |
12,085 | - |
|
Datasheet | MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 10.6 A | 11A | Shielded | 9mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.264" W (7.70mm x 6.70mm) | 0.118" (3.00mm) |
