Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBC6-101-172FIXED IND 100UH 1.7A 130 MOHM TH |
374 | - |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.7 A | 3.5A | Unshielded | 130mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
MPXV1D1054L220FIXED IND 22UH 5.7A 54.05MOHM SM |
952 | - |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 5.7 A | 7A | Shielded | 54.05mOhm Max | - | 6.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.213" (5.40mm) |
|
|
MPXV1D1054L3R3FIXED IND 3.3UH 14.4A 8.4MOHM SM |
857 | - |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 14.4 A | 15A | Shielded | 8.4mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.213" (5.40mm) |
|
|
MPXV1D1040L4R7FIXED IND 4.7UH 10.3A 15.9 MOHM |
1,173 | - |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 10.3 A | 14A | Shielded | 15.9mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|

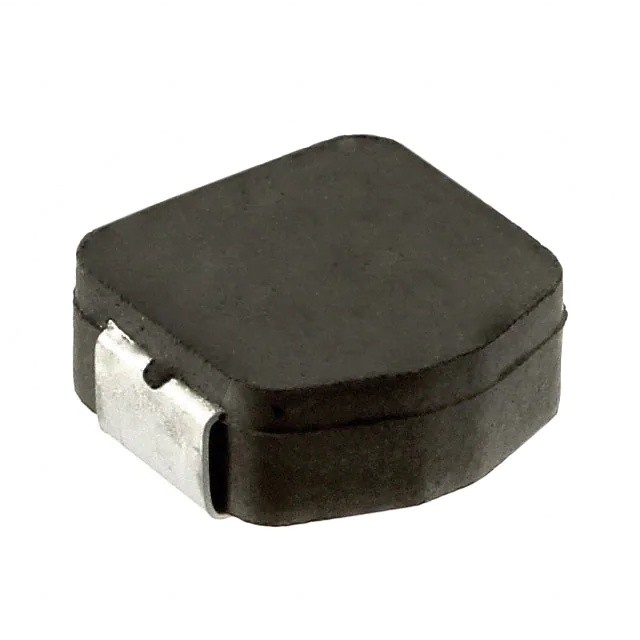

MPLCG0630L3R3FIXED IND 3.3UH 6.5A 0.03OHM SMD |
1,696 | - |
|
Datasheet | MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 6.5 A | 6.3A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | - | 0.295" L x 0.264" W (7.50mm x 6.70mm) | 0.118" (3.00mm) |
|
MPCH0730LR12FIXED IND 120NH 31A 0.65MOHM SMD |
1,781 | - |
|
Datasheet | MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 120 nH | ±20% | 31 A | 32A | Shielded | 0.65mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.118" (3.00mm) |
|

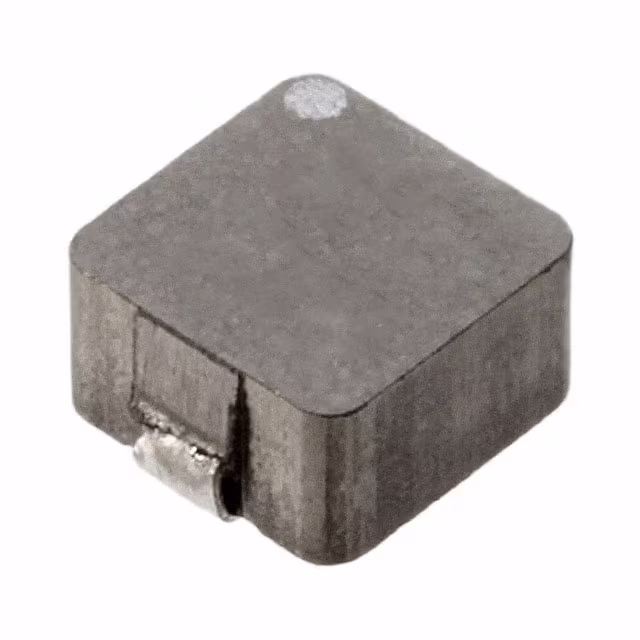

MPCH0740LR15FIXED IND 150NH 29A 0.93MOHM SMD |
2,641 | - |
|
Datasheet | MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 150 nH | ±20% | 29 A | 31A | Shielded | 0.93mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.157" (4.00mm) |
|

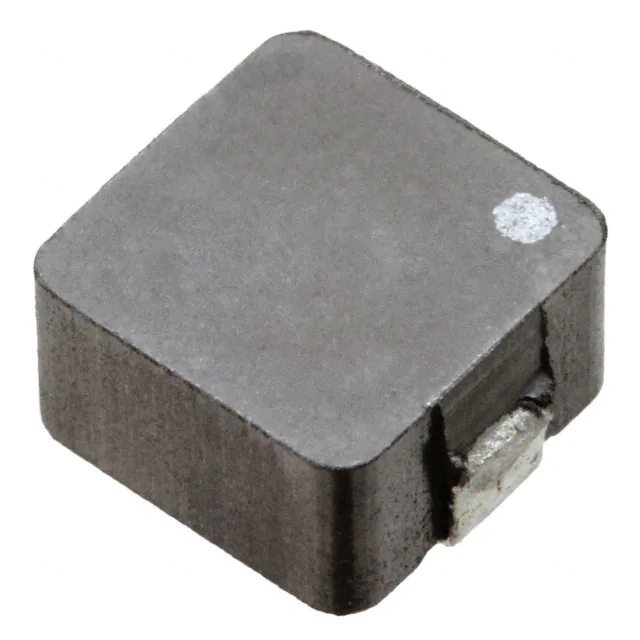

MPCH0740LR24FIXED IND 240NH 27A 1 MOHM SMD |
3,166 | - |
|
Datasheet | MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 240 nH | ±20% | 27 A | 20A | Shielded | 1mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.157" (4.00mm) |
|
|
SBC6-152-451FIXED IND 1.5MH 450MA 1.8 OHM TH |
418 | - |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 450 mA | 900mA | Unshielded | 1.8Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.728" (18.50mm) |
|
|
SBC6-102-561FIXED IND 1MH 560MA 1.21 OHM TH |
308 | - |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 560 mA | 1.1A | Unshielded | 1.21Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.728" (18.50mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
