Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L06031R5AHLTRFIXED IND 1.5NH 1A 60 MOHM SMD |
4,098 | - |
|
Datasheet | Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | 1.5 nH | ±0.05nH | 1 A | - | Unshielded | 60mOhm Max | 26 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L06031R8AHLTRFIXED IND 1.8NH 1A 70 MOHM SMD |
1,770 | - |
|
Datasheet | Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | 1.8 nH | ±0.05nH | 1 A | - | Unshielded | 70mOhm Max | 20 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L06032R2AHLTRFIXED IND 2.2NH 1A 80 MOHM SMD |
3,557 | - |
|
Datasheet | Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | 2.2 nH | ±0.05nH | 1 A | - | Unshielded | 80mOhm Max | 20 @ 450MHz | 10GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L06032R7AHLTRFIXED IND 2.7NH 750MA 80MOHM SMD |
3,475 | - |
|
Datasheet | Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Non-Magnetic | 2.7 nH | ±0.05nH | 750 mA | - | Unshielded | 80mOhm Max | 21 @ 450MHz | 9GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|

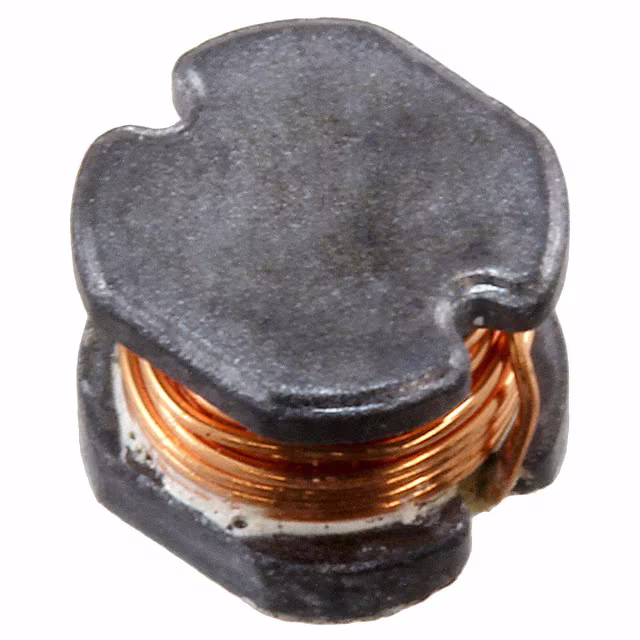

LMXN0605M330DTASFIXED IND 33UH 880MA 230MOHM SMD |
1,386 | - |
|
Datasheet | LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 880 mA | - | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
LMXN0605M470DTASFIXED IND 47UH 720MA 370MOHM SMD |
4,360 | - |
|
Datasheet | LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 720 mA | - | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
LMXN1310M4R7CTASFIXED IND 4.7UH 36 MOHM SMD |
2,008 | - |
|
Datasheet | LMXN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | - | 4.2A | Unshielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.390" W (13.20mm x 9.90mm) | 0.250" (6.35mm) |
|

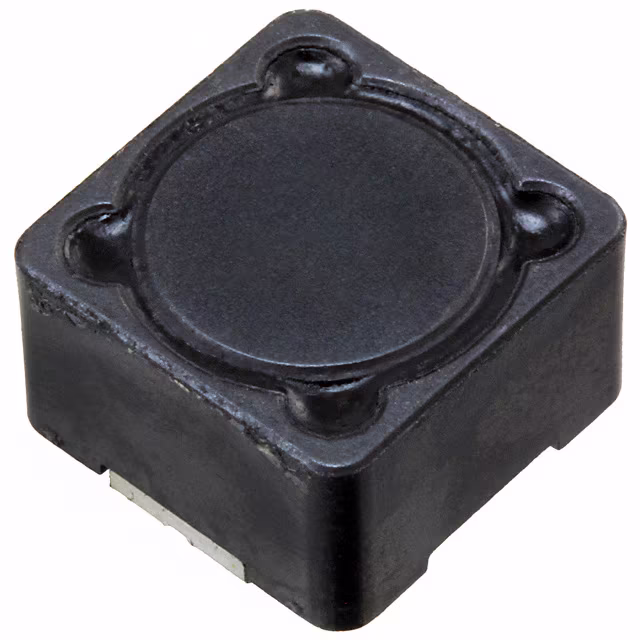

LMXS1212M330HTASFIXED IND 33UH 2.7A 97 MOHM SMD |
4,388 | - |
|
Datasheet | LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.7 A | - | Shielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
LMXS0606M471BTASFIXED IND 470UH 2.58 OHM SMD |
1,997 | - |
|
Datasheet | LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 470 µH | ±20% | - | 200mA | Shielded | 2.58Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.232" L x 0.232" W (5.90mm x 5.90mm) | 0.118" (3.00mm) |
|
LMXS131JM220FTASFIXED IND 22UH 4A 32 MOHM SMD |
2,900 | - |
|
Datasheet | LMXS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4 A | - | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
