Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMIM0402S-R47MG-DIND 0.47UH 5.4MOHM 14A |
2,420 | - |
|
Datasheet | TMIM0402S | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 470 nH | ±20% | 14 A | 14A | Unshielded | 5.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.079" (2.00mm) |
|
|
PA3146.301HLTFIXED IND 300NH 28A 0.29MOHM SMD |
4,050 | - |
|
Datasheet | PA3146.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 300 nH | ±15% | 28 A | 32A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.540" L x 0.413" W (13.72mm x 10.50mm) | 0.299" (7.60mm) |
|
ASPI-0705-100K-TFIXED IND 10UH 2.3A 70 MOHM SMD |
4,345 | - |
|
Datasheet | ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.3 A | - | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
TMIM0403S-4R7MG-DIND 4.7UH 32.4MOHM 5.9A |
2,000 | - |
|
Datasheet | TMIM0403S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 5.9 A | 5.1A | Unshielded | 32.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.118" (3.00mm) |
|
CTLQ1210NF-2R2K2.2UH 370MA SMD WW INDUCTOR |
1,988 | - |
|
Datasheet | CTLQ1210NF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±10% | 370 mA | - | Unshielded | 800mOhm Max | 20 @ 1MHz | 50MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
AMPI0612GD100MTASMD POWER INDUCTORS 0612 10UH 20 |
1,977 | - |
|
Datasheet | AMPI_GD | 2628 (6671 Metric) | Cut Tape (CT) | Active | - | Carbonyl Powder | 10 µH | ±20% | 2 A | 3.1A | Shielded | 250mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2628 | 0.260" Dia x 0.280" L (6.60mm x 7.10mm) | 0.047" (1.20mm) |
|
|
TMIM0403S-3R3MG-DIND 3.3UH 20.7MOHM 9A |
1,918 | - |
|
Datasheet | TMIM0403S | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 3.3 µH | ±20% | 9 A | 6.5A | Unshielded | 20.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.118" (3.00mm) |
|
SDE6603-3R3MFIXED IND 3.3UH 2A 80 MOHM SMD |
1,800 | - |
|
Datasheet | SDE6603 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 2A | Unshielded | 80mOhm Max | - | 70MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
TMIM0403S-R47MG-DIND 0.47UH 4.1MOHM 19A |
1,748 | - |
|
Datasheet | TMIM0403S | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 470 nH | ±20% | 19 A | 18A | Unshielded | 4.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.118" (3.00mm) |
|
LQH31HNR21J03LFIXED IND 215NH 520MA 110MOHM SM |
1,664 | - |
|
Datasheet | LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 215 nH | ±5% | 520 mA | - | - | 110mOhm | 60 @ 100MHz | 430MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
TMIM0403S-1R0MG-DIND 1UH 7.8MOHM 10A |
1,495 | - |
|
Datasheet | TMIM0403S | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 1 µH | ±20% | 10 A | 11A | Unshielded | 7.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.118" (3.00mm) |
|
|
TMIM0403S-2R2MG-DIND 2.2UH 17.4MOHM 9.5A |
1,465 | - |
|
Datasheet | TMIM0403S | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 2.2 µH | ±20% | 9.5 A | 7.5A | Unshielded | 17.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.118" (3.00mm) |
|
0410CDMCCDS-R10MCFIXED IND 100NH 14A 5.8MOHM SMD |
2,117 | - |
|
Datasheet | 0410CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 100 nH | ±20% | 14 A | 14A | Shielded | 5.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.039" (1.00mm) |
|
CTLQ1206NF-5R6J5.6UH 115MA SMD WW INDUCTOR |
1,990 | - |
|
Datasheet | CTLQ1206NF | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±5% | 115 mA | - | Unshielded | 2.34Ohm Max | 35 @ 8MHz | 28MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
CTLQ1206NF-2R2M2.2UH 140MA SMD WW INDUCTOR |
1,990 | - |
|
Datasheet | CTLQ1206NF | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 140 mA | - | Unshielded | 910mOhm Max | 35 @ 10MHz | 50MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
MPIA4012V2-R47-RFIXED IND 470NH 5.6A 23 MOHM SMD |
4,574 | - |
|
Datasheet | MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±20% | 5.6 A | 6.8A | Shielded | 23mOhm Max | - | 106MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.047" (1.20mm) |
|
0412CDMCDS-2R2MCFIXED IND 2.2UH 2A 80 MOHM SMD |
1,741 | - |
|
Datasheet | 0412CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 2 A | 4.4A | Shielded | 80mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.047" (1.20mm) |
|

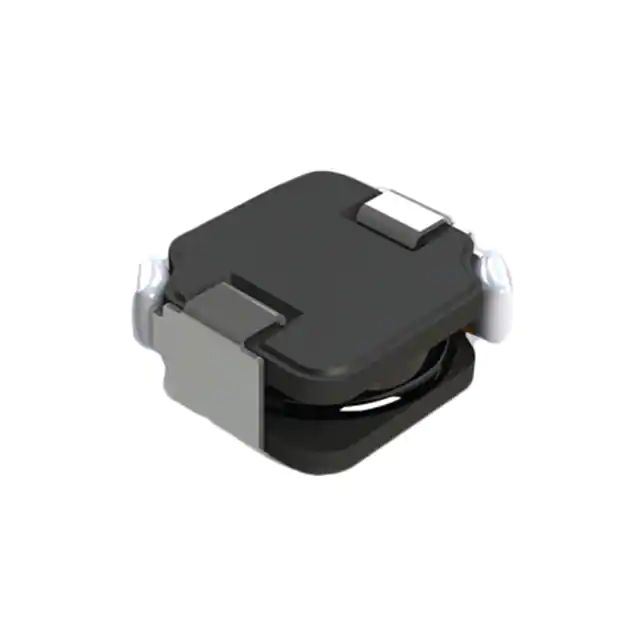

PA4333.102NLTFIXED IND 1UH 9.5A 8.7 MOHM SMD |
11,732 | - |
|
Datasheet | PA4333.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 1 µH | ±20% | 9.5 A | 9.5A | Shielded | 8.7mOhm Max | - | 41MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.291" L x 0.268" W (7.40mm x 6.80mm) | 0.126" (3.20mm) |
|
|
PA4333.472NLTFIXED IND 4.7UH 3.8A 43.5MOHM SM |
5,878 | - |
|
Datasheet | PA4333.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 4.7 µH | ±20% | 3.8 A | 3.8A | Shielded | 43.5mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.291" L x 0.268" W (7.40mm x 6.80mm) | 0.126" (3.20mm) |
|
0410CDMCCDS-4R7MCFIXED IND 4.7UH 1.75A 243MOHM SM |
2,935 | - |
|
Datasheet | 0410CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 1.75 A | 1.9A | Shielded | 243mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.039" (1.00mm) |
