Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM4020T-2R2MFIXED IND 2.2UH 3.7A 70.4MOHM SM |
447 | - |
|
Datasheet | SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 3.7 A | 3.8A | Shielded | 70.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|
SPM4015T-R68MFIXED IND 680NH SMD |
289 | - |
|
Datasheet | SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 680 nH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.059" (1.50mm) |
|
|
SPM4020T-3R3MFIXED IND 3.3UH 3.6A 79.3MOHM SM |
216 | - |
|
Datasheet | SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 3.6 A | 3.5A | Shielded | 79.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|
SPM4020T-1R0MFIXED IND 1UH 5A 34.7 MOHM SMD |
178 | - |
|
Datasheet | SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 5 A | 6.7A | Shielded | 34.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|
DO1608C-103MLCFIXED IND 10UH 1.5A 160MOHM SM |
48,654 | - |
|
Datasheet | DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.5 A | 1.1A | Unshielded | 160mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-223MLCFIXED IND 22UH 950MA 370MOHM SM |
23,627 | - |
|
Datasheet | DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 950 mA | 700mA | Unshielded | 370mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-473MLCFIXED IND 47UH 700MA 640MOHM SM |
22,494 | - |
|
Datasheet | DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 700 mA | 500mA | Unshielded | 640mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-682MLCFIXED IND 6.8UH 1.6A 130MOHM SM |
20,072 | - |
|
Datasheet | DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1.6 A | 1.2A | Unshielded | 130mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-102MLCFIXED IND 1UH 2.7A 50MOHM SM |
17,142 | - |
|
Datasheet | DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 2.7 A | 2.9A | Unshielded | 50mOhm Max | - | 130MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-332MLCFIXED IND 3.3UH 2.2A 80MOHM SM |
15,342 | - |
|
Datasheet | DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 2.2 A | 2A | Unshielded | 80mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-472MLCFIXED IND 4.7UH 1.9A 90MOHM SM |
13,618 | - |
|
Datasheet | DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.9 A | 1.5A | Unshielded | 90mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-104MLCFIXED IND 100UH 500MA 1.27OHM SM |
6,662 | - |
|
Datasheet | DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 500 mA | 310mA | Unshielded | 1.27Ohm Max | - | 9MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-222MLCFIXED IND 2.2UH 2.55A 70MOHM SM |
5,968 | - |
|
Datasheet | DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 2.55 A | 2.3A | Unshielded | 70mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-333MLCFIXED IND 33UH 800MA 510MOHM SM |
5,904 | - |
|
Datasheet | DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 800 mA | 580mA | Unshielded | 510mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
DO1608C-683MLCFIXED IND 68UH 600MA 860MOHM SM |
5,471 | - |
|
Datasheet | DO1608C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 600 mA | 400mA | Unshielded | 860mOhm Max | - | 11MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

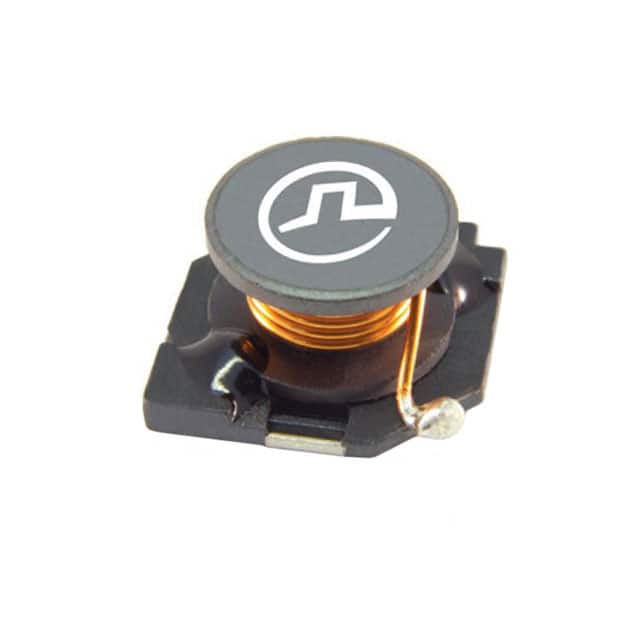

PA4309.102NLTFIXED IND 1UH 20A 19 MOHM SMD |
3,490 | - |
|
Datasheet | PA4309.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±30% | 20 A | - | Unshielded | 19mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.276" (7.00mm) |
|
|
PA4309.682NLTFIXED IND 6.8UH 13.5A 42MOHM SMD |
3,482 | - |
|
Datasheet | PA4309.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±30% | 13.5 A | - | Unshielded | 42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.276" (7.00mm) |
|
|
PA4309.683NLTFIXED IND 68UH 4.2A 298 MOHM SMD |
3,468 | - |
|
Datasheet | PA4309.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 4.2 A | - | Unshielded | 298mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.276" (7.00mm) |
|
|
PA4309.223NLTFIXED IND 22UH 7.5A 98 MOHM SMD |
3,465 | - |
|
Datasheet | PA4309.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 7.5 A | - | Unshielded | 98mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.276" (7.00mm) |
|
|
PA4309.474NLTFIXED IND 470UH 1.6A 1.755OHM SM |
3,034 | - |
|
Datasheet | PA4309.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 1.6 A | - | Unshielded | 1.755Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.276" (7.00mm) |
