Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH150T-2.74-24FIXED IND 24UH 2.74A 70 MOHM TH |
1,821 | - |
|
Datasheet | SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 24 µH | ±20% | 2.74 A | - | Unshielded | 70mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|

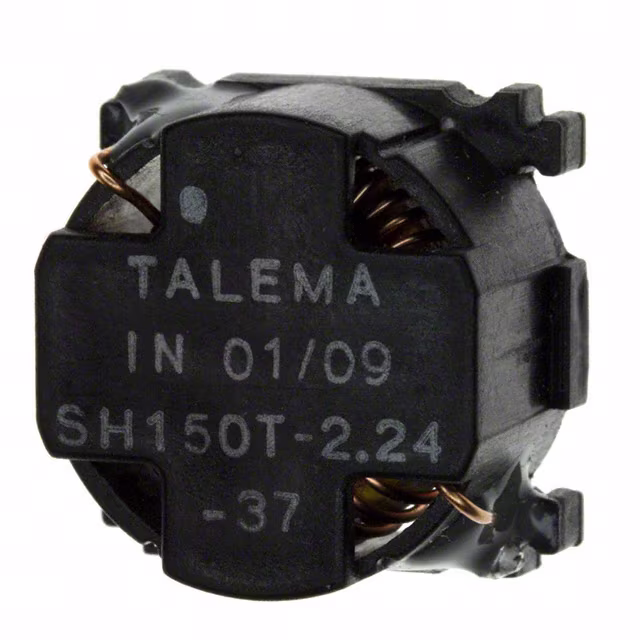

SH150T-2.24-37FIXED IND 37UH 2.24A 100 MOHM TH |
2,120 | - |
|
Datasheet | SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 37 µH | ±20% | 2.24 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|
SH150T-3.00-17FIXED IND 17UH 3A 50 MOHM TH |
4,140 | - |
|
Datasheet | SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 17 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|
SWF-1.4-220FIXED IND 220UH 1.4A 380 MOHM TH |
4,629 | - |
|
Datasheet | SW | Radial, Vertical Cylinder | Bulk | Obsolete | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.492" (12.50mm) |
|
SWV-1.4-220FIXED IND 220UH 1.4A 380 MOHM TH |
1,617 | - |
|
Datasheet | SW | Radial, Vertical | Bulk | Obsolete | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.709" (18.00mm) |
|

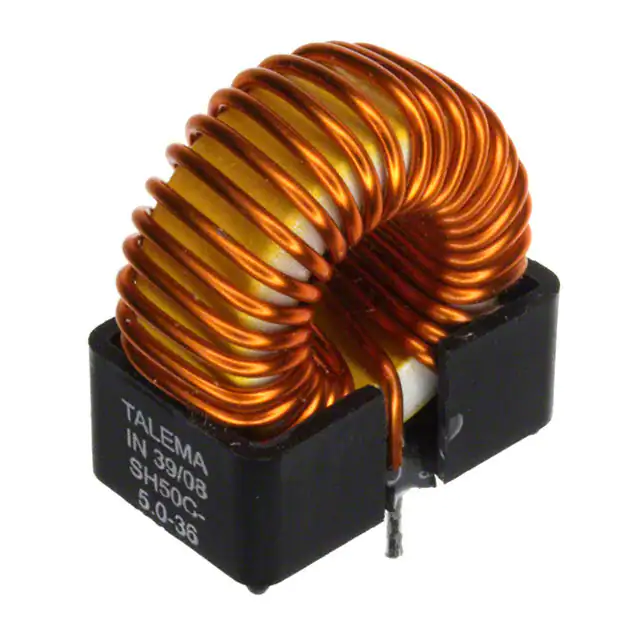

SH50C-5.0-36FIXED IND 36UH 5A 20 MOHM TH |
1,201 | - |
|
Datasheet | SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 36 µH | ±20% | 5 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
SH50V-1.4-220FIXED IND 220UH 1.4A 380 MOHM TH |
4,156 | - |
|
Datasheet | SH50 | Radial, Vertical | Tray | Active | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.709" (18.00mm) |
|
|
SH260T-5.0-15FIXED IND 15UH 5A 27 MOHM TH |
4,175 | - |
|
Datasheet | SH260 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 15 µH | ±20% | 5 A | - | Unshielded | 27mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.409" (10.40mm) |
|
SWS-0.38-118FIXED IND 118UH 380MA 1.2OHM SMD |
3,872 | - |
|
Datasheet | SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 118 µH | ±20% | 380 mA | - | Unshielded | 1.2Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.266" (6.75mm) |
|
|
SWS-0.46-78FIXED IND 78UH 460MA 800MOHM SMD |
3,585 | - |
|
Datasheet | SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 78 µH | ±20% | 460 mA | - | Unshielded | 800mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.266" (6.75mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
